Sc2400 (54AGA4NO727) - Cub Cadet Yanmar Sc Series Compact Tractor Engine Fuel Supply Parts Parts Diagram

Sc Series Compact Tractor

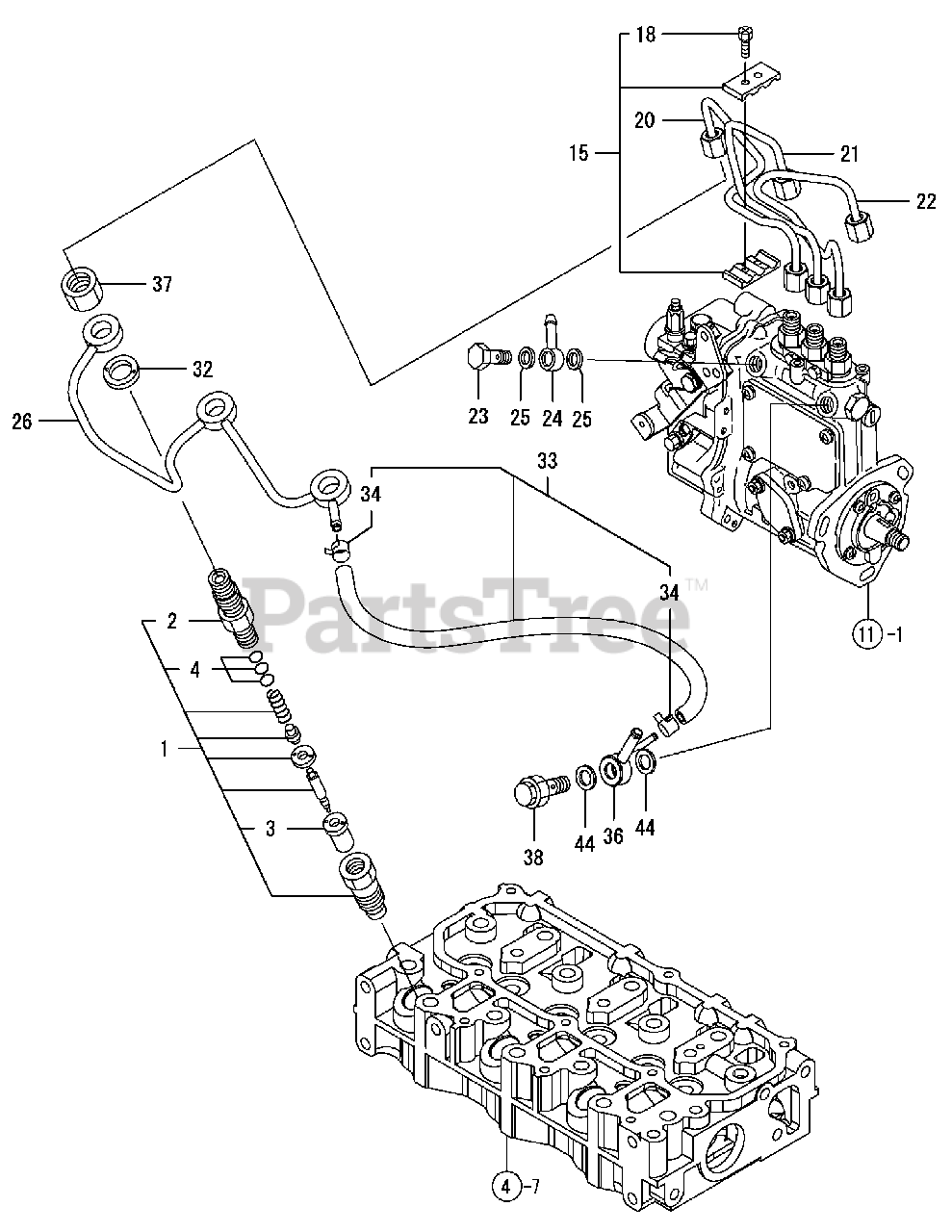

Engine Fuel Supply Parts Parts Diagram

  • Title

1

Cub Cadet CY-119515-53001

VALVE ASSY,INJECTION

$

$

Not available

2

Cub Cadet CY-118200-53010

HOLDER, NOZZLE

$

$

Not available

3

Cub Cadet CY-119515-53010

NOZZLE ASSY

$

$

Not available

4

Cub Cadet CY-129901-53800

SHIM SET

$

$

Not available

15

Cub Cadet CY-129150-59120

RETAINER, INJ. PIPE

$

$

Not available

18

Cub Cadet CY-129150-59131

BOLT M4X14,HEX.SCKT.

$

$

Not available

20

Cub Cadet CY-119546-59810

PIPE, FUEL INJECTION

$

$

Not available

21

Cub Cadet CY-119546-59820

PIPE, FUEL INJECTION

$

$

Not available

22

Cub Cadet CY-119546-59830

PIPE, FUEL INJECTION

$

$

Not available

23

Cub Cadet CY-103854-39140

BOLT, PIPE JOINT

$

$

Not available

24

Cub Cadet CY-101304-59020

JOINT 12, PIPE

$

$

Not available

25

Cub Cadet CY-22190-120002

SEAL WASHER 12

$

$

Not available

26

Cub Cadet CY-119515-59540

PIPE ASSY, RETURN

$

$

Not available

32

Cub Cadet CY-129901-59560

GASKET, RETURN

$

$

Not available

33

Cub Cadet CY-119416-59520

PIPE, FUEL RETURN

$

$

Not available

34

Cub Cadet CY-124066-59100

CLAMP 8

$

$

Not available

36

Cub Cadet CY-119840-59570

JOINT

$

$

Not available

37

Cub Cadet CY-119620-59700

NUT

$

$

Not available

38

Cub Cadet CY-119813-59950

VALVE ASSY, CHECK

$

$

Not available

44

Cub Cadet CY-22190-120002

SEAL WASHER 12

$

$

Not available

Note:4-7 Refers to Cylinder Head & Valve Cover, Ref No. 7

$

$

Not available

Note:11-1 Refers to Fuel Injection Pump, Ref No. 1

$

$

Not available
