Sc2400 (54AGA4N-727) - Cub Cadet Yanmar Sc Series Compact Tractor Battery Parts Diagram

Sc Series Compact Tractor

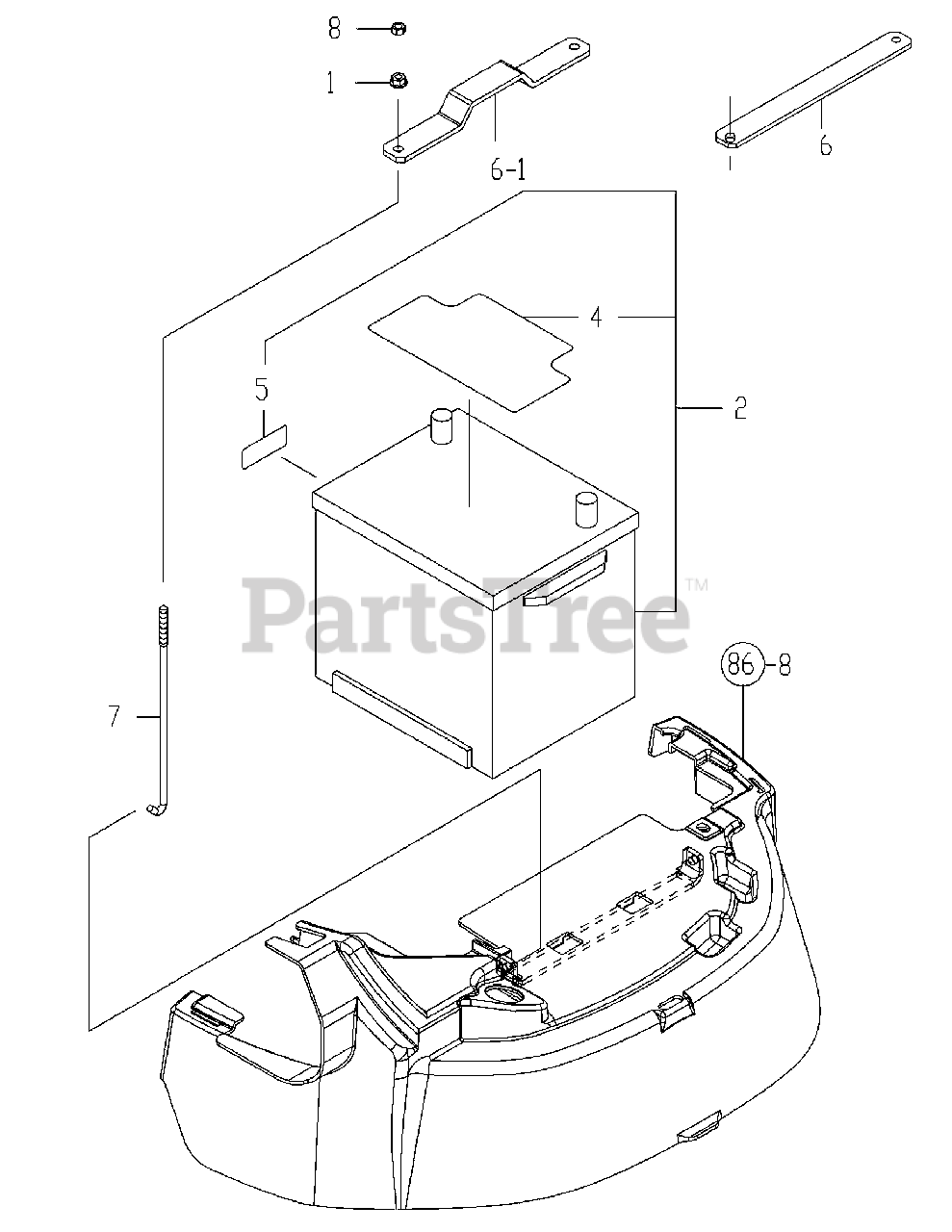

Battery Parts Diagram

  • Title

1

Cub Cadet CY-194990-22130

NUT, M6

$

$

Not available

2

Cub Cadet 925-04514

BATTERY, 26R, ASSY 540 CCA Dry

Note: use with CY-1A7880-58111. Order ref 6-1 clamp if needed. (replaces orginal battery CY-1A8160-51500) (Must be filled with acid for service, purchase locally)

$314.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CY-1A8160-51500

BATTERY, 26R, ASSY
(Superseded to 925-04514)

$314.99

$

Usually ships in 3-6 days

0

4

Cub Cadet N/A

LABEL, BATTERY

$

$

Currently unavailable

5

Cub Cadet N/A

LABEL, CA, 65, WARN

$

$

Currently unavailable

6

Cub Cadet CY-1A7880-58110

CLAMP, BATTERY
(Superseded to CY-1A7880-58111)

Note: use with CY-1A8160-51500 Battery only

$

$

Not available

6-1

Cub Cadet CY-1A7880-58111

CLAMP, BATTERY

Note: use with 925-04514 or CY-1A8160-51500 Battery

$

$

Not available

7

Cub Cadet CY-1A7880-58120

ROD, BATTERY CLAMP

$

$

Not available

8

Cub Cadet CY-26716-060002

NUT, 6

$

$

Not available

Note: 86-8 Refers to DASH BOARD B, Ref No 8

$

$

Not available
