Sc2400 (54AEA4NR727) - Cub Cadet Yanmar Sc Series Compact Tractor Power Pump Parts Diagram

Sc Series Compact Tractor

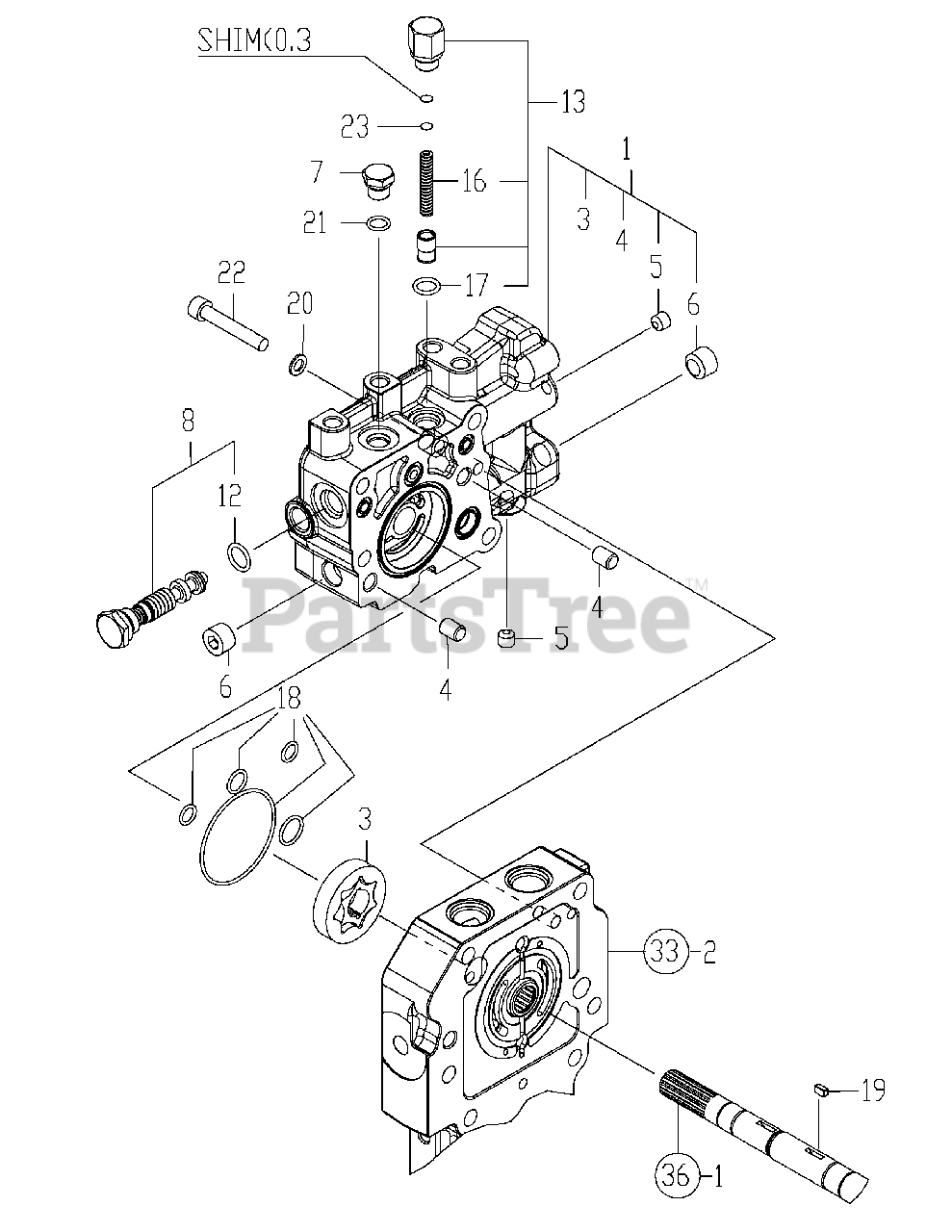

Power Pump Parts Diagram

  • Title
1

Cub Cadet CY-187K06-26400

PUMP BODY K93 CMP

$

$

Not available

$

$

Not available

4

$

$

Not available

$

$

Not available

$

$

Not available

7

Cub Cadet CY-192157-26460

PLUG, 1/2-20UNF

$

$

Not available

8

Cub Cadet CY-192157-26470

VALVE ASSY, REDUCING

$

$

Not available

12

Cub Cadet CY-24311-000140

PACKING, P 14.0

$

$

Not available

$

$

Not available

$

$

Not available

17

Cub Cadet CY-24311-000120

PACKING, P 12.0

$

$

Not available

18

$

$

Not available

$

$

Not available

20

Cub Cadet CY-22190-080002

WASHER, SEAL 8

$

$

Not available

21

Cub Cadet CY-24361-090500

PACKING, AS 905

$

$

Not available

22

$

$

Not available

23

$

$

Not available

Note:33-2 Refers to CENTER CASE, Ref No 2

$

$

Not available

Note:36-1 Refers to PUMP, Ref No 1

$

$

Not available
