Sc2400 (54AEA4N-727) - Cub Cadet Yanmar Sc Series Compact Tractor Rear Diff Gear Parts Diagram

Sc Series Compact Tractor

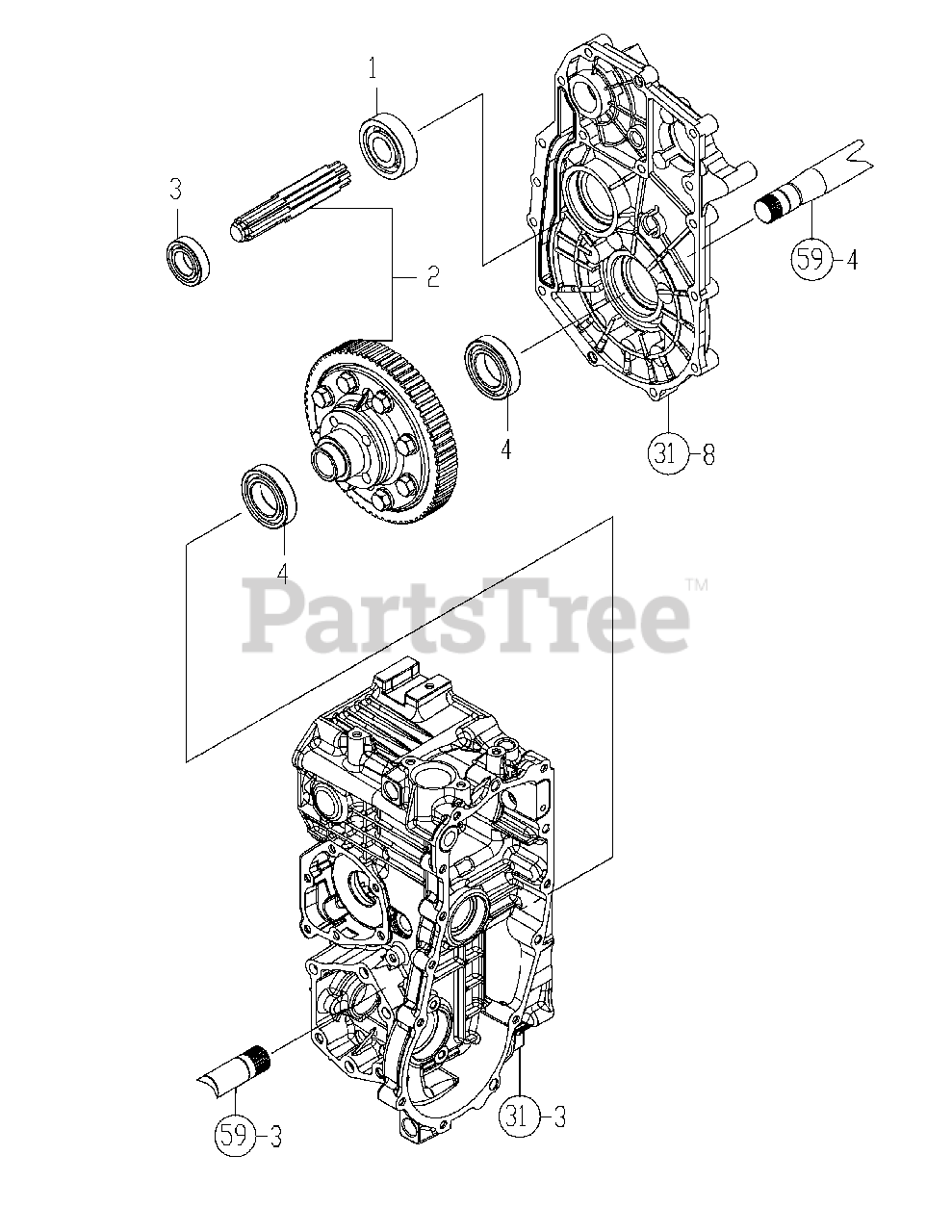

Rear Diff Gear Parts Diagram

  • Title

1

Cub Cadet CY-194555-25880

BEARING, TMB305

$

$

Not available

2

Cub Cadet CY-1A7050-33390

GEAR KIT, FINAL

$

$

Not available

3

Cub Cadet CY-1A7050-33460

BEARING, 6005SH2

$

$

Not available

4

Cub Cadet CY-24101-060074

BEARING, 6007 NTN

$

$

Not available

Note: 31-3 Refers to TRANSAXLE CASE, Ref No 3

$

$

Not available

Note: 31-8 Refers to TRANSAXLE CASE, Ref No 8

$

$

Not available

Note: 59-3 Refers to REAR AXLE SHAFT, Ref No 3

$

$

Not available

Note: 59-4 Refers to REAR AXLE SHAFT, Ref No 4

$

$

Not available
