SC 700 E (12AEN2S7756) - Cub Cadet Walk-Behind Mower (2018) Front Drive Parts Diagram

Walk-Behind Mower

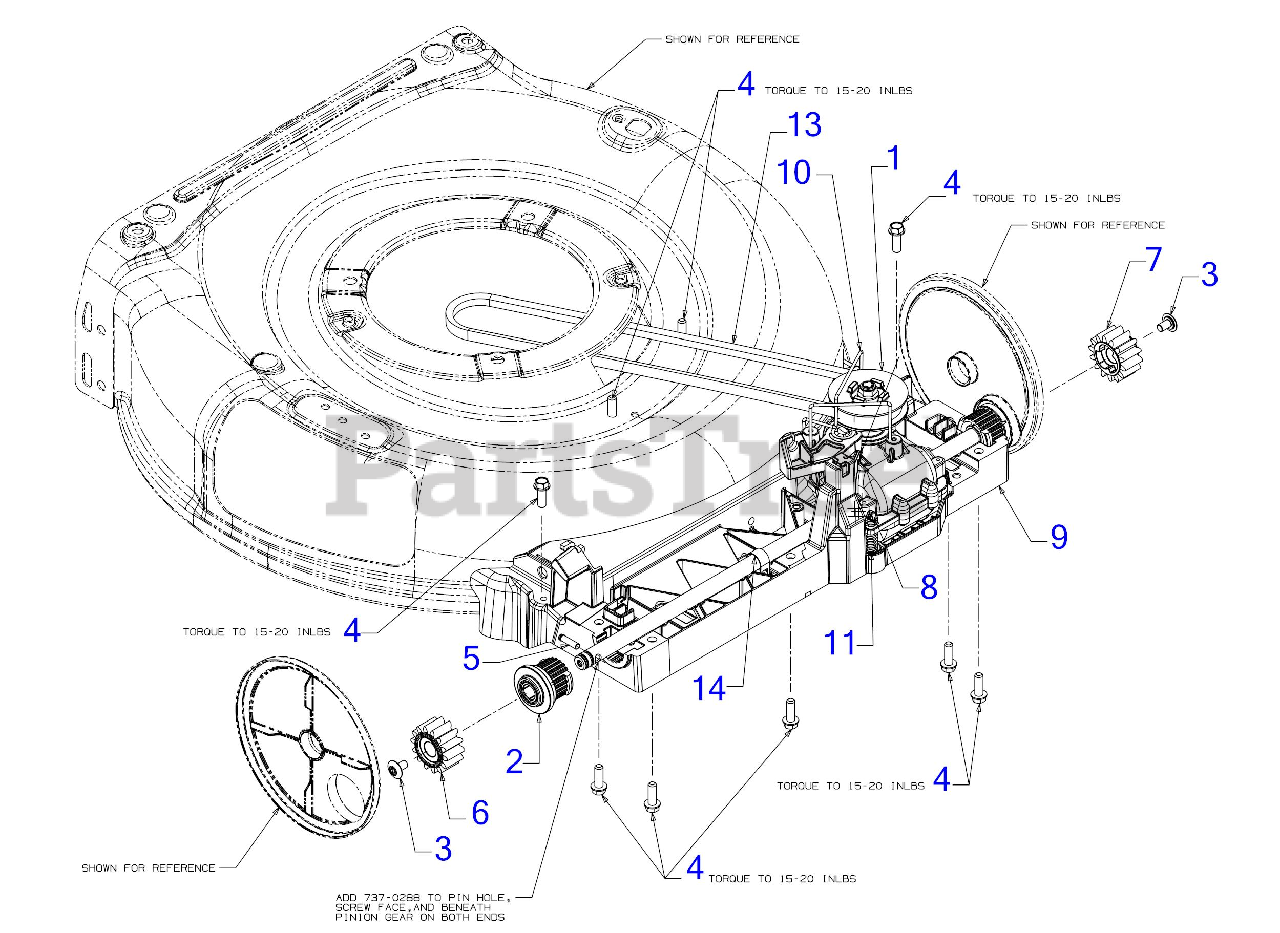

Front Drive Parts Diagram

  • Title

1

Cub Cadet 918-04881B

FORWARD TRANSMISSION ASSEMBLY
(Superseded to 918-04881C)

$148.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 721-04107A

OIL SEAL

Note: (Not Shown)

$4.99

$

In Stock, only 4 left!

0

1

Cub Cadet 741-04116

BALL BEARING

Note: (Not Shown)

$7.99

$

In Stock, only 1 left!

0

1

Cub Cadet 707-04409B

SHIFT FORK

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 911-04547

INPUT WORM SHAFT

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 941-00019

SPHERICAL BEARING ASSEMBLY

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet 741-0604A

SLEEVE BEARING

Note: (Not Shown)

$12.99

$

In Stock, Qty 12

0

3

Cub Cadet 710-04531

SCREW 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 715-04099

DOWEL PIN

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 917-04801

SPUR GEAR 14T R

$9.99

$

In Stock, only 2 left!

0

7

Cub Cadet 917-04802

SPUR GEAR 14T L

$9.49

$

In Stock, only 4 left!

0

8

Cub Cadet 731-07355

SPRING COMPRESSION

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-07789

LOWER TRAY
(Superseded to 731-07789A)

$33.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-04675A

TRANSMISSION WIRE
(Superseded to 732-04675B)

$3.99

$

In Stock, only 4 left!

0

11

Cub Cadet 732-04704

COMPRESSION SPRING

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 954-04259A

V-BELT 3L 33.68

$28.99

$

In Stock, only 1 left!

0

14

Cub Cadet 787-01793

FRONT AXLE CLIP

$4.49

$

In Stock, Qty 10

0
