SC 700 E (12AEN2S7710) - Cub Cadet Walk-Behind Mower (2021) Handle Parts Diagram

Walk-Behind Mower

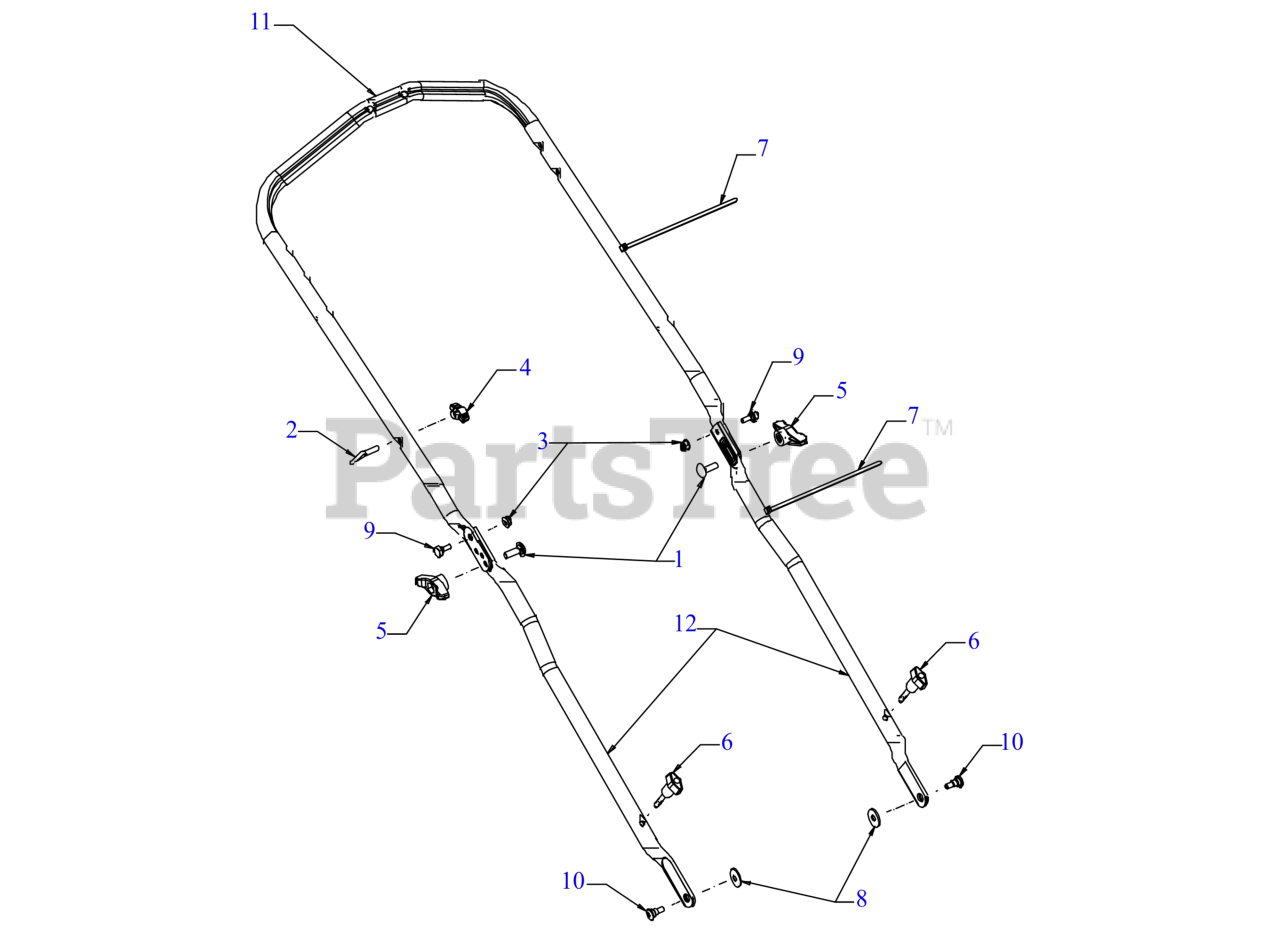

Handle Parts Diagram

  • Title
1

Cub Cadet 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, only 3 left!

0

2

Cub Cadet 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, only 4 left!

0

3

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 720-0279

HANDLE KNOB

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 720-05009

STAR KNOB- YELLOW

$4.99

$

In Stock, Qty 10

0

6

Cub Cadet 720-05066A

WING KNOB 1/4-20

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 16

0

10

Cub Cadet 738-05010A

SHOULDER SCREW .450X .188X 1/4-20

$9.49

$

In Stock, Qty 7

0

11

Cub Cadet 749-05752A

UPPER ERGO HANDLE

$32.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 749-07297

LOWER HANDLE (EZ FOLD)

Note: (Choose color when ordering)

$22.99

$

Usually ships in 3-6 days

0
