SC 700 (12A-M2M5756) - Cub Cadet Walk-Behind Mower (2018) Deck Assembly Parts Diagram

Walk-Behind Mower

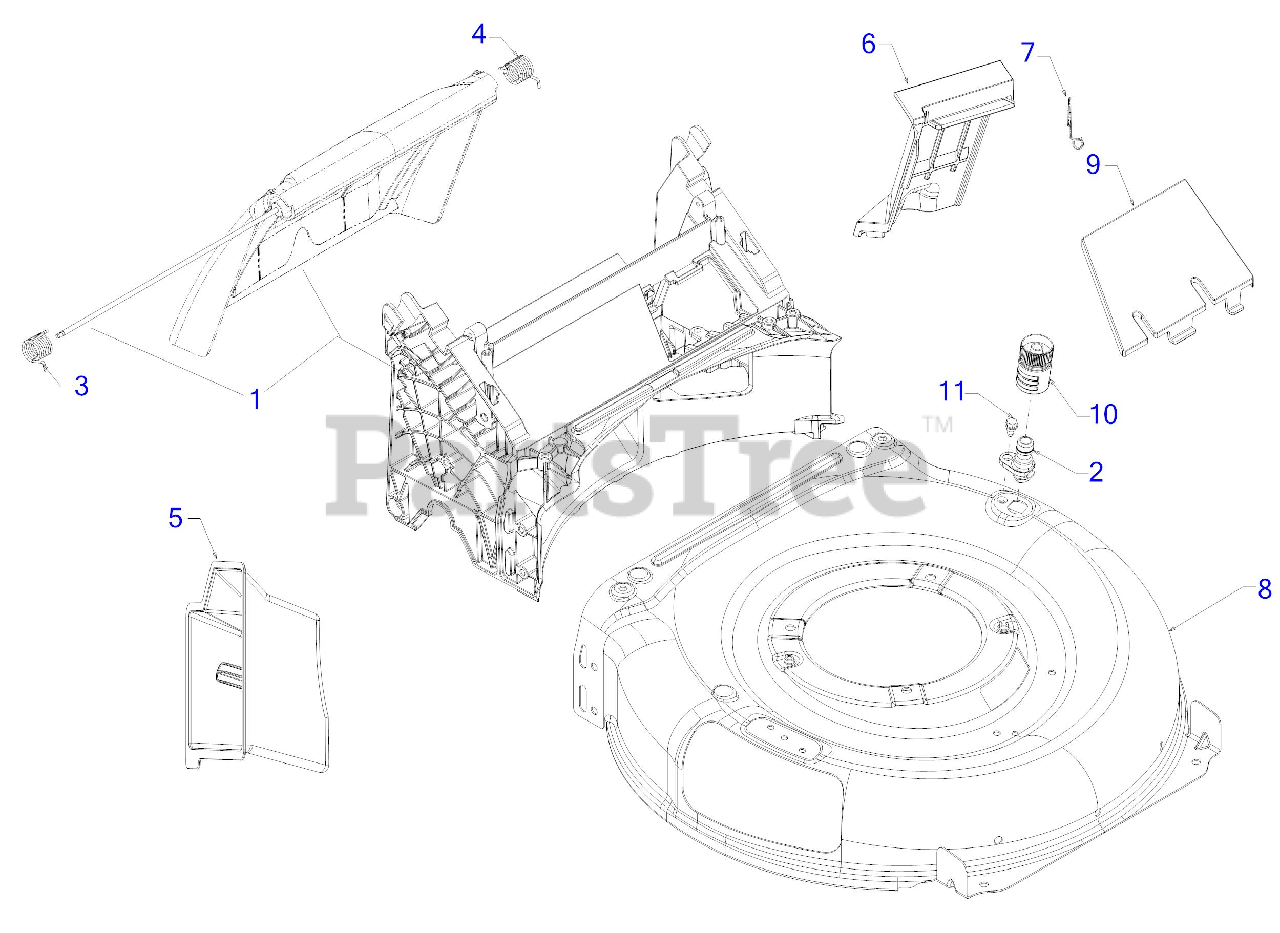

Deck Assembly Parts Diagram

  • Title
1

Cub Cadet 631-05046C

REAR BAFFLE ASSEMBLY

$94.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 712-05020

SQUARE LOCK NUT 1/4X20

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

4

Cub Cadet 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet 731-09208

MULCH PLUG

$15.99

$

In Stock, only 1 left!

0

6

Cub Cadet 731-09264

TRANSMISSION COVER (FRONT)

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 732-05530

CABLE CLIP

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-04744

SCREW #12-16 x 1

Note: (Not Shown)

$5.49

$

In Stock, Qty 11

0

8

Cub Cadet 787-01872C

21" DECK (3N1)

Note: (Choose Color When Ordering)

Variations

Cub Cadet 787-01872C-4021

DECK-21" 3 IN 1 - CUB YELLOW 2 (4021)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01872C-0638

Mower Deck, 21" 3-in-1 - MTD/TROY-BILT RED (0638)

$143.99

$

In Stock, only 1 left!

0

Cub Cadet 787-01872C-0606

DECK-21" 3 IN 1 - MAJESTIC ORANGE (0606)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01872C-0637

DECK-21" 3 IN 1 - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01872C-0650

DECK-21" 3 IN 1 - RED METALLIC (0650)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01872C-0691

DECK-21" 3 IN 1 - BLACK JACK (0691)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01872C-0709

DECK-21" 3 IN 1 - MASTERCRAFT GREEN (0709)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01872C-4033

DECK-21" 3 IN 1 - FLINT MICA (4033)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01872C-4044

DECK-21" 3 IN 1 - CRAFTSMAN RED (4044)

$143.99

$

Usually ships in 3-6 days

0

$116.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-09265

TRANSMISSION COVER (REAR)

$29.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

11

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0
