SC 621 E (12AE999M101) - Cub Cadet Walk-Behind Mower Engine (1999) Flywheel, Electrical & Blower Housing Parts Diagram

Walk-Behind Mower Engine

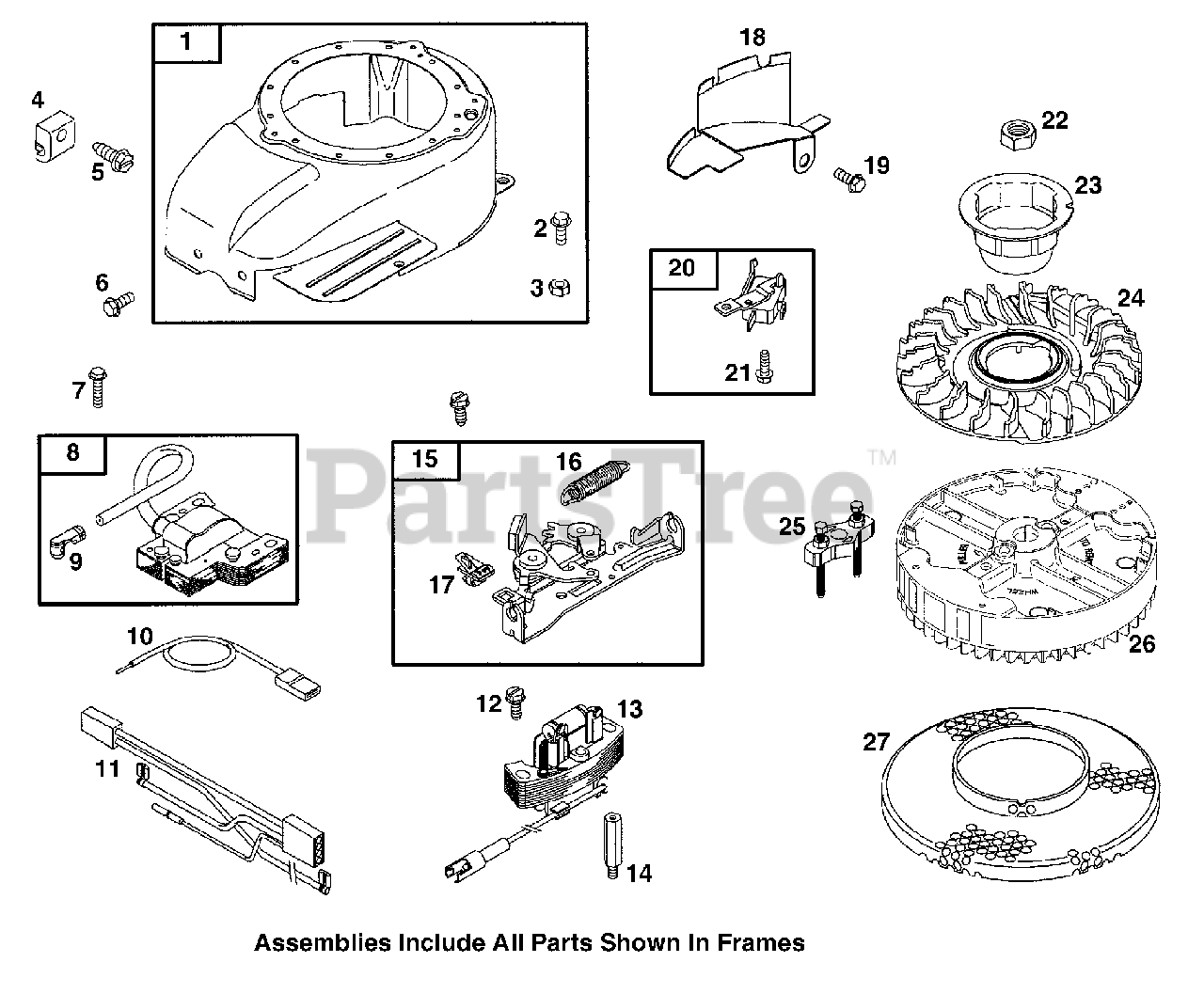

Flywheel, Electrical & Blower Housing Parts Diagram

  • Title
1

Cub Cadet BS-499677

Blower Housing

$

$

Not available

2

Cub Cadet BS-94904

Hex Screw
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-94908

Hex Screw
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

4

Cub Cadet BS-213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet BS-94882

Slotted Hex Screw

$

$

Not available

6

Cub Cadet BS-94744

Hex Screw
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-94731

Hex Screw

$

$

Not available

8

Cub Cadet BS-802574

Magneto Armature
(Superseded to BS-796964)

$55.99

$

In Stock, Qty 10

0

9

Cub Cadet BS-493880

Cable Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-497833

Wiring Stop
(Superseded to BS-692390)

$

$

Not available

11

Cub Cadet BS-493380

Wiring Harness

Note: (Model SC621E Only)

$

$

Not available

12

Cub Cadet BS-94512

Slotted Hex Screw
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-492841

Alternator
(Superseded to BS-691991)

Note: (Model SC621E Only)

$118.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-94510

Stud
(Superseded to BS-691094)

Note: (Model SC621E Only)

$10.99

$

In Stock, only 2 left!

0

15

Cub Cadet BS-493442

Brake
(Superseded to BS-796387)

$

$

Not available

16

Cub Cadet BS-262640

Brake Spring
(Superseded to BS-691831)

$10.99

$

In Stock, only 2 left!

0

17

Cub Cadet BS-396847

Stop Switch
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

18

Cub Cadet BS-224511

Flywheel Guard
(Superseded to BS-793756)

Note: (Models S621 & SC621 Only)

$10.99

$

In Stock, only 3 left!

0

19

Cub Cadet BS-94744

Hex Screw
(Superseded to BS-691108)

Note: (Models S621 & SC621 Only)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet BS-499421

Interlock Switch

Note: (Model SC621E Only)

$31.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-93758

Hex Screw

Note: (Model SC621E Only)

$

$

Not available

22

Cub Cadet BS-94877

Flywheel Nut
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 12

0

23

Cub Cadet BS-225121

Flywheel Cup
(Superseded to BS-695161)

$37.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-281657

Flywheel Fan
(Superseded to BS-691346)

$26.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

26

Cub Cadet BS-498875

Flywheel
(Superseded to BS-697610)

$199.99

$

In Stock, only 1 left!

0

27

Cub Cadet BS-225133

Rotating Screen

Note: (Models S621 & SC621 Only)

$

$

Not available
