SC 621 E (12AE999M101) - Cub Cadet Walk-Behind Mower (1999) Handle Parts Diagram

Walk-Behind Mower

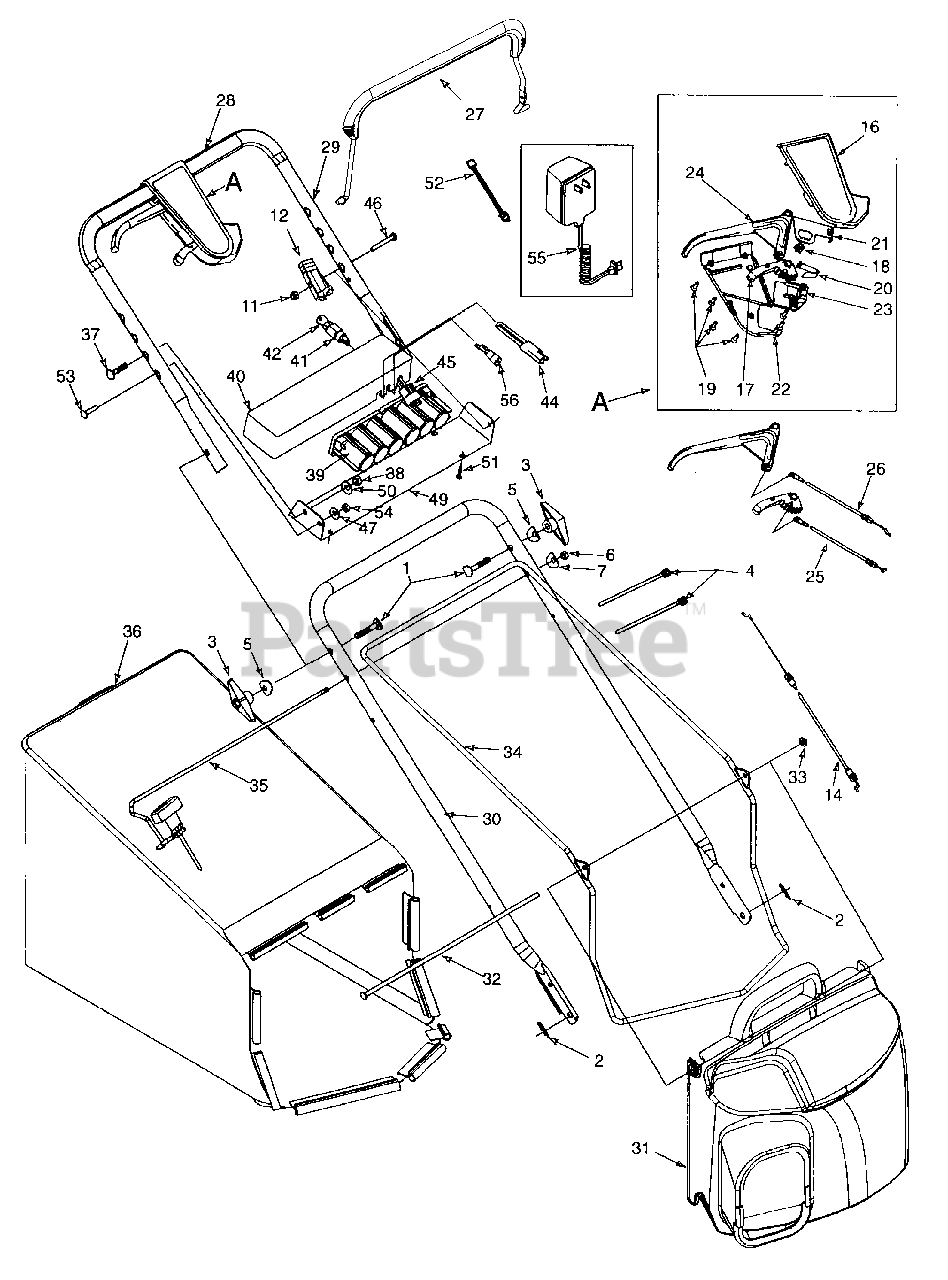

Handle Parts Diagram

  • Title

1

Cub Cadet 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0241

Knob Assembly 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0240

Strap 4.3" Lg.
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0451

Wash. Sad. .320 ID x .830 OD

$4.49

$

In Stock, Qty 11

0

6

Cub Cadet 720-0270

Handle Knob 1/4-20

$

$

Not available

7

Cub Cadet 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 712-0324

Nut 1/4-20 Top Lock Nut Insert

$3.99

$

In Stock, Qty 16

0

12

Cub Cadet 646-0875

Control Cable Housing
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

14

Cub Cadet 746-0912

Control Cable 44" Lg.
(Superseded to 946-0912)

$26.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

Cub Cadet 731-0924

6-Speed Shift Lever

$

$

Not available

18

Cub Cadet 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

Cub Cadet 710-1667

C Sunk Tap Screw #10-16 x .625
(Superseded to 710-1667A)

$4.49

$

In Stock, Qty 13

0

20

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

Cub Cadet 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

Cub Cadet 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

Cub Cadet 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

26

Cub Cadet 746-0713

Self Prop. Cable, 52"
(Superseded to 946-0713A)

$29.99

$

In Stock, only 1 left!

0

27

Cub Cadet 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

28

Cub Cadet 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (2 Req'd.)

$7.49

$

In Stock, only 3 left!

0

29

Cub Cadet 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

Cub Cadet 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

30

Cub Cadet 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

Cub Cadet 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

31

Cub Cadet 631-0071

Grassbag Cover

$103.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-0937

Frame (Grassbag)
(Superseded to 747-0937-0637)

Variations

Cub Cadet 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-0940A

Rod, Support
(Superseded to 747-0940A-0637)

Variations

Cub Cadet 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 664-0076

Grassbag
(Superseded to 964-0076)

$98.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-1250

Cur. Carr. Bolt 5/16-18 x 1" Lg.

$4.99

$

In Stock, only 3 left!

0

38

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 725-1276

Battery Pack - 12 Volt
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 731-0891A

Battery Tray

$

$

Not available

41

Cub Cadet 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

42

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

44

Cub Cadet 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

45

Cub Cadet 625-0021

Wire Harness

$

$

Not available

46

Cub Cadet 710-1270

Hex Bolt 1/4-20 x 1.3" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0270

Bell Wash 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

Cub Cadet 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 736-0242

Bell Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 710-0969

Truss Mch. Tap Scr. 1"

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 725-1538

Harness Ext.

$

$

Not available

53

Cub Cadet 710-0111

Scr. 1/4-20 x 1.25

$3.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

55

Cub Cadet 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

56

Cub Cadet 725-1428

Fuse Holder
(Superseded to 925-1428)

$

$

Not available

Cub Cadet 725-0298

Fuse 75 Amp
(Superseded to 925-0298)

Note: (Not Shown)

$

$

Not available
