SC 621 E (12AE999M100) - Cub Cadet Walk-Behind Mower Engine (2000) Engine Assembly (Models SC621 & SC621E) Parts Diagram

Walk-Behind Mower Engine

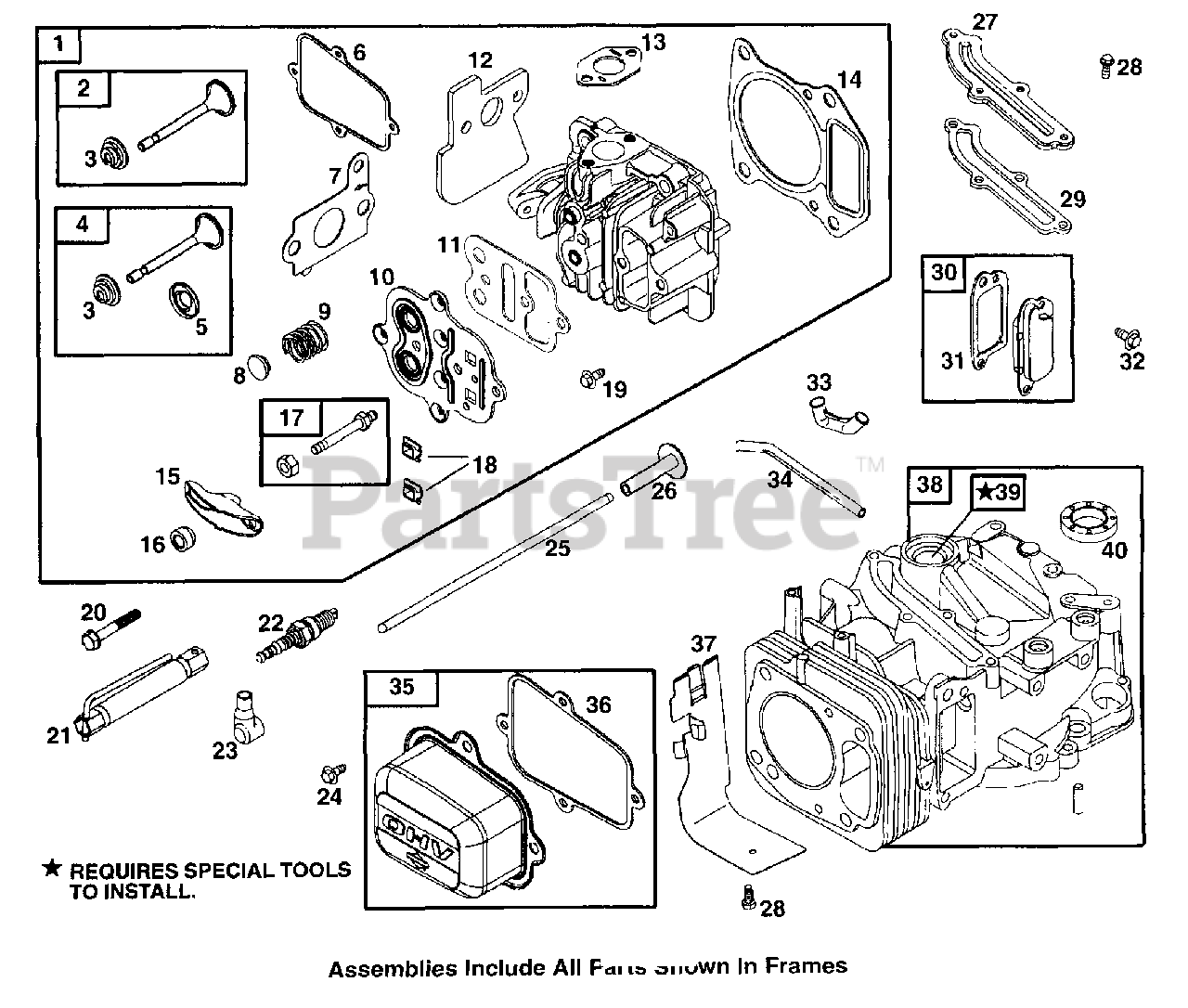

Engine Assembly (Models SC621 & SC621E) Parts Diagram

  • Title

1

Cub Cadet BS-692800

Cylinder Head

$

$

Not available

2

Cub Cadet BS-499642

Exhaust Valve

$35.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-93312

Valve Retainer
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

4

Cub Cadet BS-499641

Intake Valve
(Superseded to BS-795443)

$27.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-498592

Valve Seal
(Superseded to BS-692044)

$

$

Not available

6

Cub Cadet BS-273241

Rocker Cover Gasket
(Superseded to BS-691890)

$7.99

$

In Stock, only 4 left!

0

7

Cub Cadet BS-692668

Intake Gasket

$4.49

$

In Stock, only 3 left!

0

8

Cub Cadet BS-263131

Valve Cap
(Superseded to BS-691300)

$9.49

$

In Stock, Qty 9

0

9

Cub Cadet BS-263149

Valve Spring

$

$

Not available

10

Cub Cadet BS-225325

Cylinder Head Plate
(Superseded to BS-696268)

$

$

Not available

11

Cub Cadet BS-273346

Plate Gasket
(Superseded to BS-694088)

$8.49

$

In Stock, Qty 16

0

12

Cub Cadet BS-692799

Carburetor Spacer

$14.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-273348

Exhaust Gasket
(Superseded to BS-691893)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-273240

Cylinder Head Gasket
(Superseded to BS-697230)

$9.99

$

In Stock, Qty 6

0

15

Cub Cadet BS-225246

Rocker Arm
(Superseded to BS-691230)

$9.49

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-263108

Rocker Arm Ball

$

$

Not available

17

Cub Cadet BS-499756

Rocker Arm Stud
(Superseded to BS-694543)

$

$

Not available

18

Cub Cadet BS-281621

Push Rod Guide
(Superseded to BS-691343)

$9.99

$

In Stock, only 2 left!

0

19

Cub Cadet BS-94744

Hex Screw
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet BS-95049

Hex Screw
(Superseded to BS-691137)

$

$

Not available

21

Cub Cadet BS-19374

Spark Plug Wrench
(Superseded to BS-19576S)

$5.99

$

In Stock, only 1 left!

0

22

Cub Cadet BS-499608

Spark Plug

$

$

Currently unavailable

23

Cub Cadet BS-66538

Spark Plug Boot
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 7

0

24

Cub Cadet BS-94744

Hex Screw
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

25

Cub Cadet BS-498597

Push Rod
(Superseded to BS-692045)

$11.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-262679

Valve Tappet
(Superseded to BS-690977)

$7.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-224328

Breather Passage Cover

$

$

Not available

28

Cub Cadet BS-94515

Hex Screw

$

$

Not available

29

Cub Cadet BS-272238

Breather Passage Gasket
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

31

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

32

Cub Cadet BS-94955

Hex Screw

$

$

Not available

33

Cub Cadet BS-281736

Grommet
(Superseded to BS-692937)

$9.49

$

In Stock, Qty 14

0

34

Cub Cadet BS-23212

Breather Tube

$

$

Currently unavailable

35

Cub Cadet BS-499624

Rocker Cover

$37.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-273241

Rocker Cover Gasket
(Superseded to BS-691890)

$7.99

$

In Stock, only 4 left!

0

37

Cub Cadet BS-225366

Cylinder Shield

$

$

Not available

38

Cub Cadet BS-499678

Cylinder Assembly

$

$

Not available

39

Cub Cadet BS-399269

Bushing/Seal Kit

$21.99

$

In Stock, only 1 left!

0

40

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

Cub Cadet BS-692745

Short Block

$205.99

$

Usually ships in 2-12 days

0
