SC 621 E (12A-E969F100) - Cub Cadet Walk-Behind Mower Engine (1997) Starter Assembly Parts Diagram

Walk-Behind Mower Engine

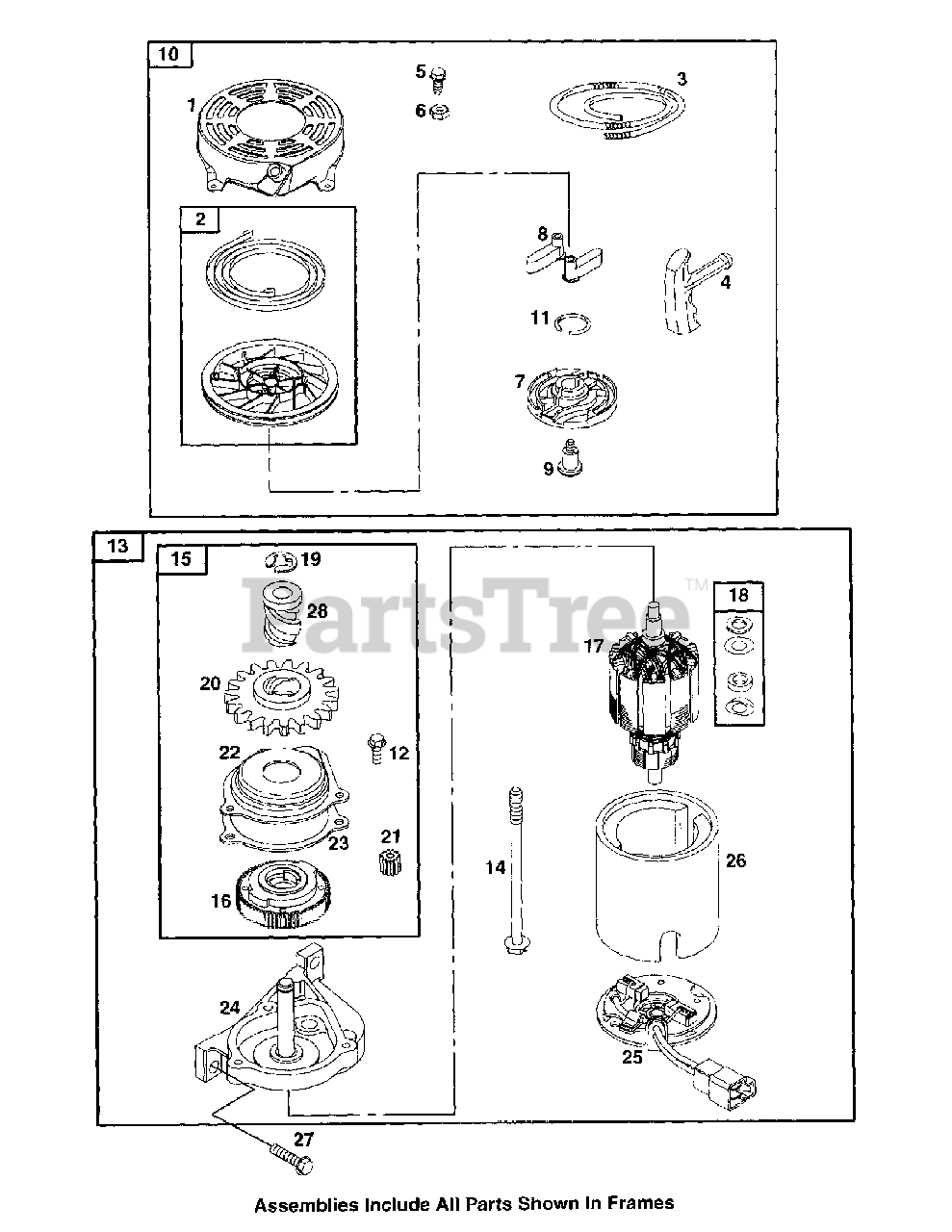

Starter Assembly Parts Diagram

  • Title
1

Cub Cadet BS-497440

Rewind Starter Housing
(Superseded to BS-691421)

$64.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-498144

Starter Pulley

$19.99

$

In Stock, Qty 20+

0

3

Cub Cadet BS-280399

Starter Rope (Cut to 88-5/8")
(Superseded to BS-280399S)

$5.99

$

In Stock, Qty 8

0

4

Cub Cadet BS-281434

Starter Rope Grip
(Superseded to BS-281434S)

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet BS-94904

Hex Screw
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet BS-94908

Hex Nut
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

7

Cub Cadet BS-281503

Pawl Friction Plate
(Superseded to BS-692299)

$4.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-281505

Ratchet Pawl
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 13

0

9

Cub Cadet BS-94943

Shoulder Screw
(Superseded to BS-691696)

$11.99

$

In Stock, Qty 5

0

10

Cub Cadet BS-497680

Rewind Starter

$49.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-263073

Friction Spring
(Superseded to BS-691855)

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet BS-94515

Hex Screw

$

$

Not available

13

Cub Cadet BS-494233

Starter Motor (Model SC621E Only)
(Superseded to BS-799045)

$198.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-94051

Slotted Hex Screw (Model SC621E Only)

$

$

Not available

15

Cub Cadet BS-494147

Starter Drive (Model SC621E Only)

$33.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-394815

Drive Clutch (Model SC621E Only)

$

$

Not available

17

Cub Cadet BS-492921

Starter Armature (Model SC621E Only)

$

$

Not available

18

Cub Cadet BS-492919

Shim Set (Model SC621E Only)

$2.49

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-93941

Retainer (Model SC621E Only)
(Superseded to BS-795094)

$6.99

$

In Stock, only 1 left!

0

20

Cub Cadet BS-281127

Pinion Gear (Model SC621E Only)
(Superseded to BS-795099)

$21.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-261606

Pinion Gear (Model SC621E Only)

$

$

Not available

22

Cub Cadet BS-224262

Gear Cover (Model SC621E Only)

$

$

Not available

23

Cub Cadet BS-272201

Cover Gasket (Model SC621E Only)
(Superseded to BS-692352)

$6.49

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-492335

Drive Cap (Model SC621E Only)
(Superseded to BS-690782)

$85.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-492922

End Cap (Model SC621E Only)

$

$

Not available

26

Cub Cadet BS-492920

Starter Housing (Model SC621E Only)

$

$

Not available

27

Cub Cadet BS-94974

Hex Screw (Model SC621E Only)
(Superseded to BS-691127)

$4.49

$

In Stock, Qty 13

0

28

Cub Cadet BS-281125

Starter Spline (Model SC621E Only)
(Superseded to BS-795098)

$11.99

$

Usually ships in 2-12 days

0
