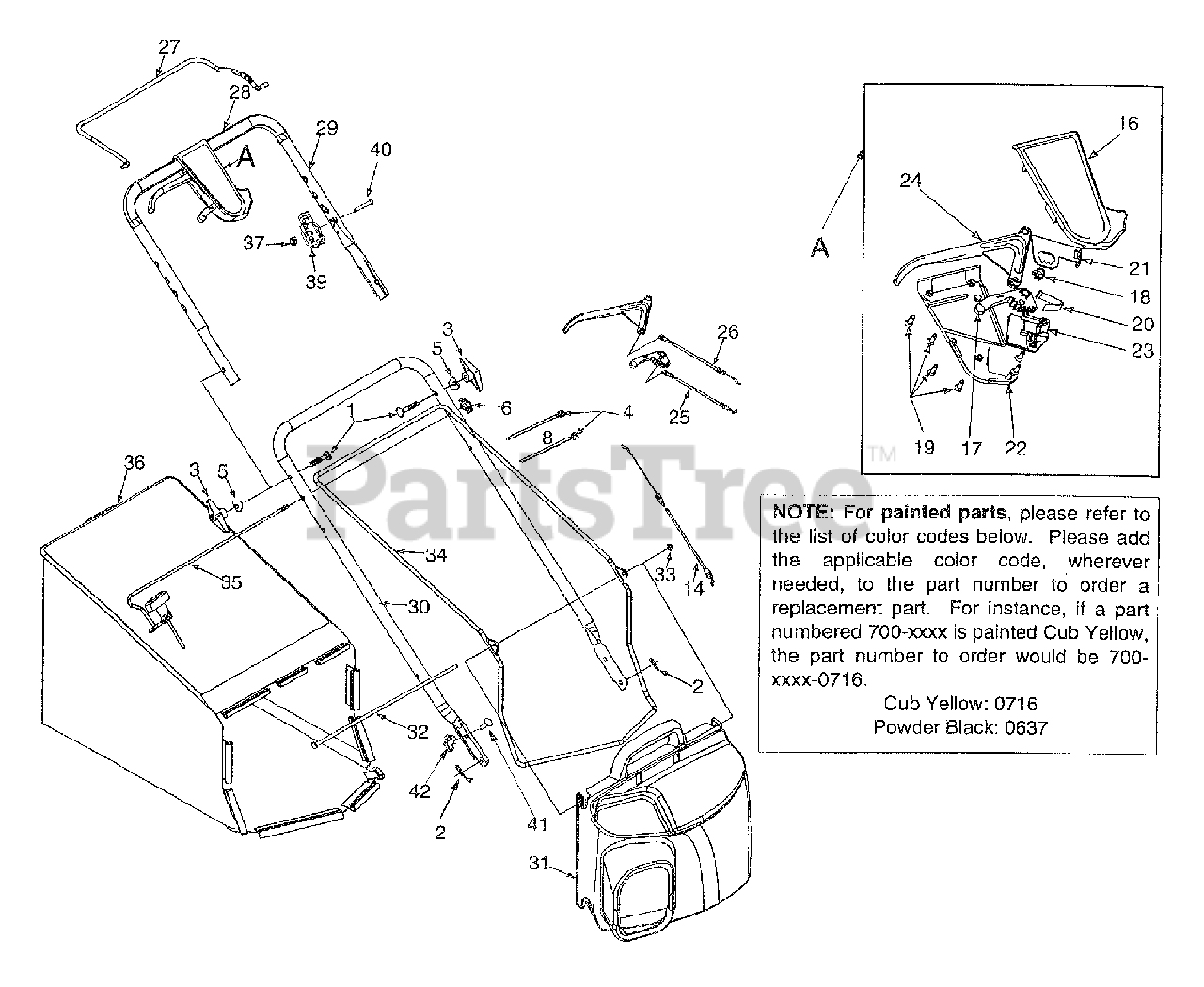

SC 621 (12B-999I100) - Cub Cadet Walk-Behind Mower (2001) Handle & Bag Parts Diagram

Walk-Behind Mower

Handle & Bag Parts Diagram

  • Title

1

Cub Cadet 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 714-0104

Cotter Pin .072 x 1.12 L.g.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0241

Wingknob 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0240

Strap 4.3 Lg.
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 736-0451

Wash. Sad. 320 ID x .830 OD

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 720-0279

Handle Knob, 1/4-20

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1270

Screw 1/4-20 x 1.3

$4.49

$

Usually ships in 3-6 days

0

?11

Cub Cadet 712-0324

Nut 1/4-20 Top Lock Nut Insert

$3.99

$

In Stock, Qty 17

0

?12

Cub Cadet 746-0883

Housing, Control Cable

$16.99

$

In Stock, only 4 left!

0

14

Cub Cadet 746-0912

Control Cable 44" Lg.
(Superseded to 946-0912)

$26.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

Cub Cadet 731-0924

6 Speed Shift Lever

$

$

Not available

18

Cub Cadet 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

Cub Cadet 710-1667

C Sunk Tap Screw #10-16 x .625
(Superseded to 710-1667A)

$4.49

$

In Stock, Qty 13

0

20

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

Cub Cadet 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

Cub Cadet 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

Cub Cadet 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

26

Cub Cadet 746-0713

Self Prop. Cable 52"
(Superseded to 946-0713A)

$29.99

$

In Stock, only 1 left!

0

27

Cub Cadet 647-0004

Deluxe Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

28

Cub Cadet 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

29

Cub Cadet 749-0439C

Upper Handle
(Superseded to 749-0439E-0637)

Variations

Cub Cadet 749-0439C-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

30

Cub Cadet 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

Cub Cadet 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

31

Cub Cadet 631-0071

Grassbag Cover

$103.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-0937

Frame - Grassbag
(Superseded to 747-0937-0637)

Variations

Cub Cadet 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-0940A

Rod, Support
(Superseded to 747-0940A-0637)

Variations

Cub Cadet 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 664-0104

Grassbag
(Superseded to 964-0076A)

$98.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 712-0324

Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 17

0

39

Cub Cadet 746-0883

Control Box

$16.99

$

In Stock, only 4 left!

0

40

Cub Cadet 710-1270

Screw 1/4-20 x 1.31

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-0703

Carriage Bolt

$4.49

$

In Stock, Qty 15

0

42

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0
