SC 621 (12A-969I100) - Cub Cadet Walk-Behind Mower (1998) Deck Assembly Parts Diagram

Walk-Behind Mower

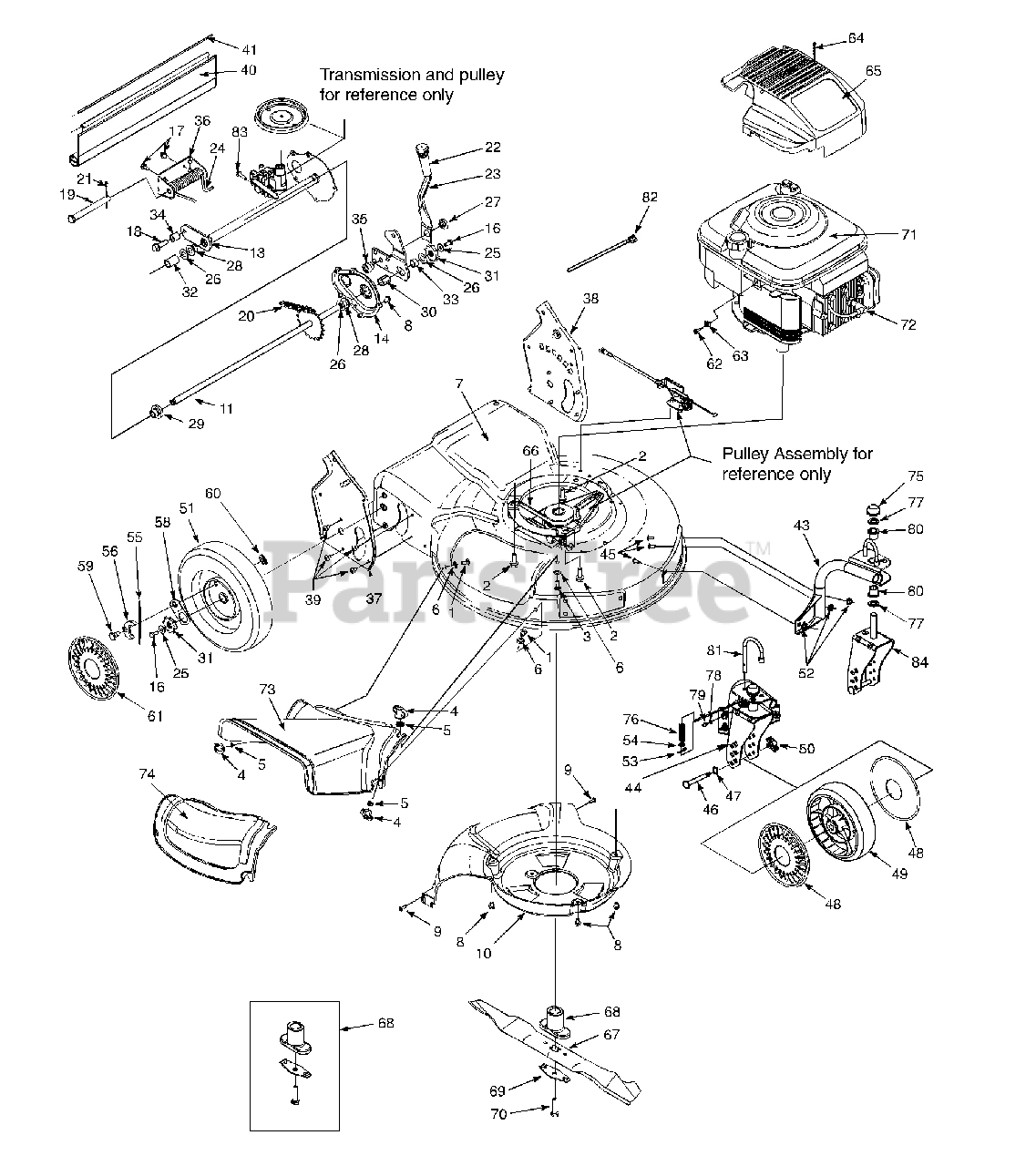

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0134

Scr. Carr. 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0654A

Scr. TT:3/8-18:1.00

$4.49

$

In Stock, only 4 left!

0

3

Cub Cadet 710-0703

Scr. 1/4-20 x .750

$4.49

$

In Stock, Qty 15

0

4

Cub Cadet 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 726-0233

Nut, Push .25 I.D. x .50 O.D.

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0204

Wash. Fl. .334 I.D.x .62 x.03

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 782-0046-0498

Deck - 21"
(Superseded to 782-0078B-0716)

$

$

Not available

8

Cub Cadet 710-0653

Scr. TT. 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

9

Cub Cadet 710-0969

Scr. Truss Machine TT

Note: Code N

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

11

Cub Cadet 638-0012

Rear Axle Ass'y
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

?12

Cub Cadet 782-0566

Pivot Arm Ass'y
(Superseded to 782-0566B-0637)

$44.99

$

In Stock, only 1 left!

0

13

Cub Cadet 682-7526

Trans. Axle Ass'y
(Superseded to 682-7526-0637)

Variations

Cub Cadet 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 682-7528

Chain Cover Ass'y
(Superseded to 682-7528-0637)

Variations

Cub Cadet 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0896

Scr. AB 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1315

Scr. 3/8 116 x .25

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 711-0835

Clevis Pin .50 Dia. x 4.82
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

20

Cub Cadet 713-0453

Chain-Endls.
(Superseded to 913-0453)

$12.99

$

In Stock, only 1 left!

0

21

Cub Cadet 714-0474

Cotter Pin .125 O.D. x .75

$4.99

$

In Stock, Qty 13

0

22

Cub Cadet 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

23

Cub Cadet 732-0803A

Spring Lever

Note: Code N

$15.99

$

In Stock, Qty 16

0

24

Cub Cadet 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0270

Bell Wash. .285 x .75 x .082

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0369

Fl. Wash.. 508 I.D.

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 738-0529

Nut Shld. .825 Dia. x .165
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

28

Cub Cadet 741-0324

Hx.Flg. Brg..506 I.D. x .590
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

29

Cub Cadet 741-0522

Hx.Flg. Brg. .506 I.D. x.715

$

$

Not available

30

Cub Cadet 741-0978

Hx. Slv. Brg. .504 I.D. x .830

$4.99

$

In Stock, only 3 left!

0

31

Cub Cadet 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 16

0

32

Cub Cadet 750-0151

Spa. .550 I.D. x /750 O.D.
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

33

Cub Cadet 750-0515

Spa. .51 .D. x .70 O.D. x 38

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 750-0807

Spa. .385 x .624 x .700

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 750-1056

Shld. Spa. .385 I.D. X .715
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 782-0568

Brkt. - Ht. Adj. Spring
(Superseded to 782-0568B-0637)

Variations

Cub Cadet 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 682-3052-0498

Handle Brkt. Assembly R.H.

$

$

Not available

38

Cub Cadet 682-3053-0498

Handle Brkt. Assembly L.H.

$

$

Not available

39

Cub Cadet 710-1348

Scr. AB 1/4-14 x .500

$6.99

$

In Stock, only 3 left!

0

40

Cub Cadet 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

41

Cub Cadet 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

?42

Cub Cadet 682-9020A-0498

Caster Ass'y RH
(Superseded to 682-9020A-0716)

Note: Code N; (Not Shown)

$

$

Not available

43

Cub Cadet 682-9021A-0498

Caster Ass'y L.H.
(Superseded to 682-9021A-4021)

Note: Code N

$125.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 682-9024A-0498

Brkt. Ass'y, Wheel Caster RH

$

$

Currently unavailable

45

Cub Cadet 710-0260

Carr. Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 711-1146

Caster Axle .374 Dia. x 2.50"
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

47

Cub Cadet 736-0232

Wave Wash.

$4.99

$

In Stock, Qty 12

0

48

Cub Cadet 731-1888

Hub Cap Whole Gray

$10.99

$

In Stock, Qty 20+

0

49

Cub Cadet 734-1857

Wheel 7 x 2, Caster Black

Note: Code N

$46.99

$

In Stock, Qty 8

0

50

Cub Cadet 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 734-1838

Wheel 9 x 2 Link Gray,
(Superseded to 734-1981A)

$46.99

$

In Stock, Qty 12

0

52

Cub Cadet 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 714-0104

Pin, Cotter .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0264

Fl. Wash. .330 x .830 x .06

$6.99

$

In Stock, only 1 left!

0

55

Cub Cadet 10622B

Spring, Ratchet, Plastic

$5.49

$

In Stock, Qty 20+

0

56

Cub Cadet 748-0381

Pawl - R.H.

$11.99

$

Usually ships in 3-6 days

0

?57

Cub Cadet 748-0188B

Pawl - L.H.
(Superseded to 948-0188B)

Note: (Not shown)

$

$

Not available

58

Cub Cadet 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

59

Cub Cadet 738-0137A

Shld. Scr. .340 x .285

$10.99

$

In Stock, Qty 10

0

60

Cub Cadet 712-0414

Top Lock Weld Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 731-0982A

Hubcap - Gray
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

62

Cub Cadet 710-1237

Screw .620 Hx. Slt. Wsh.

$4.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 751B213146

Casing Clamp, Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

64

Cub Cadet 710-1256

Scr. Hi-Lo #10 x 1.25

$5.99

$

In Stock, only 2 left!

0

65

Cub Cadet 751B281394

Shroud - Gray
(Superseded to 751B281451)

$

$

Not available

66

Cub Cadet 754-0460

Belt
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 20+

0

67

Cub Cadet 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

68

Cub Cadet 753-0609

Blade Adapter Kit

$40.99

$

In Stock, Qty 12

0

69

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

70

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, only 1 left!

0

71

Engine

$

$

Not available

72

Cub Cadet 735-0639

Spark Plug Insulator

$

$

Not available

73

Cub Cadet 731-1832

Side Discharge Chute

$

$

Not available

74

Cub Cadet 731-1833

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

75

Cub Cadet 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

77

Cub Cadet 736-0366

Fl. Wash. 5/8 O.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 736-0931

Fl. Wash. .203 I.D. x .403

$4.99

$

In Stock, only 1 left!

0

79

Cub Cadet 737-3000

Fitting - Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

80

Cub Cadet 741-0685

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

81

Cub Cadet 747-0924

Lock Pin: Front Wheel

$20.99

$

In Stock, only 1 left!

0

82

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

83

Cub Cadet 710-0604

Hex Scr. 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

84

Cub Cadet 682-9026-0498

Brkt Ass'y, Wheel Caster LH
(Superseded to 682-9026A-4021)

Note: Code N

$85.99

$

Usually ships in 3-6 days

0
