SC 621 (12A-969I100) - Cub Cadet Walk-Behind Mower (1998) Cable Parts Diagram

Walk-Behind Mower

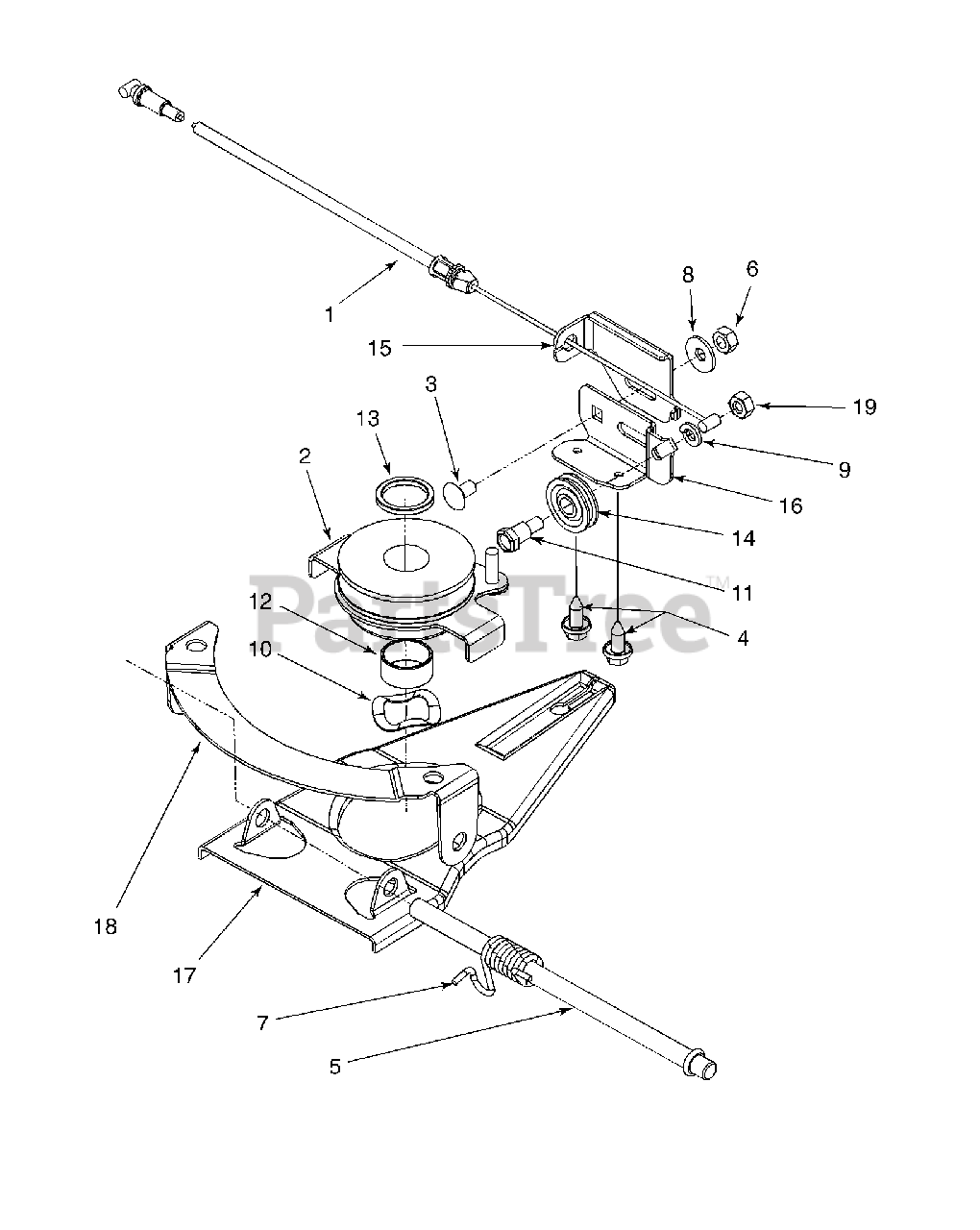

Cable Parts Diagram

  • Title
1

Cub Cadet 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

2

Cub Cadet 656-0613

Pulley Ass'y Mult - Spd.
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0167

Scr. 1/4-20 x .50 Carr.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0896

Scr. AB 1/4-14 x .625 Hex hd. Wsh.

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0287

Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 732-0807

Torsion Spring LH
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0270

Bell Wash. .265 X .75 X .062

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0329

Lock Wash. 1/4 Reg Duty
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet 736-0526

Wave Wash. 1.38 x .88 x .029

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 738-0924

Shld.Scr. .375 x 1/4 -14AB
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

12

Cub Cadet 750-1070

Slev Spcr..88 ID 1.00 OD x.48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

13

Cub Cadet 750-1071

Slev Spcr .88 ID x 1.13 ID x .12
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

14

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

15

Cub Cadet 782-7574-0662

6 Spd. Cable Adj. Bracket

$

$

Currently unavailable

16

Cub Cadet 782-7575-0662

6 Spd. Cable Mt. Bracket

$

$

Currently unavailable

17

Cub Cadet 782-7596

6 Sp. Control Arm
(Superseded to 782-7596A)

Variations

Cub Cadet 782-7596-0637

Control Arm, 6-Speed - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 782-7597

6 Sp. Pivot Bracket

Variations

Cub Cadet 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

19

Cub Cadet 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0
