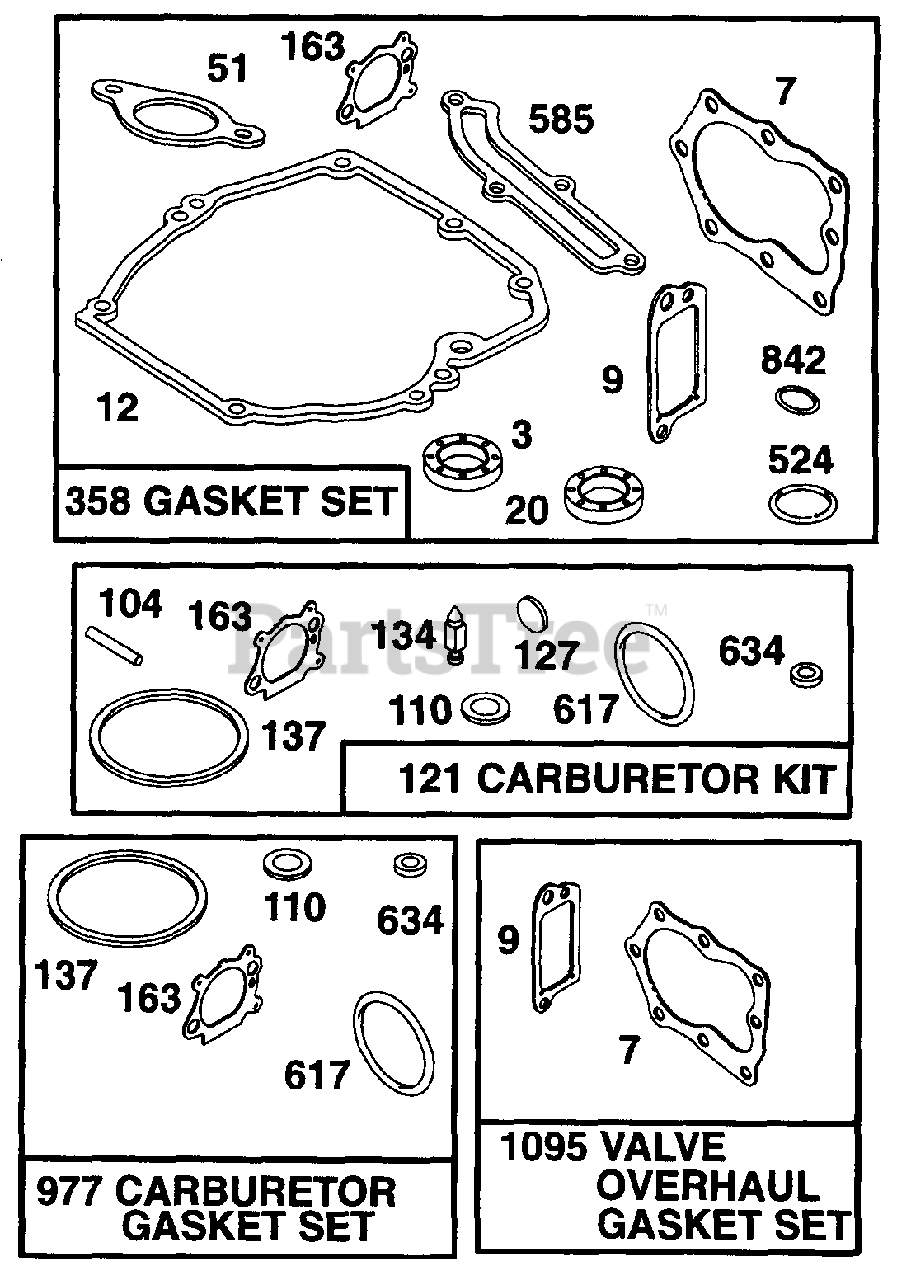

SC 621 (12A-969D100) - Cub Cadet Walk-Behind Mower Engine (1997) Gaskets Parts Diagram

Walk-Behind Mower Engine

Gaskets Parts Diagram

  • Title
3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

7

Cub Cadet BS-272916

Gasket-Cylinder Head
(Superseded to BS-692249)

$8.49

$

In Stock, Qty 20+

0

9

Cub Cadet BS-272481

Gasket-Valve Cover
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

51

Cub Cadet BS-272199

Gasket-Intake
(Superseded to BS-272199S)

$4.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

110

Gasket-Sealing

Note: (Sold in Kit Only)

$

$

Not available

121

Cub Cadet BS-498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0

127

Plug-Welch

Note: (Sold in Kit Only)

$

$

Not available

134

Cub Cadet BS-398188

Valve-Inlet

Note: (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl

Note: (Sold in Kit Only)

$

$

Not available

163

Cub Cadet BS-272653

Gasket-Air Cleaner
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-497316

Gasket Set
(Superseded to BS-590508)

$37.99

$

In Stock, only 2 left!

0

524

Cub Cadet BS-280393

Seal-Fill Tube
(Superseded to BS-691031)

$5.49

$

In Stock, Qty 20+

0

585

Cub Cadet BS-272238

Gasket-Baffle Plate
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

617

Cub Cadet BS-270344

Seal-Intake Manifold
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft

Note: (Sold in Kit Only)

$

$

Not available

842

Cub Cadet BS-280966

Seal O-Ring
(Superseded to BS-692296)

$4.99

$

In Stock, Qty 7

0

977

Cub Cadet BS-498261

Gasket Set-Carburetor
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

1095

Cub Cadet BS-498528

Gasket Set-Valve Overhaul

$26.99

$

Usually ships in 2-12 days

0
