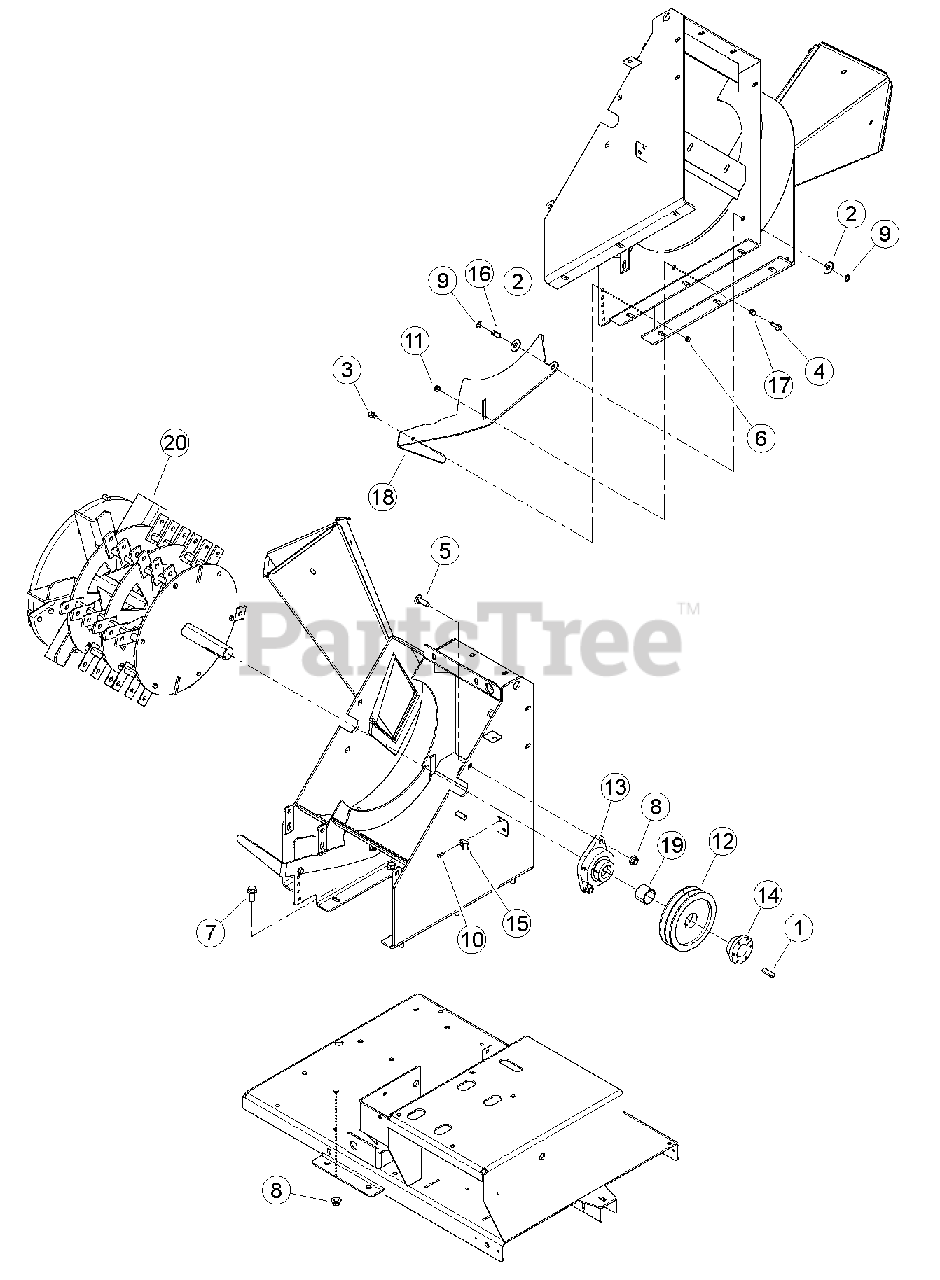

SC 5627 B - Bear Cat 5" Chipper/Shredder Blower, 627cc Briggs & Stratton (SN: 5VJAA0215HW005514 & Above) Housing (B) Parts Diagram

5" Chipper/Shredder Blower, 627cc Briggs & Stratton

Housing (B) Parts Diagram

  • Title

1

0122-0012-00

KEY, 3/8 SQ X 1-1/2

$

$

Not available

2

Bear Cat 15034

WASHER, 1/2 FLAT

$

$

Not available

3

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15157

BOLT, 1/2 X 1-1/2" GR5 CRG ZP

$8.49

$

Usually ships in 3-7 days

0

6

15178

NUT, 5/16" CENTERLOCK NC ZP

$

$

Not available

7

Bear Cat 15612

BOLT, 1/2-13 X 1-1/4 SERRATED FLANGE

$

$

Not available

8

Bear Cat 15616

NUT, 1/2 SPIRAL LOCK NC ZP

$

$

Not available

9

Bear Cat 15683-00

CLIP, 1/2" E

$1.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 16001

SHEAVE, 2B 6.6 SDS

$150.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$82.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16007

BUSHING, SDS 1-1/2"

$67.99

$

Usually ships in 3-7 days

0

15

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

16

Bear Cat 73485-00

PIN, RETAINER

$16.99

$

Usually ships in 3-7 days

0

17

Bear Cat 73508-00

SPACER, .50 X .50

$12.99

$

Usually ships in 3-7 days

0

18

Bear Cat 76862-35

ADJUSTOR, SHREDDER

$

$

Not available

19

Bear Cat 77143-12

SPACER, 1-3/4" OD X 1-1/2" ID X 1-1/4"

$

$

Not available

20

Bear Cat 77612-00

ASSEMBLY, 5" CS ROTOR KNIVES

$2443.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
