SC 5540 - Bear Cat 5" Chipper/Shredder, 540cc PTO Driven (SN: D00001 & Above) Front Housing (SN: D00001 - E01236) Parts Diagram

5" Chipper/Shredder, 540cc PTO Driven

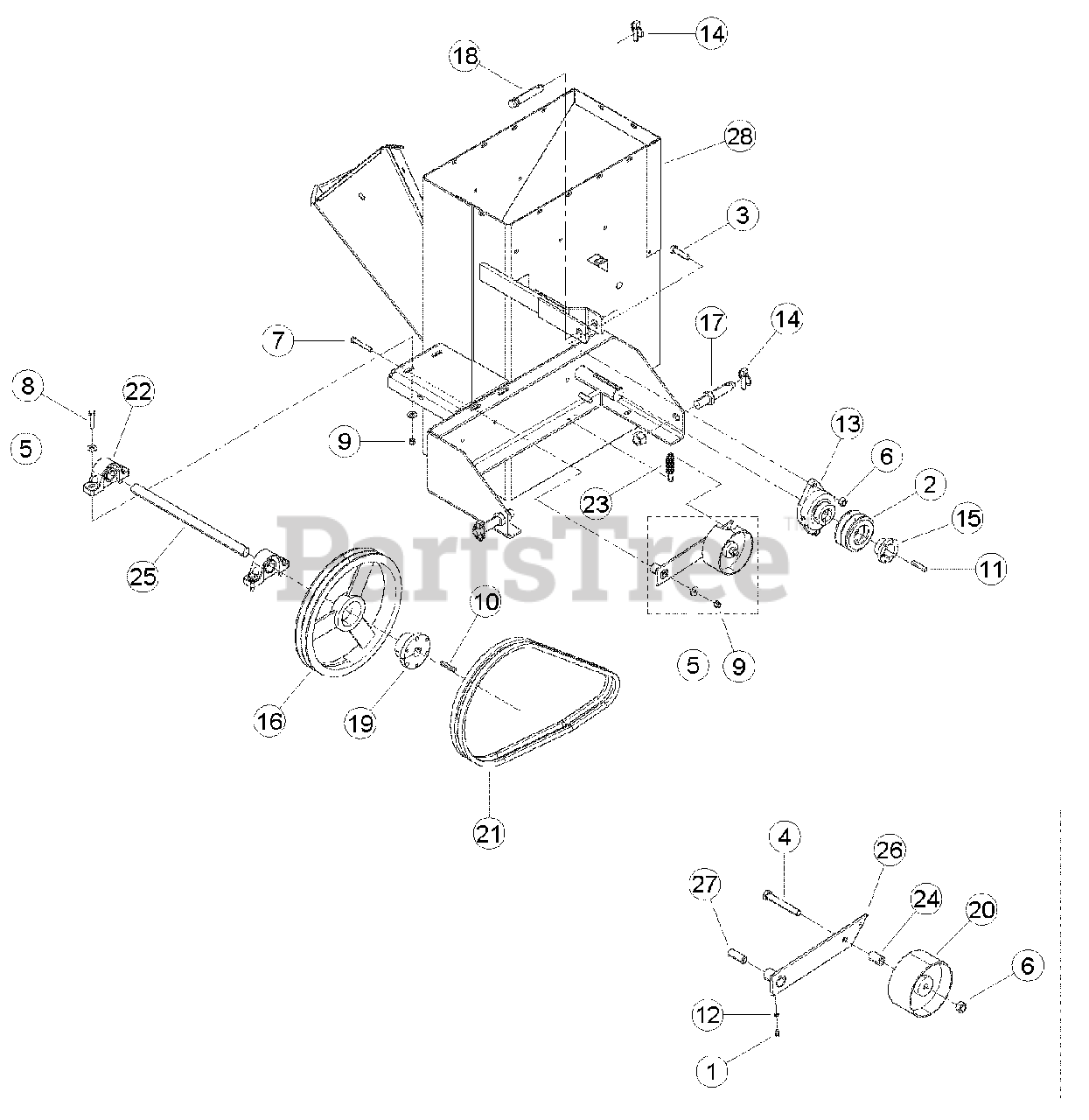

Front Housing (SN: D00001 - E01236) Parts Diagram

  • Title
1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

SHEAVE, 2B3.6 SH, QD (WAS 12446, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32908-00)

$

$

Not available

3

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

4

15016

BOLT, 1/2 X 3-1/2 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

7

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15141

BOLT, 3/8 X 1-3/4 HEX HD GR5 ZP

$

$

Not available

9

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15391

KEY, 1/4 SQUARE X 2 LONG PLAIN

$

$

Not available

11

Bear Cat 15441

KEY, 1/4 X 3/8 X 2

$8.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15584

WASHER, .254 X .400 X .048 FLAT

$

$

Not available

13

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$82.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

15

Bear Cat 16016

BUSHING, SH 1-1/2"

$60.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16017

SHEAVE, 2B13.6 SK

$261.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5 LONG

$24.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2 LONG

$14.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16083

BUSHING, 1" SK

$66.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16230

PULLEY, IDLER 5" X 2.50"

$85.99

$

Usually ships in 3-7 days

0

21

V-BELT, BX-56 SINGLE (WAS 17055, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32883-00)

$

$

Not available

22

Bear Cat 17667

PILLOW BLOCK BEARING 1"

$67.99

$

Usually ships in 3-7 days

0

23

Bear Cat 17692

SPRING, 3/4"OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

24

Bear Cat 70369

SPACER, .75 X 1.18

$14.99

$

Usually ships in 3-7 days

0

25

Bear Cat 70420

JACKSHAFT, PTO C/S

$77.99

$

Usually ships in 3-7 days

0

26

Bear Cat 70691

WELDMENT, PTO IDLER ARM

$

$

Not available

27

Bear Cat 70694

SPACER .63 X 1.63

$15.99

$

Usually ships in 3-7 days

0

28

Bear Cat 70710-35

WELDMENT, PTO C/S FRAME

$

$

Not available
