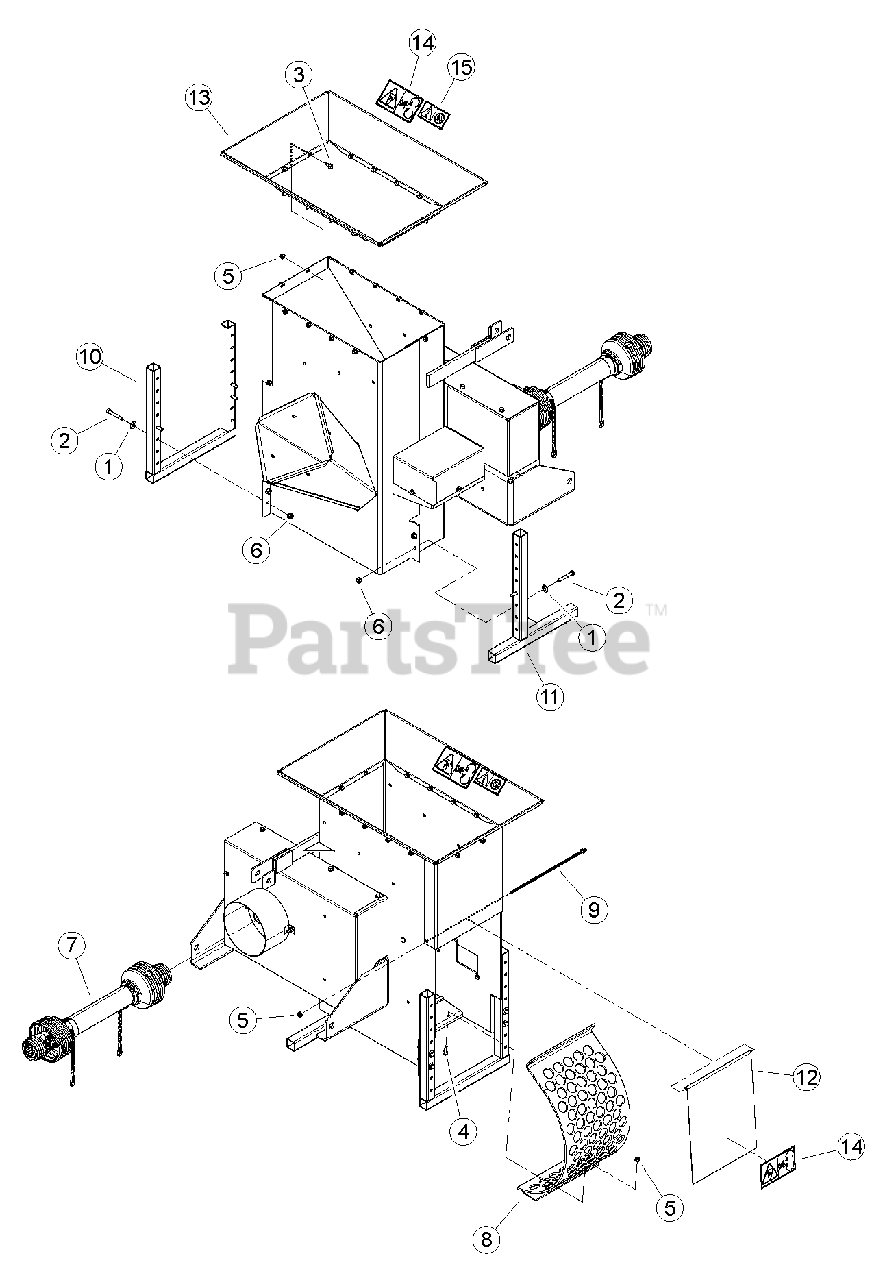

SC 5540 - Bear Cat 5" Chipper/Shredder, 540cc PTO Driven (SN: D00001 & Above) Attachments (SN: H01828 - CURRENT) Parts Diagram

5" Chipper/Shredder, 540cc PTO Driven

Attachments (SN: H01828 - CURRENT) Parts Diagram

  • Title

1

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

2

Bear Cat 15116

BOLT, 3/8 X 2-1/2 GR5 HHCS ZP

$

$

Not available

3

15118-00

BOLT, 5/16 X 3/4" SERRATED FLANGE NF

$

$

Not available

4

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

6

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

7

31110-00

DRIVELINE, 22.0/30.4" 1-3/8 SPL

$

$

Not available

8

Bear Cat 70332

WELDMENT, LARGE SCREEN COARSE

$

$

Not available

9

Bear Cat 70397

ROD, DOOR PIVOT

$20.99

$

Usually ships in 3-7 days

0

10

Bear Cat 70416

WELDMENT, PTO C/S STAND

$

$

Not available

11

Bear Cat 70417

WELDMENT, PTO C/S POST

$

$

Not available

12

Bear Cat 70460

DOOR, DISCHARGE WITH DECAL

Note: (INCLUDES ITEM 14)

$73.99

$

Usually ships in 3-7 days

0

13

Bear Cat 70761

ASSEMBLY, HOPPER W/ DECALS

Note: (INCLUDES ITEMS 14 & 15)

$373.99

$

Usually ships in 3-7 days

0

14

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

15

Bear Cat 12176

DECAL, SHREDDER SIZE ISO

$10.99

$

Usually ships in 3-7 days

0
