SC 5540 - Bear Cat 5" Chipper/Shredder, 540cc PTO Driven (SN: B00001 - C09923) Attachments Parts Diagram

5" Chipper/Shredder, 540cc PTO Driven

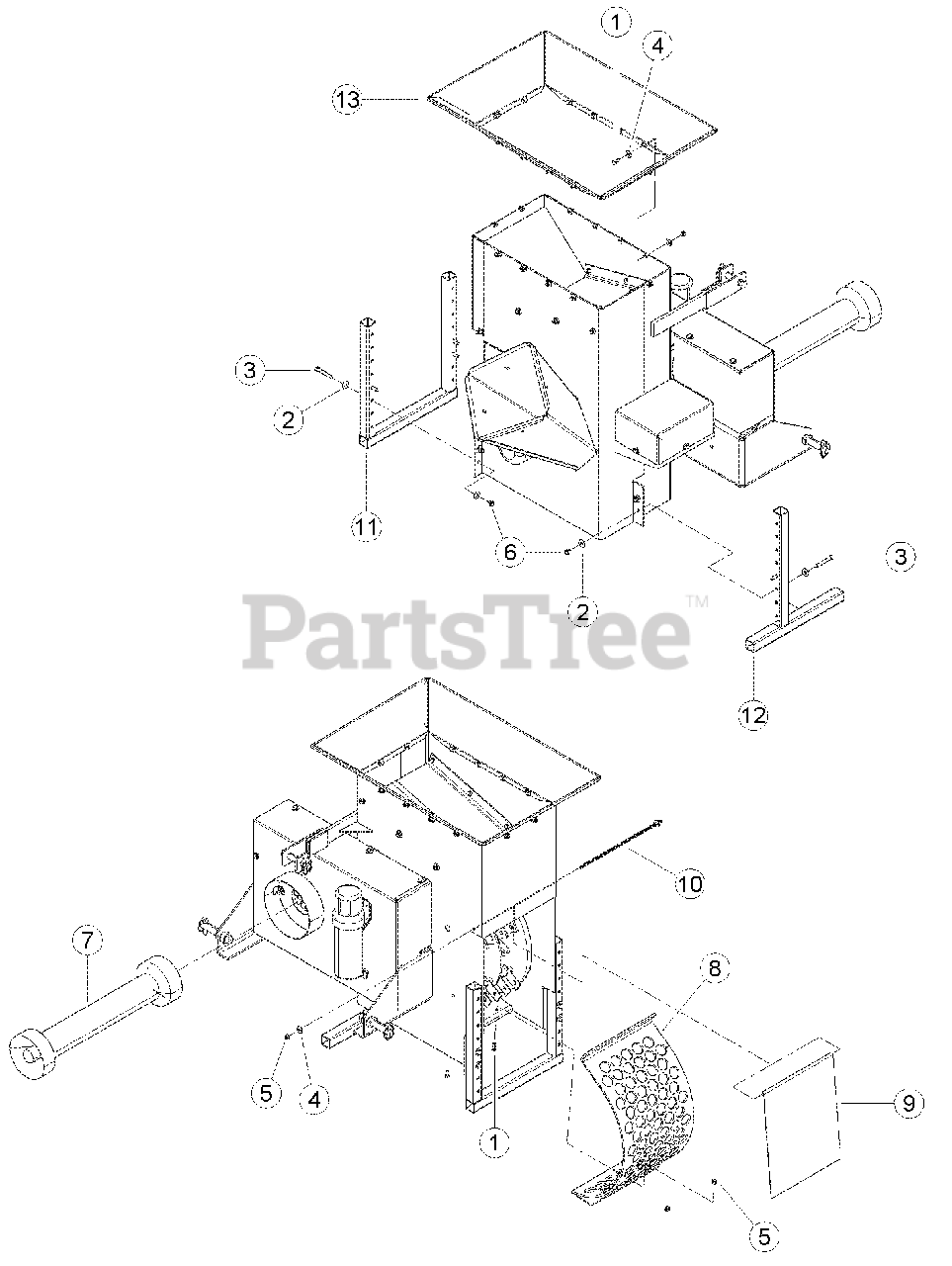

Attachments Parts Diagram

  • Title

1

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

3

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

5

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

6

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

7

Bear Cat 16961

DRIVESHAFT, 540 C/S WS

$

$

Not available

8

Bear Cat 70332

WELDMENT, LARGE SCREEN COARSE

$

$

Not available

9

Bear Cat 70353

DOOR, COMMERCIAL DISCHARGE
(Superseded to 70460)

$73.99

$

Usually ships in 3-7 days

0

10

Bear Cat 70397

ROD- DOOR PIVOT

$20.99

$

Usually ships in 3-7 days

0

11

Bear Cat 70416

WELDMENT, PTO C/S STAND

$

$

Not available

12

Bear Cat 70417

WELDMENT, PTO C/S POST

$

$

Not available

13

Bear Cat 70761

ASSY, HOPPER W/DECALS

$373.99

$

Usually ships in 3-7 days

0
