SC 5540 B - Bear Cat 5" Chipper/Shredder Blower, 540cc PTO Driven (SN: D00001 & Above) Rear Housing Parts Diagram

5" Chipper/Shredder Blower, 540cc PTO Driven

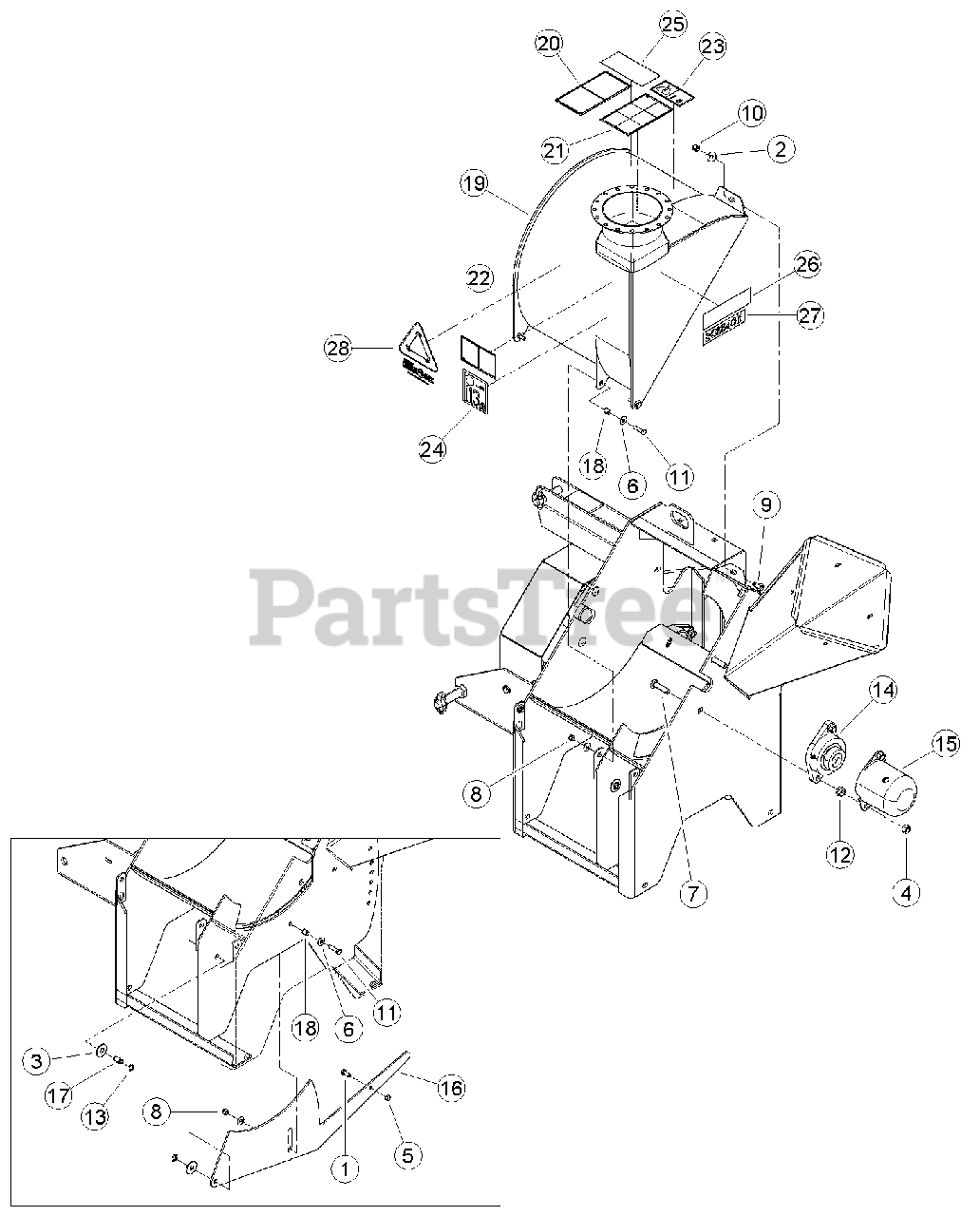

Rear Housing Parts Diagram

  • Title
1

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

3

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

4

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

5

15178

NUT, 5/16 CENTERLOCK NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

15339

BOLT, 1/2 X 2 CRG GR5 ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

9

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

12

Bear Cat 15616

NUT, 1/2 SERR FLANGE NC ZP

$

$

Not available

13

Bear Cat 15683-00

CLIP, 1/2" E

$1.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16004

BEARING,2 BLT FLG 1-1/2" BORE

$82.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

16

Bear Cat 73474-35

ADJUSTOR, SHREDDER

$

$

Not available

17

Bear Cat 73485-00

PIN, RETAINER

$16.99

$

Usually ships in 3-7 days

0

18

Bear Cat 73508-00

SPACER, .50 X .50

$12.99

$

Usually ships in 3-7 days

0

19

Bear Cat 77118-00

ASSEMBLY, CHIPPER TOP SERVICE PART

$610.99

$

In Stock, only 1 left!

0

20

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

21

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

22

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

23

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

24

Bear Cat 14344-00

DECAL, 113 DB

$29.99

$

Usually ships in 3-7 days

0

25

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

26

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

27

Bear Cat 18942-00

DECAL, MODEL SC5540B

$18.99

$

Usually ships in 3-7 days

0

28

Bear Cat 31393-00

DECAL, SHRED IT

$13.99

$

Usually ships in 3-7 days

0
