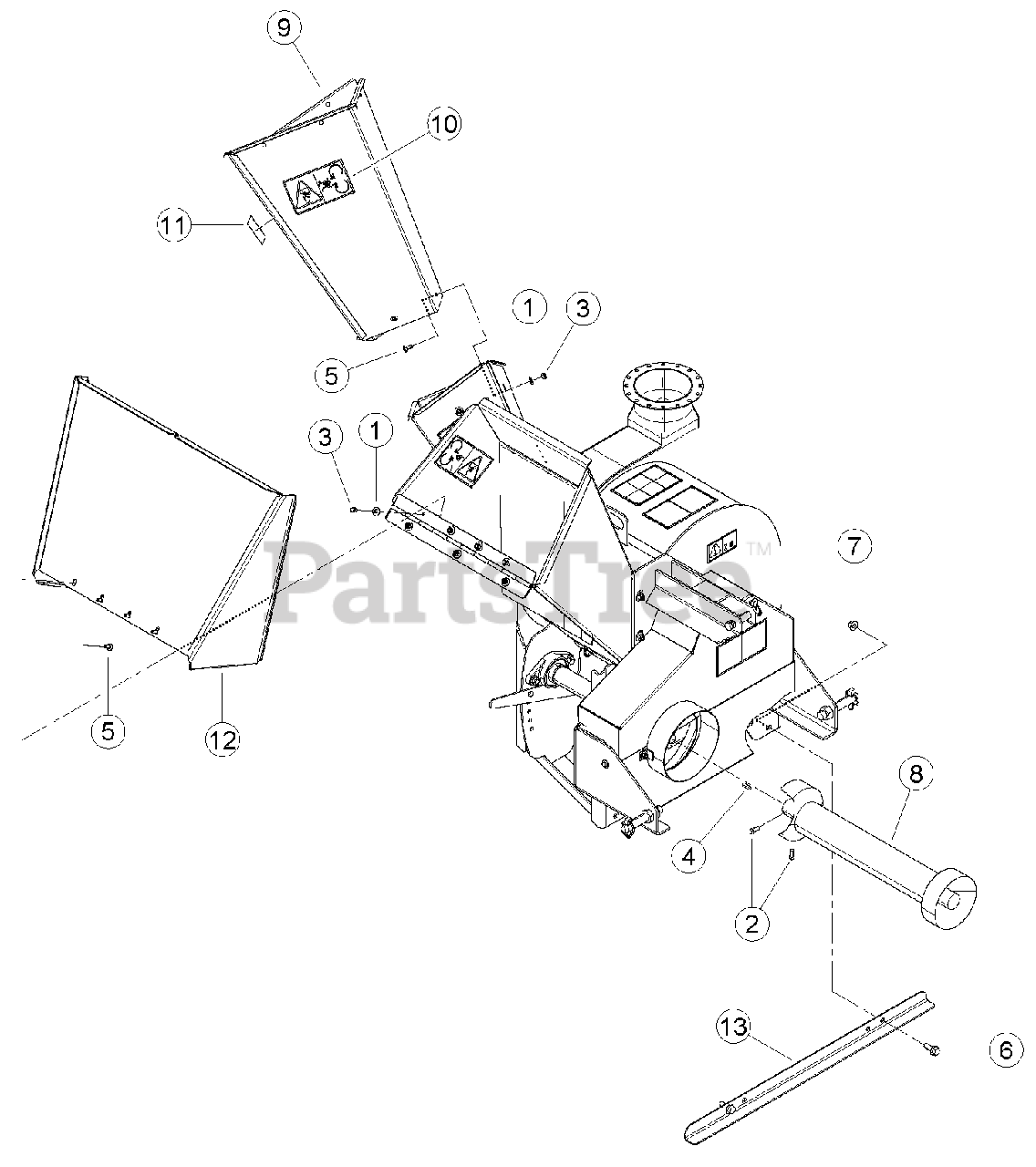

SC 5540 B - Bear Cat 5" Chipper/Shredder Blower, 540cc PTO Driven (SN: D00001 & Above) Attachments (SN: D00001 - H01021) Parts Diagram

5" Chipper/Shredder Blower, 540cc PTO Driven

Attachments (SN: D00001 - H01021) Parts Diagram

  • Title
1

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

2

Bear Cat 15256

SCREW, 3/8 X 3/4 SQ HD SET ZP

$

$

Not available

3

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

4

Bear Cat 15365

KEY, 1/4 SQUARE X 1 LONG

$

$

Not available

5

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

6

Bear Cat 15612

BOLT, 1/2 X 1-1/4 SERRATED FLANGE

$

$

Not available

7

Bear Cat 15616

NUT, 1/2 SERRATED FLANGE NC ZP

$

$

Not available

8

Bear Cat 16961

DRIVESHAFT, 540 C/S WS

$

$

Not available

9

Bear Cat 71781

ASSEMBLY, COMM. CHUTE EXTENSION, SERVICE PART

Note: (INCLUDES ITEMS 10 & 11)

$333.99

$

Usually ships in 3-7 days

0

10

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

11

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

12

Bear Cat 73347-12

WELDMENT, CHUTE TRAY

$

$

Not available

13

Bear Cat 73558-12

LEG, C/S SUPPORT

$

$

Not available
