SC 5540 B - Bear Cat 5" Chipper/Shredder Blower, 540cc PTO Driven (SN: B00001 - C09361) Shredder Chute Parts Diagram

5" Chipper/Shredder Blower, 540cc PTO Driven

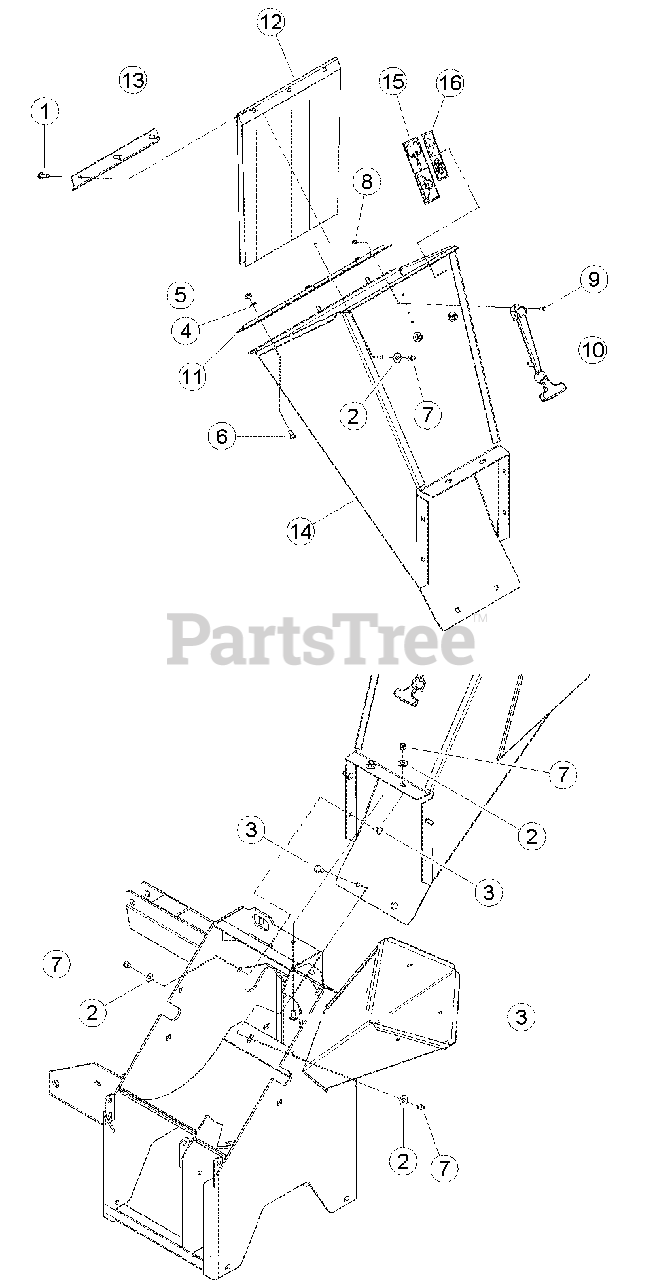

Shredder Chute Parts Diagram

  • Title

1

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

3

15057

BOLT, 3/8 X 1 CRG NC ZP

$

$

Not available

4

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

5

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

6

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

7

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

8

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

9

15423

SCREW, MCH 10-24 X 1/2 PAN HD,PH ZP

$

$

Not available

10

Bear Cat 16507

LATCH, FLEXABLE DRAW W/ KEEPER

$102.99

$

Usually ships in 3-7 days

0

11

Bear Cat 73375-12

HINGE, EXTENSION TRAY

$

$

Not available

12

Bear Cat 73482-00

FLAP, C/S CHUTE

$123.99

$

Usually ships in 3-7 days

0

13

Bear Cat 73483-12

ANGLE, FLAP ANCHOR

$

$

Not available

14

Bear Cat 77120-00

ASSEMBLY, SHREDDER CHUTE SERVICE PART

Note: (INCLUDES ITEMS 15 & 16)

$594.99

$

Usually ships in 3-7 days

0

15

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

16

Bear Cat 12176

DECAL, SHREDDER SIZE ISO

$10.99

$

Usually ships in 3-7 days

0
