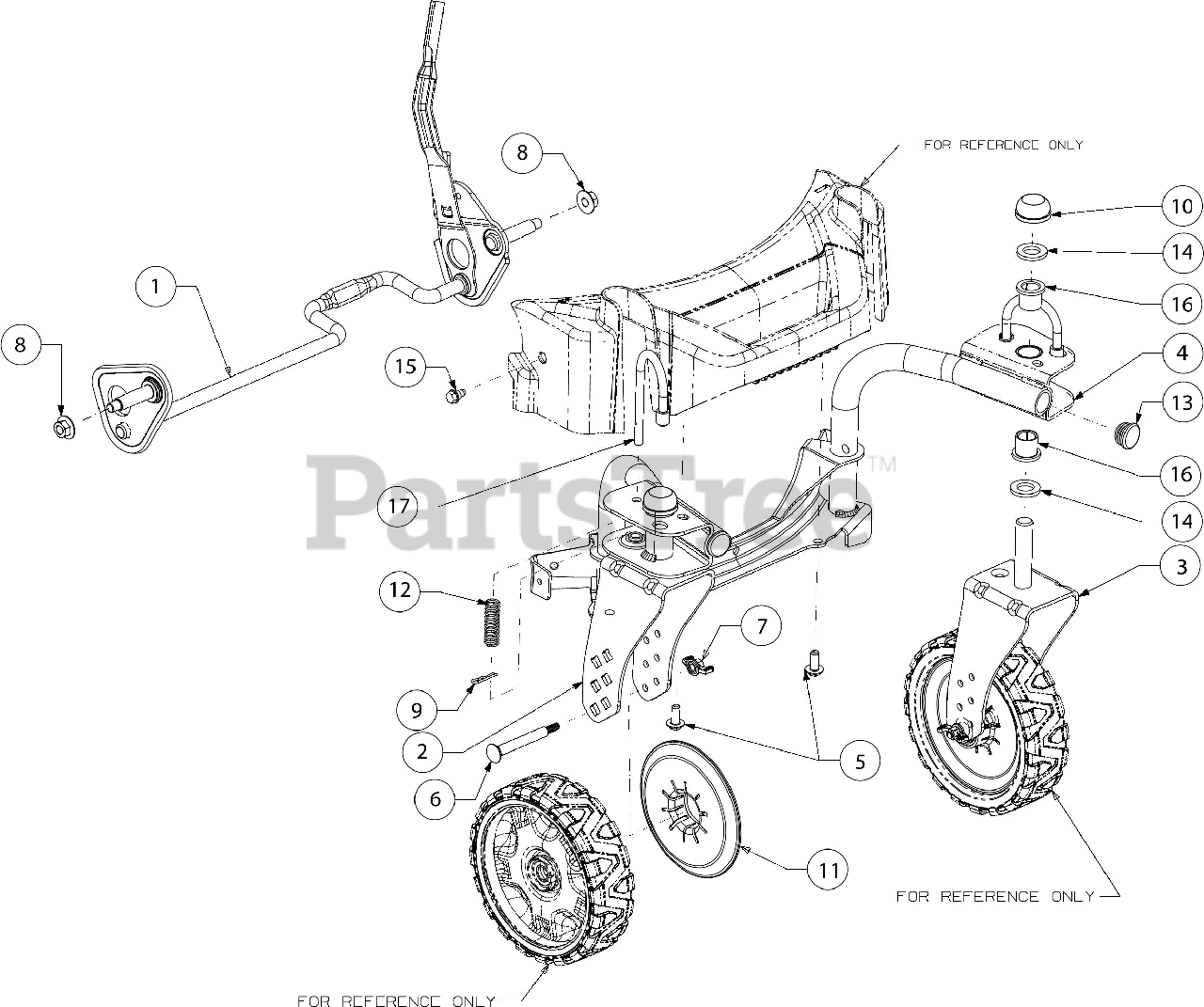

SC 500 Z (12ABO6M5710) - Cub Cadet Walk-Behind Mower (2020) Axles Parts Diagram

Walk-Behind Mower

Axles Parts Diagram

  • Title
1

Cub Cadet 911-04189

HEIGHT AXLE ASSEMBLY
(Superseded to 611-04189A)

$55.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 682-9024

CASTER BRACKET ASSEMBLY (RH)

Note: (Choose Color When Ordering)

Variations

Cub Cadet 682-9024-0498

Caster Bracket, RH - OLD CUB YELLOW (0498)

$81.99

$

In Stock, only 1 left!

0

Cub Cadet 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

Cub Cadet 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0716

Caster Bracket, RH - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

Cub Cadet 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0637

BRACKET CASTER - POWDER BLACK (0637)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-0691

BRACKET CASTER - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 682-9026

WHEEL BRACKET ASSEMBLY (LH)
(Superseded to 682-9026A)

Note: (Choose Color When Ordering)

Variations

Cub Cadet 682-9026-0498

Caster Bracket, LH - OLD CUB YELLOW (0498)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-0638

Caster Bracket, LH - MTD/TROY-BILT RED (0638)

$85.99

$

In Stock, only 3 left!

0

Cub Cadet 682-9026-0650

Caster Bracket, LH - RED METALLIC (0650)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-0689

BRACKET ASSY-WHEEL LH - POLO GREEN (0689)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-0691

BRACKET ASSY-WHEEL LH - BLACK JACK (0691)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-0716

Caster Bracket, LH - CUB YELLOW-99 (0716)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-4021

Caster Bracket, LH - CUB YELLOW 2 (4021)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-0637

BRACKET ASSY-WHEEL LH - POWDER BLACK (0637)

$85.99

$

In Stock, only 1 left!

0

Cub Cadet 682-9026-0662

BRACKET ASSY-WHEEL LH - OYSTER GRAY (0662)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-0665

BRACKET ASSY-WHEEL LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-0667

BRACKET ASSY-WHEEL LH - MIDNIGHT BLUE (0667)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-4015

BRACKET ASSY-WHEEL LH - FIRE RED (4015)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-4028

BRACKET ASSY-WHEEL LH - SEARS YELLOW (4028)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 682-9026-4033

BRACKET ASSY-WHL L - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 687-05033

CASTER BRACKET ASSEMBLY

Note: (Choose Color When Ordering)

Variations

Cub Cadet 687-05033-0637

Caster Bracket Assembly - POWDER BLACK (0637)

$148.99

$

Usually ships in 3-6 days

0

Cub Cadet 687-05033-4021

BRACKET ASM-CASTER - CUB YELLOW 2 (4021)

$148.99

$

Usually ships in 3-6 days

0

Cub Cadet 687-05033-0638

BRACKET ASM-CASTER - MTD/TROY-BILT RED (0638)

$148.99

$

Usually ships in 3-6 days

0

Cub Cadet 687-05033-0691

BRACKET ASM-CASTER - BLACK JACK (0691)

$148.99

$

Usually ships in 3-6 days

0

Cub Cadet 687-05033-4028

BRACKET ASM-CASTER - SEARS YELLOW (4028)

$138.99

$

Usually ships in 3-6 days

0

Cub Cadet 687-05033-4033

BRACKET ASM-CASTER - FLINT MICA (4033)

$138.99

$

Usually ships in 3-6 days

0

$120.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04995A

SCREW 5/16-14 X .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 911-1146

CASTER AXLE

$13.99

$

In Stock, Qty 11

0

7

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

10

$10.99

$

In Stock, Qty 5

0

11

Cub Cadet 731-09480

DUST COVER 7"

$4.49

$

In Stock, Qty 5

0

12

Cub Cadet 932-0306A

COMPRESSION SPRING

$8.49

$

In Stock, only 2 left!

0

13

$5.99

$

In Stock, only 2 left!

0

14

Cub Cadet 736-0366

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 X .50

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 741-0685

BEARING:FLANGE .631 ID

$4.49

$

In Stock, Qty 20+

0

17

$20.99

$

Usually ships in 3-6 days

0
