SC 500 Z (12ABC62J709) - Cub Cadet Walk-Behind Mower (2016) Caster Bracket Assembly Parts Diagram

Walk-Behind Mower

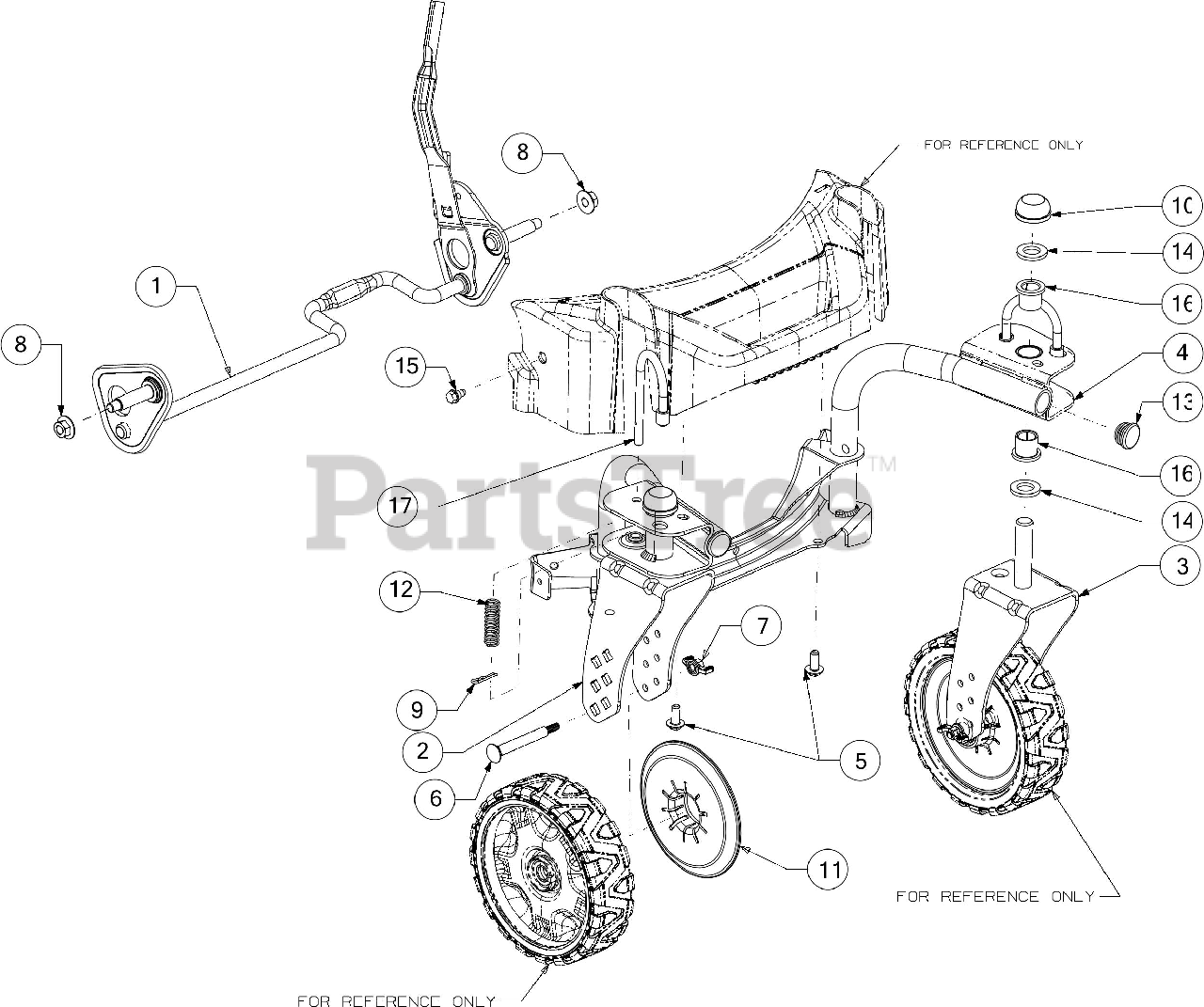

Caster Bracket Assembly Parts Diagram

  • Title

1

Cub Cadet 911-04189

HEIGHT AXLE ASSEMBLY
(Superseded to 611-04189A)

$55.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 682-9024-4021

CASTER BRACKET ASSEMBLY (RH)
(Superseded to 682-9024A-4021)

$81.99

$

In Stock, only 1 left!

0

3

Cub Cadet 682-9026-4021

WHEEL BRACKET ASSEMBLY (LH)
(Superseded to 682-9026A-4021)

$85.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 687-05033-4021

CASTER BRACKET ASSEMBLY

$148.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04995A

SCREW 5/16-14 X .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 911-1146

CASTER AXLE

$13.99

$

In Stock, Qty 11

0

7

Cub Cadet 712-0397A

WING NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0214

PUSH CAP

$10.99

$

In Stock, only 4 left!

0

11

Cub Cadet 731-09480

DUST COVER 7"

$4.49

$

In Stock, Qty 5

0

12

Cub Cadet 932-0306A

COMPRESSION SPRING

$8.49

$

In Stock, only 4 left!

0

13

Cub Cadet 735-0246A

END PLUG

$5.99

$

In Stock, only 1 left!

0

14

Cub Cadet 736-0366

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 X .50

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 741-0685

BEARING:FLANGE .631 ID

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 747-0924

LOCK PIN

$20.99

$

In Stock, only 1 left!

0
