SC 500 HW (12ABP2M5710) - Cub Cadet Walk-Behind Mower (2019) Transmission Parts Diagram

Walk-Behind Mower

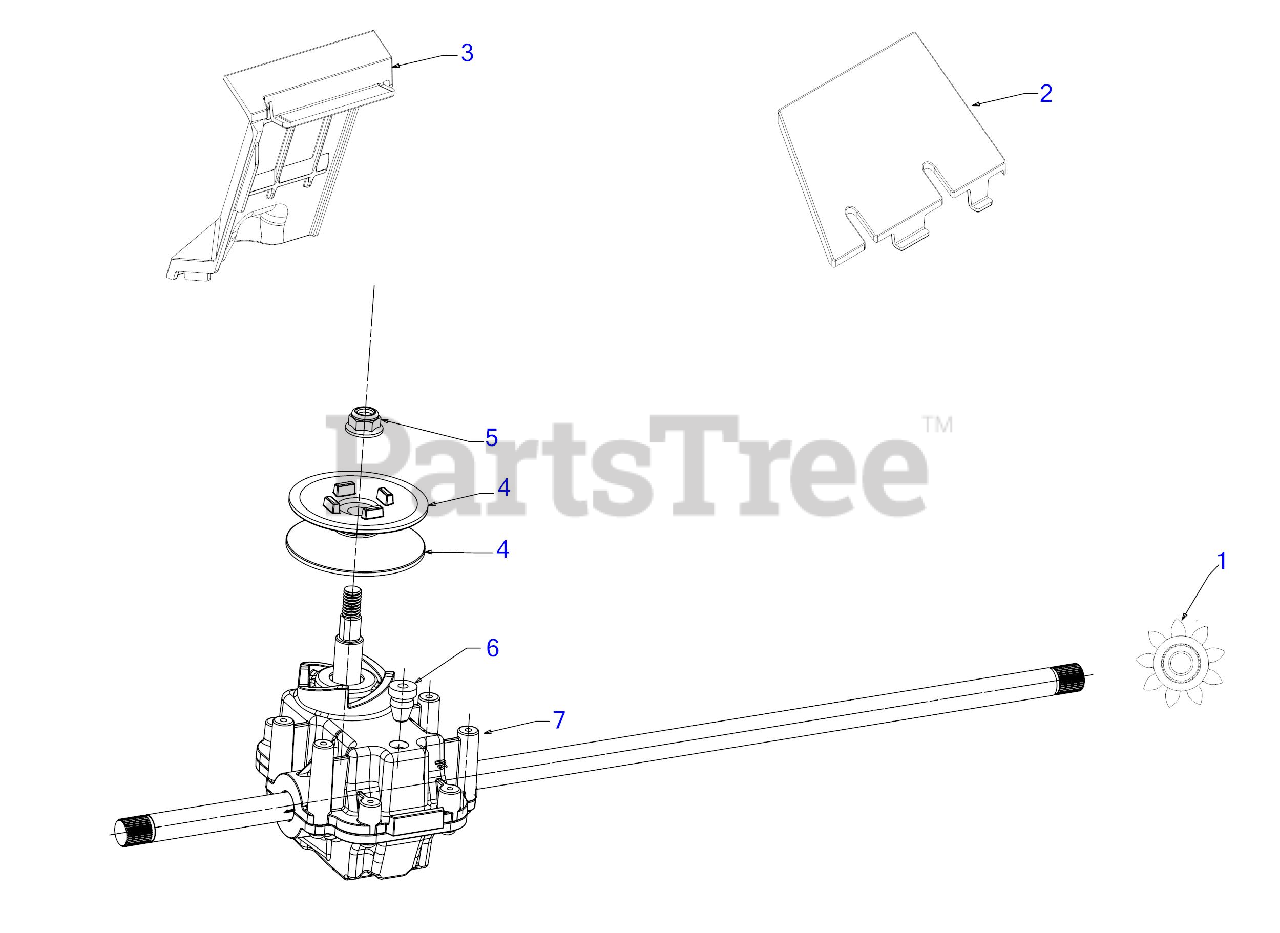

Transmission Parts Diagram

  • Title
1

Cub Cadet 917-04849

SPUR GEAR 9T

$4.99

$

In Stock, only 2 left!

0

2

Cub Cadet 731-09265

TRANSMISSION COVER (REAR)

$29.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-09264

TRANSMISSION COVER (FRONT)

$33.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 756-05054

HALF PULLEY 2.50 OD

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 721-04139

RUBBER PLUG

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 918-07000

TRANSMISSION ASSEMBLY

$148.99

$

In Stock, only 2 left!

0
