SC 500 HW (12ABD22J710) - Cub Cadet Walk-Behind Mower (2015) General Assembly SC500HW Parts Diagram

Walk-Behind Mower

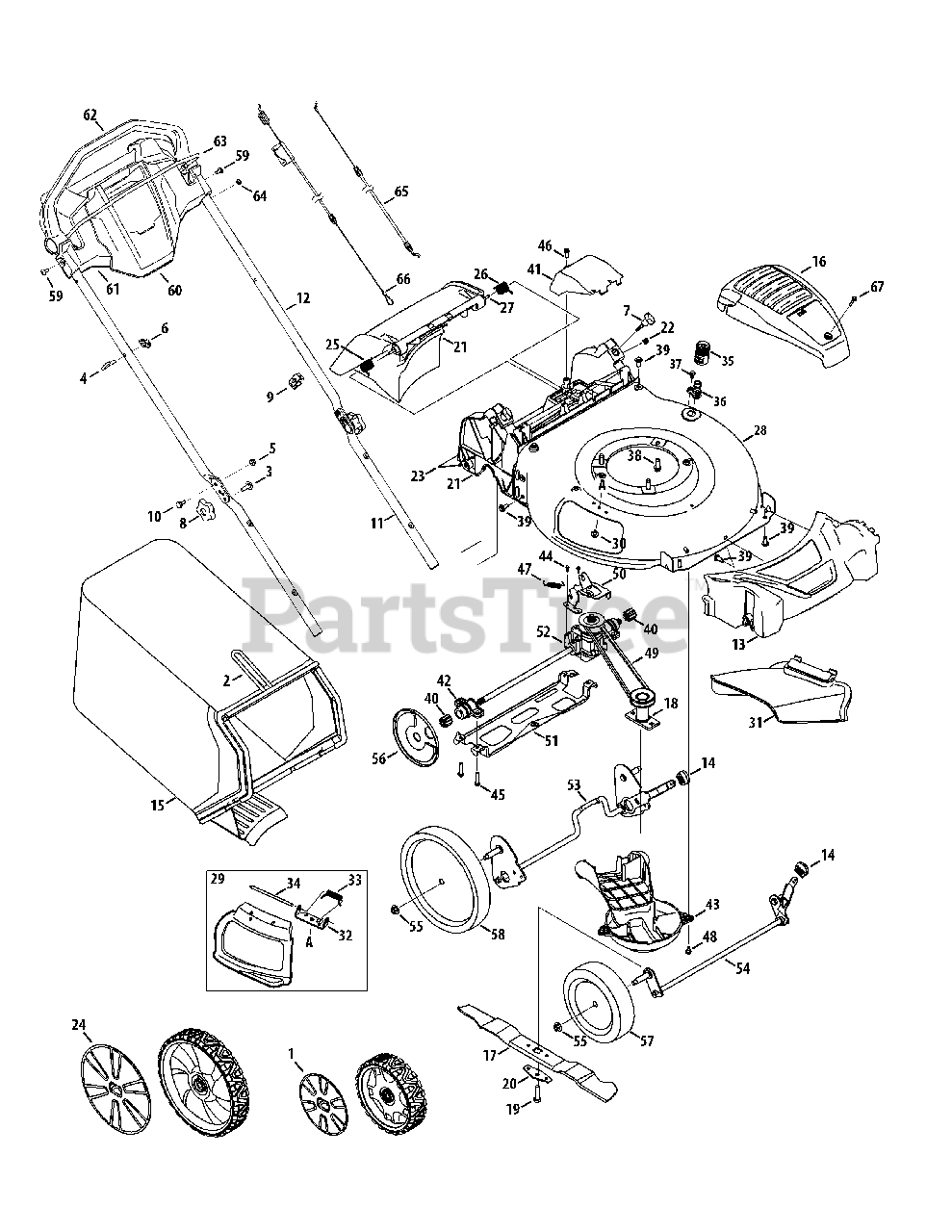

General Assembly SC500HW Parts Diagram

  • Title

1

Cub Cadet 731-08570

Hubcap, 8"

$5.49

$

In Stock, only 2 left!

0

2

Cub Cadet 747-05362A-0637

Grass Catcher Frame
(Superseded to 747-05362A)

$43.99

$

In Stock, Qty 18

0

3

Cub Cadet 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, Qty 5

0

4

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 720-0279

Knob

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 720-05066A

Wing Nut

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 720-05009

Star Knob

$4.99

$

In Stock, Qty 10

0

9

Cub Cadet 731-08454

Conduit Clip

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 738-04419A

Shdr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 2 left!

0

12

Cub Cadet 749-05084-0637

Upper Handle
(Superseded to 749-05084B-0637)

$33.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-09258A

Front Cover

$42.99

$

In Stock, only 1 left!

0

14

Cub Cadet 720-05014

Adjustment Knob

$4.49

$

In Stock, Qty 17

0

15

Cub Cadet 964-05005

Grass Bag

$54.99

$

In Stock, Qty 9

0

16

Cub Cadet 731-09094A

Engine Shroud
(Superseded to 731-09094B)

$26.99

$

In Stock, Qty 5

0

17

Cub Cadet 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

18

Cub Cadet 687-02220

Blade Adapter

$38.99

$

In Stock, only 3 left!

0

19

Cub Cadet 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 12

0

21

Cub Cadet 631-04553A

Rear Discharge Door Assembly

$81.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, only 2 left!

0

23

Cub Cadet 731-07203

Trail Shield

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet 731-08571

Hubcap, 11"

$7.49

$

In Stock, only 2 left!

0

25

Cub Cadet 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

27

Cub Cadet 747-05183

Pivot Rod

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 787-02002B-4021

21" Deck

$143.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 987-02516A

Mulch Plug (Incl. 32-34)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-05073

Screw

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 731-07131

Side Discharge Chute

$15.99

$

In Stock, Qty 9

0

32

Cub Cadet 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

34

Cub Cadet 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

36

Cub Cadet 731-07487

Water Nozzle

$4.49

$

In Stock, only 4 left!

0

37

Cub Cadet 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 15

0

38

Cub Cadet 710-04683B

Screw, tt, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 2 left!

0

39

Cub Cadet 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 917-04849

Spur Gear, 9T

$4.99

$

In Stock, only 2 left!

0

41

Cub Cadet 731-08175

Transmission Cover

$11.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 631-04501A

Bearing Assembly

$6.99

$

In Stock, only 4 left!

0

43

Cub Cadet 631-04512C

Engine Baffle
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

44

Cub Cadet 710-04374

Screw, Hex Washer, .159 x .43

$3.99

$

In Stock, only 2 left!

0

45

Cub Cadet 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 3 left!

0

47

Cub Cadet 732-05150A

Exten. Spring, 2.405

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 15

0

49

Cub Cadet 954-04282

V-Belt

$28.99

$

In Stock, only 3 left!

0

50

Cub Cadet 787-01868A-0637

Transmission Bracket
(Superseded to 787-01868B-0637)

$8.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 787-01915A

Rear Support Bracket
(Superseded to 787-01915C)

$19.99

$

In Stock, only 1 left!

0

52

Cub Cadet 918-07000

Transmission Assembly

$148.99

$

In Stock, only 2 left!

0

53

Cub Cadet 911-05029

Rear Axle Assembly
(Superseded to 611-05029A)

$60.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 911-05022

Front Axle Assembly
(Superseded to 611Z05022)

$29.99

$

In Stock, only 1 left!

0

55

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 15

0

56

Cub Cadet 731-07731C

Wheel Dust Cover

$9.99

$

In Stock, only 2 left!

0

57

Cub Cadet 634-04665

Front Wheel, 8 x2

$40.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 934-04699

Rear Wheel, 11 x 2

$44.99

$

In Stock, only 3 left!

0

59

Cub Cadet 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

60

Cub Cadet 931-09863

Trim Console

$42.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 931-09891

handle Console
(Superseded to 931-10685)

$27.99

$

In Stock, only 1 left!

0

62

Cub Cadet 631-05136A

Drive Handle
(Superseded to 631-05136B)

$63.99

$

In Stock, Qty 6

0

63

Cub Cadet 747-06338

Blade Control

Variations

Cub Cadet 747-06338-4021

Operator Bail, My S - CUB YELLOW 2 (4021)

$20.99

$

In Stock, only 1 left!

0

$18.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 748-05047

Shoulder Spacer, .18 x .315 x .09

$5.99

$

In Stock, only 1 left!

0

65

Cub Cadet 946-05105A

Control Cable

$42.99

$

In Stock, Qty 20+

0

66

Cub Cadet 946-05121A

Drive Cable

$27.99

$

In Stock, Qty 7

0

67

Cub Cadet 710-04509

Screw, #10-16 x 1.25

$3.99

$

Usually ships in 3-6 days

0
