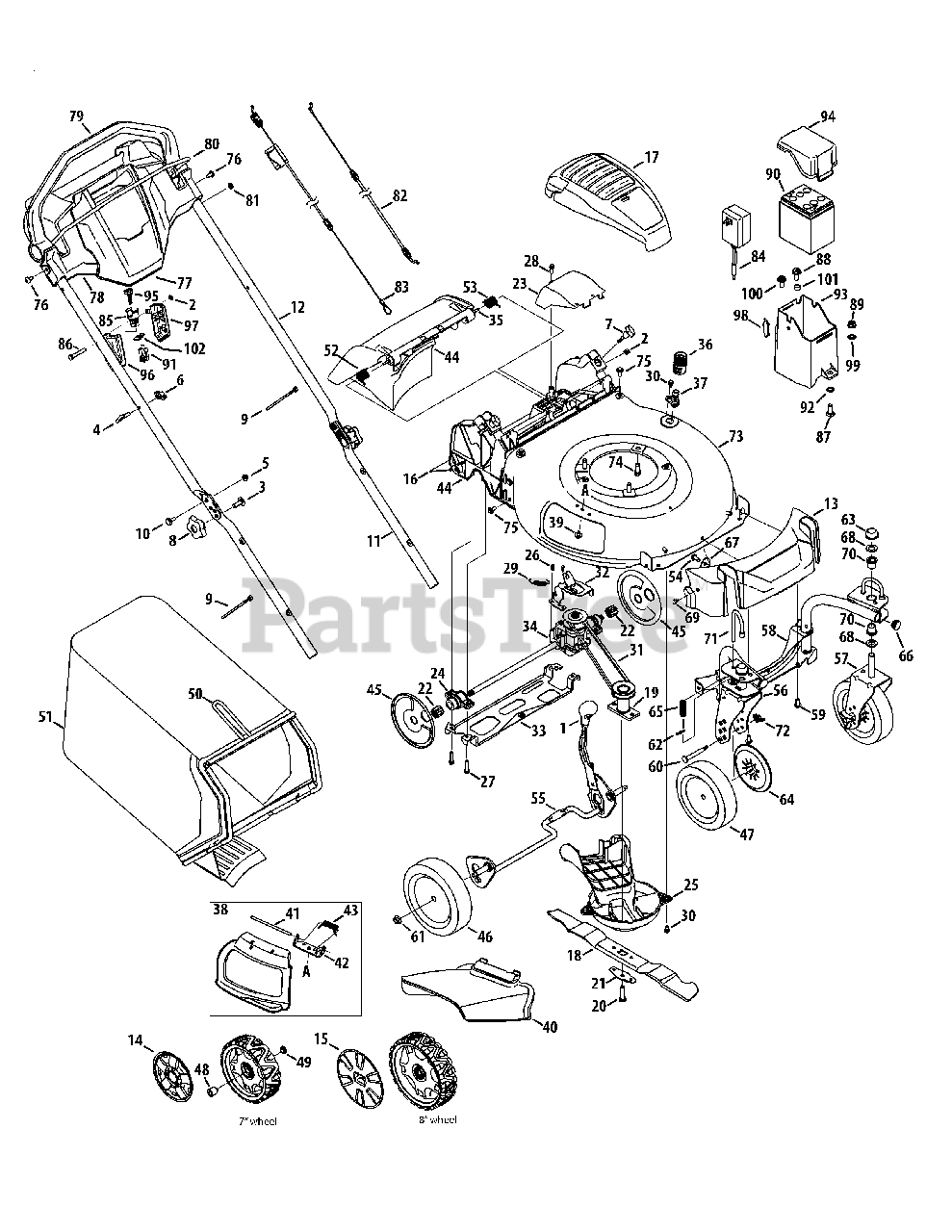

SC 500 EZ (12ACC6S6710) - Cub Cadet Walk-Behind Mower (2014) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Cub Cadet 720-05025

Adjustment Knob

$5.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, only 2 left!

0

3

Cub Cadet 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 720-05066

Wing Nut
(Superseded to 720-05066A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 720-05009

Star Knob

$4.99

$

In Stock, Qty 10

0

9

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 738-04419A

Shdr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 5

0

12

Cub Cadet 749-05084-0637

Upper Handle
(Superseded to 749-05084B-0637)

$33.99

$

In Stock, Qty 7

0

13

Cub Cadet 731-09621

Front Cover

$42.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-09360

Hubcap, 7"

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-08570

Hubcap, 8"

$5.49

$

In Stock, only 2 left!

0

16

Cub Cadet 731-07203

Trail Shield

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-09094A

Engine Shroud
(Superseded to 731-09094B)

$26.99

$

In Stock, Qty 5

0

17

Cub Cadet 710-04509

Screw, #10-16 X 1.25

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

19

Cub Cadet 687-02220

Blade Adapter

$38.99

$

In Stock, only 3 left!

0

20

Cub Cadet 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

22

Cub Cadet 917-04852

Spur Gear, 10T

$4.99

$

In Stock, only 2 left!

0

23

Cub Cadet 731-08175

Transmission Cover

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 631-04501A

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

25

Cub Cadet 631-04512C

Engine Baffle
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

26

Cub Cadet 710-04374

Screw, Hex Washer, .159 x .43

$3.99

$

In Stock, Qty 12

0

27

Cub Cadet 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

29

Cub Cadet 732-05150A

Exten. Spring, 2.405

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet 738-04278

Screw, Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

31

Cub Cadet 954-04282

V-Belt

$28.99

$

In Stock, only 2 left!

0

32

Cub Cadet 787-01868A-0637

Transmission Bracket
(Superseded to 787-01868B-0637)

$8.99

$

In Stock, only 1 left!

0

33

Cub Cadet 787-01915A

Rear Support Bracket
(Superseded to 787-01915C)

$19.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 918-07000

Transmission Assembly

$148.99

$

In Stock, only 2 left!

0

35

Cub Cadet 747-05183

Pivot Rod

$3.99

$

In Stock, Qty 10

0

36

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

37

Cub Cadet 731-07487

Water Nozzle

$4.49

$

In Stock, only 1 left!

0

38

Cub Cadet 987-02516A

Mulch Plug (Incl. 41-43)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-05073

Screw

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 731-07131

Side Discharge Chute

$15.99

$

In Stock, Qty 5

0

41

Cub Cadet 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

43

Cub Cadet 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

44

Cub Cadet 631-04553A

Rear Discharge Door Assembly

$81.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 731-07795

Wheel Dust Cover
(Superseded to 731-07795A)

$4.49

$

In Stock, only 1 left!

0

46

Cub Cadet 934-04714

Rear Wheel, 8 x 2

$42.99

$

In Stock, only 2 left!

0

47

Cub Cadet 634-04733

Front Wheel, 7 x 2

$40.99

$

In Stock, only 2 left!

0

48

Cub Cadet 750-06036

Caster Hub, Long
(Superseded to 750-06036A)

$4.49

$

In Stock, Qty 16

0

49

Cub Cadet 750-06065

Caster Hub, Short

$4.49

$

In Stock, Qty 17

0

50

Cub Cadet 747-05362A-0637

Grass Catcher Frame
(Superseded to 747-05362A)

$43.99

$

In Stock, Qty 17

0

51

Cub Cadet 964-05005

Grass Bag

$54.99

$

In Stock, Qty 9

0

52

Cub Cadet 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

53

Cub Cadet 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

54

Cub Cadet 710-04484

Self Tapping Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 911-04189

Rear Axle Assembly
(Superseded to 611-04189A)

$55.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 682-9024-4021

Caster Bracket Assembly, RH
(Superseded to 682-9024A-4021)

$81.99

$

In Stock, only 1 left!

0

57

Cub Cadet 682-9026-4021

Caster Bracket Assembly, LH
(Superseded to 682-9026A-4021)

$85.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 687-05033-4021

Caster Bracket Assembly

$148.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 710-05425A

Screw, 5/16-14 x .750

$3.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 911-1146

Caster Axle, .374 Dia. x 2.59

$13.99

$

In Stock, Qty 11

0

61

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 14

0

62

Cub Cadet 914-0104

Cotter Pin, .072 Dia. x 1.13 Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 3 left!

0

64

Cub Cadet 731-09480

Dust Cover, 7"

$4.49

$

In Stock, Qty 5

0

65

Cub Cadet 932-0306A

Compr. Sprng., .531 OD x 1.75 Lg

$8.49

$

In Stock, only 4 left!

0

66

Cub Cadet 735-0246A

Plug

$5.99

$

In Stock, only 1 left!

0

67

Cub Cadet 736-0362

Washer, Flat, .330 x 1.25 x .06

$4.49

$

In Stock, Qty 6

0

68

Cub Cadet 736-0366

Flat Washer, .640 x 1.12 x .125

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 738-04502

Shdr. Screw, .50 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 741-0685

Flange Bearing, .631 ID

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 747-0924

Lock Pin: Front Wheel

$20.99

$

In Stock, only 1 left!

0

72

Cub Cadet 712-0397A

Wing Nut, 1/4-20 w/Bell Washer

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 687-05086-4021

21" Deck
(Superseded to 687-05086A-4021)

$147.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 710-04683A

Screw, tt, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

75

Cub Cadet 710-05425A

Screw, 5/16-14 x .750

$3.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

77

Cub Cadet 931-09863

Trim Console

$42.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 931-09891

handle Console
(Superseded to 931-10685)

$27.99

$

In Stock, only 1 left!

0

79

Cub Cadet 731-09730

Drive Handle
(Superseded to 731-09730B)

$29.99

$

In Stock, Qty 20+

0

80

Cub Cadet 747-06338-0637

Blade Control

$

$

Currently unavailable

81

Cub Cadet 748-05047

Shoulder Spacer, .18 x .315 x .09

$5.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 946-05106

Control Cable
(Superseded to 946-05106B)

$31.99

$

In Stock, Qty 13

0

83

Cub Cadet 946-05121

Drive Cable
(Superseded to 946-05121A)

$27.99

$

In Stock, Qty 7

0

84

Cub Cadet 725-06121

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 11

0

85

Cub Cadet 931-05131

Key Switch
(Superseded to 931-05131A)

$13.99

$

In Stock, only 1 left!

0

86

Cub Cadet 710-0136

Screw, 1/4-20 x 1.75

$3.99

$

In Stock, Qty 20+

0

87

Cub Cadet 710-0276

Bolt, Carr., 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

88

Cub Cadet 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

89

Cub Cadet 912-0429

Nut, Flglk., 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

90

Cub Cadet 725-04903

Battery
(Superseded to 725P04903)

$112.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 725-06114

Plunger Switch

$33.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

93

Cub Cadet 731-07135

Battery Housing

$14.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 731-07154A

Battery Housing Top

$8.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 731-09728

Key

$4.99

$

In Stock, Qty 11

0

96

Cub Cadet 731-09753

Electric Start Housing, RH
(Superseded to 731-09753B)

$6.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 731-09755

Electric Start Housing, LH

$5.49

$

In Stock, only 1 left!

0

98

Cub Cadet 735-04213A

Lid Seal
(Superseded to 735-04213C)

$4.99

$

In Stock, only 2 left!

0

99

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .080

$4.49

$

In Stock, Qty 20+

0

100

Cub Cadet 738-04431A

Scr., Sldr., 5/16-14 x .972

$3.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 750-05377

Spacer, .340 x .460 x .246

$3.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 787-03162

Retainer Bracket

$

$

Not available

Cub Cadet 925-06140B

Wire Harness

Note: (Not Shown)

$59.99

$

In Stock, only 2 left!

0

Cub Cadet 725-05106

Fuse

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0
