SC 500 E (12ARD2JZ010) - Cub Cadet Walk-Behind Mower (2013) 2P70MU Carburetor Parts Diagram

Walk-Behind Mower

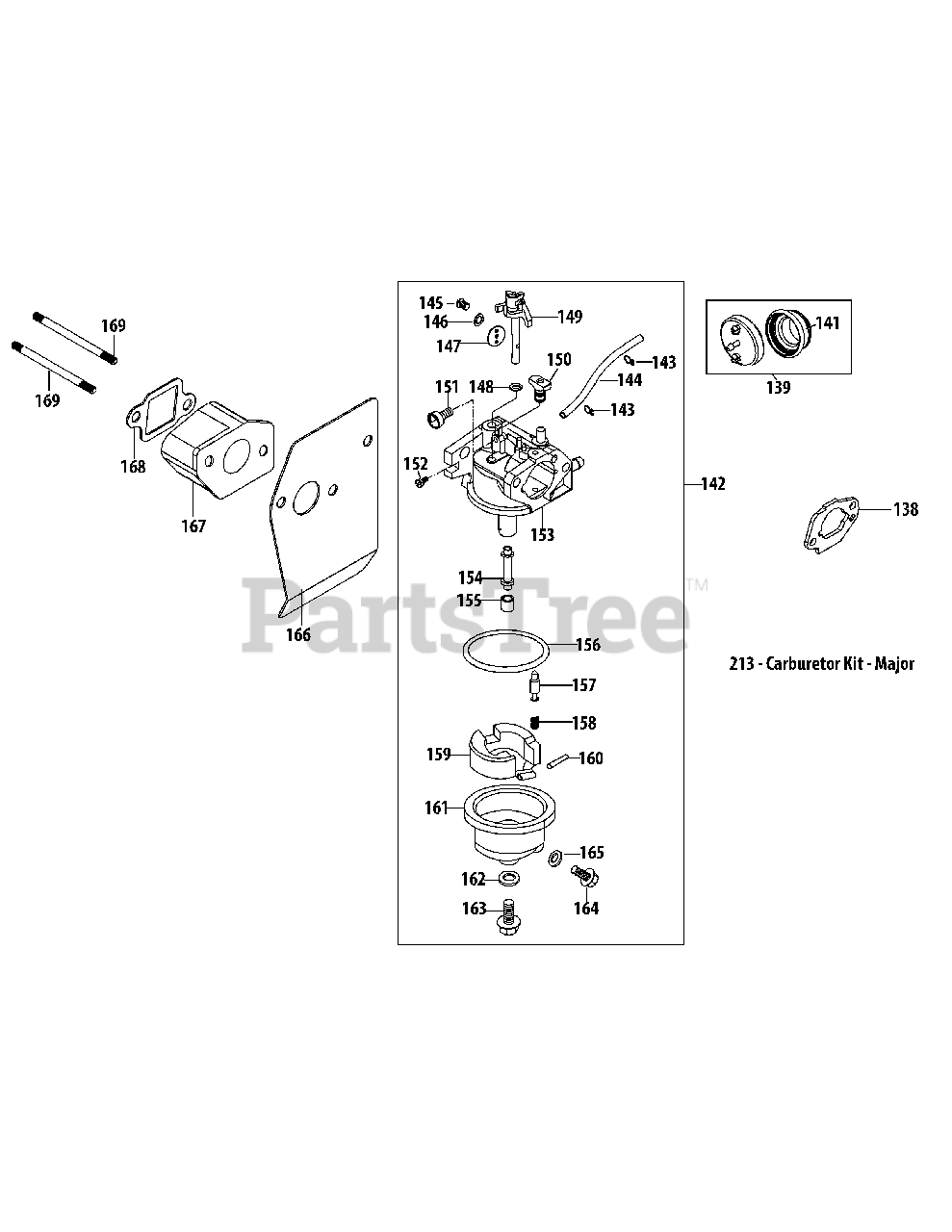

2P70MU Carburetor Parts Diagram

  • Title
138

Cub Cadet 951-11525

Carburetor Gasket Plate

$5.49

$

In Stock, only 1 left!

0

139

Cub Cadet 951-10639A

Primer Assembly

$15.99

$

In Stock, Qty 20+

0

141

Cub Cadet 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

142

Cub Cadet 951-10881

Carburetor Assembly

$90.99

$

In Stock, only 1 left!

0

143

Cub Cadet 723-04093

Primer Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

144

Cub Cadet 951-12473

Primer Hose

$6.49

$

Usually ships in 3-6 days

0

145

Cub Cadet n/a

Screw M3X6 Throttle Plate

$

$

Currently unavailable

146

Cub Cadet n/a

Throttle Plate Lock Washer

$

$

Currently unavailable

147

Cub Cadet n/a

Throttle Plate

$

$

Currently unavailable

148

Cub Cadet n/a

Throttle Shaft Fiber O-Ring

$

$

Currently unavailable

149

Cub Cadet n/a

Throttle Shaft

$

$

Currently unavailable

150

Cub Cadet n/a

Idle Jet Assembly

$

$

Currently unavailable

151

Cub Cadet n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

152

Cub Cadet n/a

Idle Mixture Screw

$

$

Currently unavailable

153

Cub Cadet n/a

Carburetor Body

$

$

Currently unavailable

154

Cub Cadet n/a

Emulsion Tube

$

$

Currently unavailable

155

Cub Cadet n/a

Main Jet

$

$

Currently unavailable

156

Cub Cadet 951-11597

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

157

Cub Cadet n/a

Needle Valve

$

$

Currently unavailable

158

Cub Cadet n/a

Needle Valve Spring

$

$

Currently unavailable

159

$

$

Currently unavailable

160

Cub Cadet n/a

Float Pin

$

$

Currently unavailable

161

Cub Cadet n/a

Fuel Bowl

$

$

Currently unavailable

162

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 10

0

163

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 12

0

164

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 8

0

165

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

166

Cub Cadet 951-12110

Carburetor Gasket

$4.49

$

In Stock, Qty 6

0

167

Cub Cadet 951-11255

Carburetor Insulator

$4.49

$

In Stock, only 4 left!

0

168

Cub Cadet 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

169

Cub Cadet 710-04981

Carb Stud M6X113

$3.99

$

Usually ships in 3-6 days

0

213

Cub Cadet 951-12425A

Carburetor Kit - Major

Note: (Incl.148,150,151,154-160,162,165)

$59.99

$

In Stock, only 1 left!

0
