SC-4213 - Echo Chipper Shredder (SN: 220SCB000001 - 220SCB999999) Body Parts Diagram

Chipper Shredder

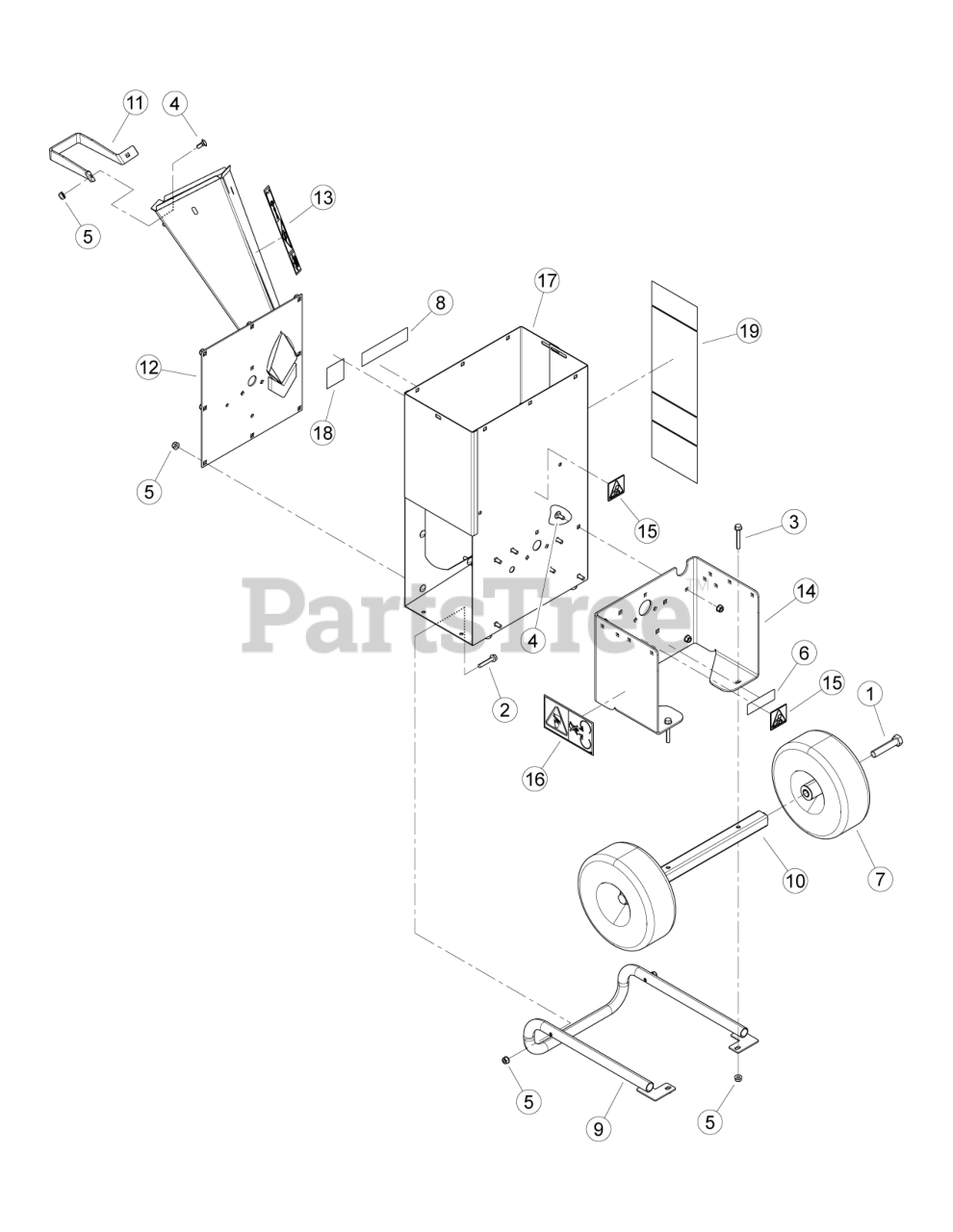

Body Parts Diagram

  • Title

1

Echo YH434000010

BOLT, 5/8 × 3 HEX HD GR5 ZP

$3.99

$

Usually ships in 2-4 days

0

2

Echo YH436000070

BOLT, 5/16 × 1-3/4 FLANGE NC

$2.99

$

Usually ships in 2-4 days

0

3

Echo YH436000080

BOLT, 5/16 × 2-1/4 FLANGE NC

$1.99

$

Usually ships in 2-4 days

0

4

Echo YH434000050

BOLT, 5/16 × 3/4 GR5 CRG NC ZP

$0.99

$

Usually ships in 2-4 days

0

5

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

6

DECAL, SERIAL NUMBER

$

$

Not available

7

Echo YH478000060

ASSEMBLY, 410/350-4 FLAT-FREE WHEEL

$114.99

$

Usually ships in 2-4 days

0

8

Echo YH653000490

DECAL, MODEL SC-4213

$15.99

$

Usually ships in 2-4 days

0

9

Echo YH479001440

WELDMENT, SUPPORT LEG LONG

$148.99

$

Usually ships in 2-4 days

0

10

Echo YH479001570

WELDMENT, AXLE 3 IN CHIPPER

$95.99

$

Usually ships in 2-4 days

0

11

Echo YH466000410

HANDLE, CHIPPER CHUTE 3 IN

$43.99

$

Usually ships in 2-4 days

0

12

Echo YH479001610

ASSEMBLY, 3 IN FRONT PLATE

Note: Includes Item 13

$271.99

$

Usually ships in 2-4 days

0

13

Echo YH653000210

DECAL, 3" CHIPPER CHUTE

$9.49

$

Usually ships in 2-4 days

0

14

Echo YH479001630

ASSEMBLY, BASE 3 IN CHIPPER SERVICE

Note: Includes Items 15 & 16

$129.99

$

Usually ships in 2-4 days

0

15

Echo YH653000170

DECAL, SHIELD DANGER ISO

$3.99

$

Usually ships in 2-4 days

0

16

Echo YH653000180

DECAL, BLADE DANGER ISO

$4.49

$

Usually ships in 2-4 days

0

17

Echo YH479001640

ASSEMBLY, 3" C/S WIDE BODY SERVICE

Note: Includes Items 8, 15, 18 & 19

$831.99

$

Usually ships in 2-4 days

0

18

Echo YH653000220

DECAL, 3" CHIPPER BODY SIDE

$31.99

$

Usually ships in 2-4 days

0

19

Echo YH653000290

DECAL, SPARK ARRESTOR

$4.99

$

Usually ships in 2-4 days

0
