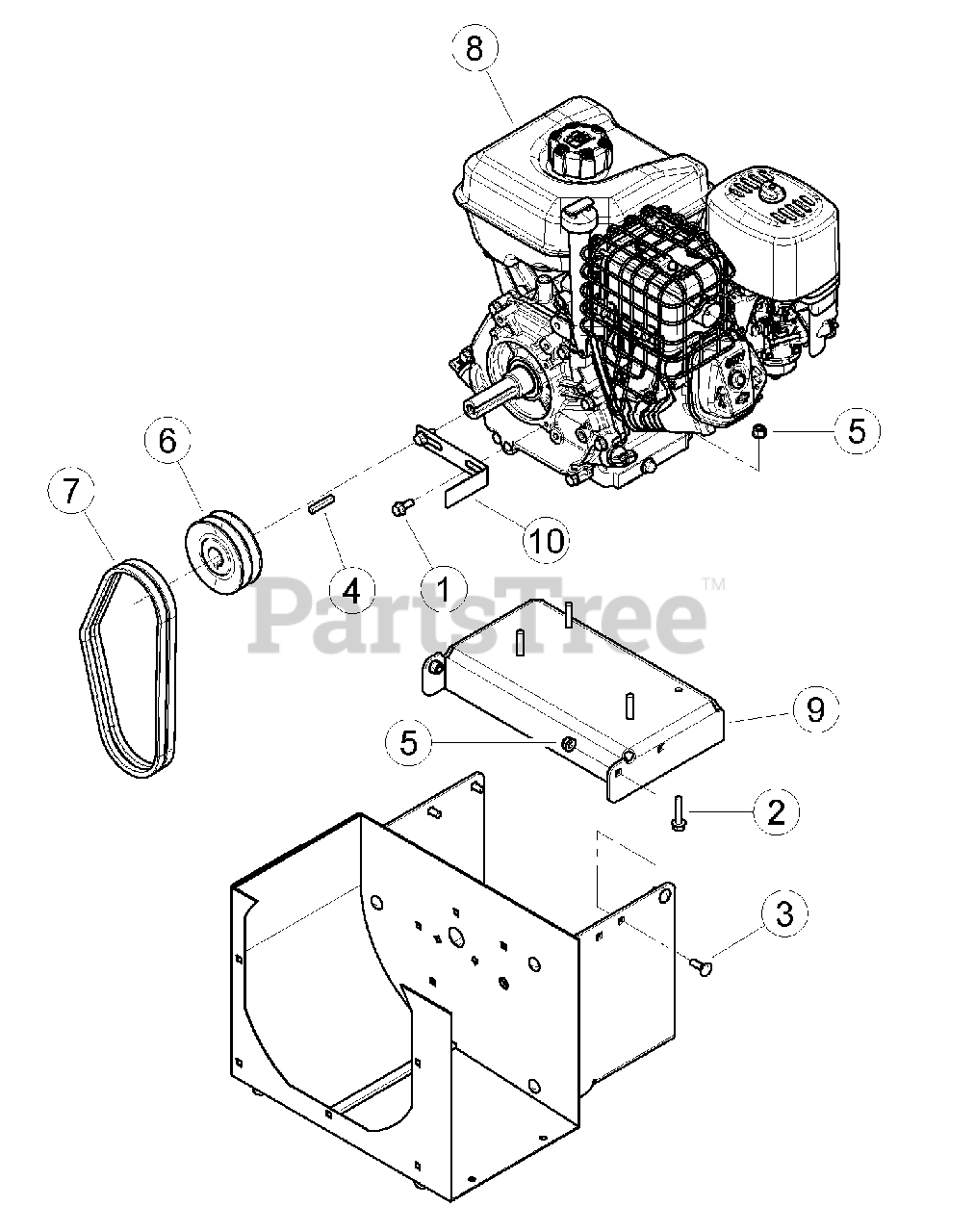

SC 3420 - Bear Cat 3" Chipper/Shredder, 420cc Briggs & Stratton (SN: G01443 & Above) Engine Parts Diagram

3" Chipper/Shredder, 420cc Briggs & Stratton

Engine Parts Diagram

  • Title
1

15118-00

BOLT, 5/16 X 3/4 SERRATED FLANGE NF

$

$

Not available

2

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

3

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

4

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

5

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

6

Bear Cat 17995

PULLEY, 4 X1 2A GROOVE

$118.99

$

Usually ships in 3-7 days

0

7

Bear Cat 17996

BELTS, HAH29.1 EL MATCHED SET

$63.99

$

In Stock, only 2 left!

0

8

ENGINE, 420CC B&S HORIZONTAL

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

9

70354-12

PLATE, ENGINE MOUNTING

$

$

Not available

10

Bear Cat 74374-12

GUIDE, BELT

$

$

Not available
