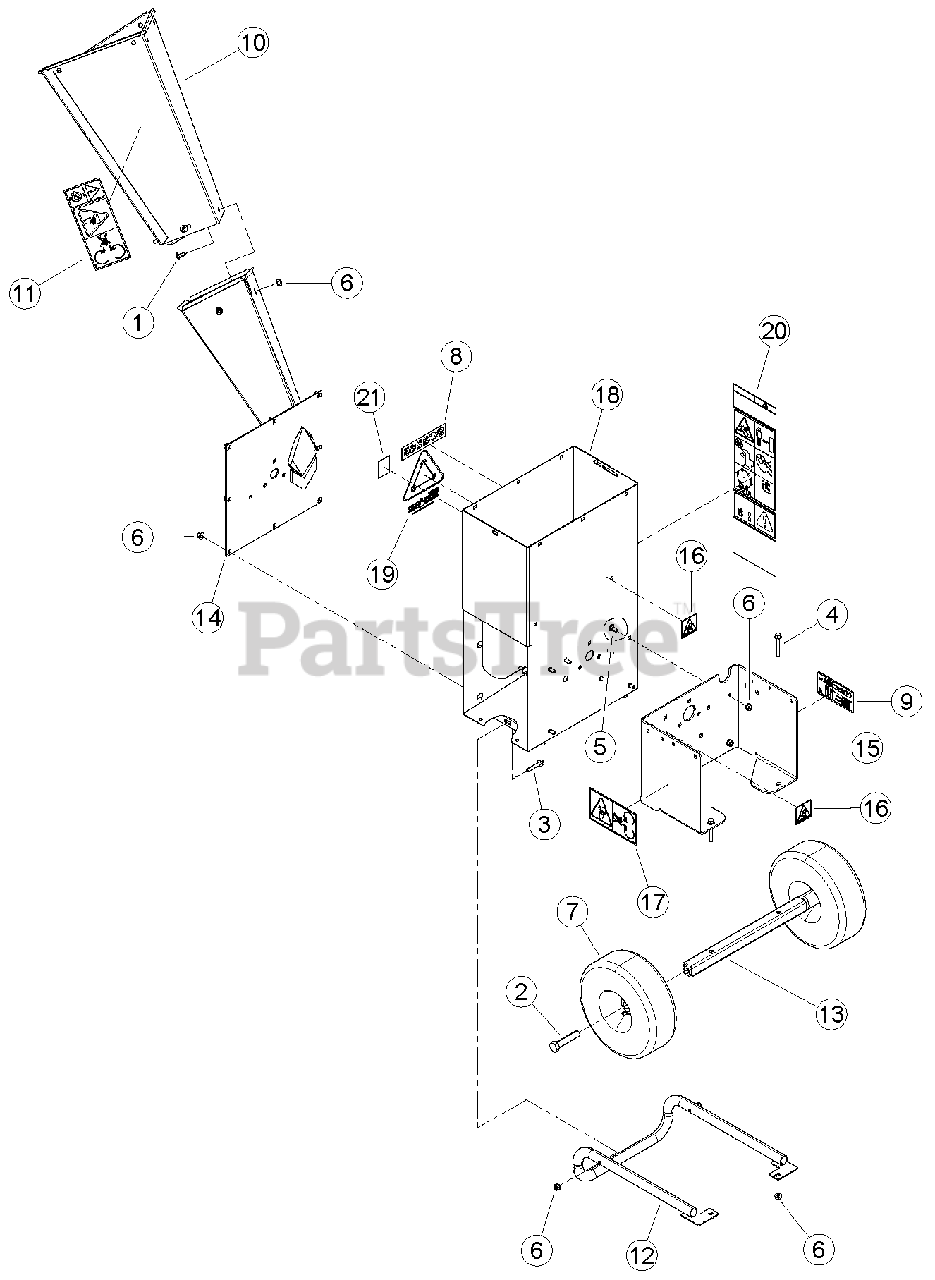

SC 3342 - Bear Cat 3" Chipper/Shredder, 342cc Briggs & Stratton (SN: D00339 & Above) Body CE Compliant Parts Diagram

3" Chipper/Shredder, 342cc Briggs & Stratton

Body CE Compliant Parts Diagram

  • Title
1

0103-0909-00

BOLT, 5/16-18 X 3/4 CRG GR5 SN

$

$

Not available

2

15019

BOLT, 5/8 X 3 HEX GR5 ZP

$

$

Not available

3

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15135-00

BOLT, 5/16 X 2-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

6

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

7

Bear Cat 16003

ASSEMBLY, WHEEL 410/350-4
(Superseded to 33591-00)

$72.99

$

Usually ships in 3-7 days

0

8

Bear Cat 36026-00

DECAL, MODEL SC3342

$7.99

$

Usually ships in 3-7 days

0

9

Bear Cat 32176-00

DECAL, SC3342 CE INFO AND NOISE

$18.99

$

Usually ships in 3-7 days

0

10

Bear Cat 71771

ASSEMBLY, 3" CHIPPER CHUTE EXTENSION

Note: (INCLUDES ITEM 11)

$297.99

$

Usually ships in 3-7 days

0

11

Bear Cat 31989-00

DECAL, 3" CHIPPER CHUTE

$20.99

$

Usually ships in 3-7 days

0

12

Bear Cat 77251-12

WELDMENT, SUPPORT LEG LONG

$

$

Not available

12

Bear Cat 77252-12

WELDMENT, SUPPORT LEG SHORT (SC3206XE ONLY)

$

$

Not available

13

Bear Cat 77254-12

WELDMENT, AXLE 3 IN CHIPPER

$

$

Not available

14

77265-35

WELDMENT, CHIPPER CHUTE

$

$

Not available

15

Bear Cat 77339-00

ASSEMBLY, BASE 3 IN CHIPPER SERVICE PART

Note: (INCLUDES ITEMS 16 & 17)

$235.99

$

Usually ships in 3-7 days

0

16

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

17

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

18

Bear Cat 77341-00

ASSEMBLY, 3" C/S WIDE BODY SERVICE PART

Note: (INCLUDES ITEMS 16 & 19-21)

$721.99

$

Usually ships in 3-7 days

0

18

Bear Cat 77300-00

ASSEMBLY, 3" C/S NARROW BODY SERVICE PART (SC3206XE ONLY)

Note: (INCLUDES ITEMS 8, 16 & 19-21)

$701.99

$

Usually ships in 3-7 days

0

16

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

19

Bear Cat 31393-00

DECAL, SHRED IT

$13.99

$

Usually ships in 3-7 days

0

20

Bear Cat 31990-00

DECAL, 3" CHIPPER BODY SIDE

$27.99

$

Usually ships in 3-7 days

0

21

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0
