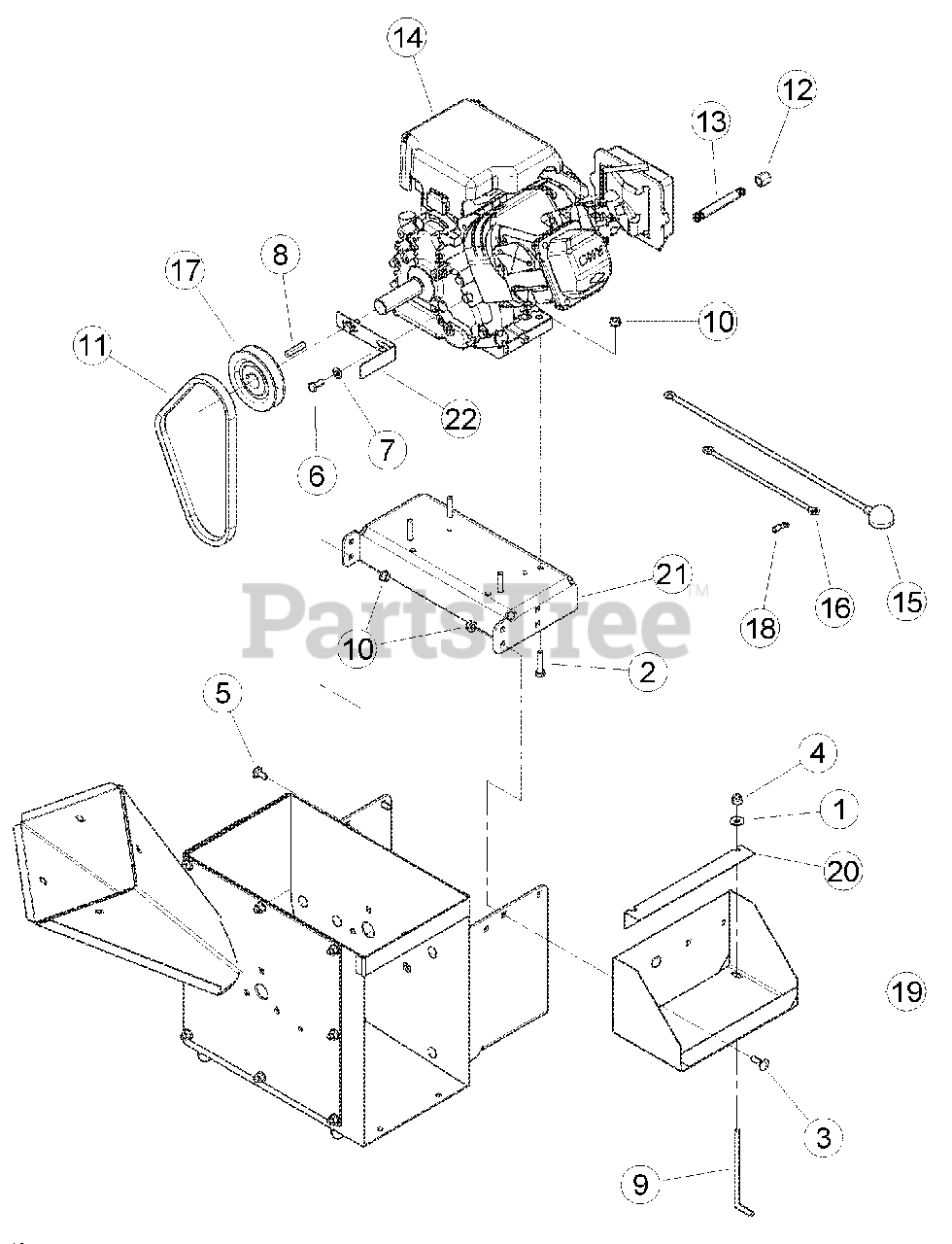

SC 3342 - Bear Cat 3" Chipper/Shredder, 342cc Briggs & Stratton (SN: C03478 - D00187) Engine - Single Belt (SC3206, SC3305, SC3305E) Parts Diagram

3" Chipper/Shredder, 342cc Briggs & Stratton

Engine - Single Belt (SC3206, SC3305, SC3305E) Parts Diagram

  • Title

1

Bear Cat 15250

WASHER, 5/16 FLAT ZP (SC3305E ONLY)

$

$

Not available

2

15282

BOLT, 5/16 X 1_1/2 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15301

BOLT, 5/16 X 1 GR5 CRG ZP (SC3305E ONLY)

$

$

Not available

4

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP (SC3305E ONLY)

$

$

Not available

5

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

6

Bear Cat 15381

BOLT, 5/16-24 X 3/4 HEX HD GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

7

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

8

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

9

Bear Cat 15419

BOLT, 5/16 X 8-3/4 L-TYP BATTERY (SC3305E ONLY)

$32.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15818-00

NUT, 5/16 FLANGE TOPLOCK

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 16043

BELT, 29" C/S

$63.99

$

In Stock, only 1 left!

0

12

Bear Cat 17496

PIPE CAP, 1/4" GALV. HEX HEAD

$10.99

$

Usually ships in 3-7 days

0

13

Bear Cat 17497

PIPE NIPPLE, 1/4 X 4 GALVANIZED

$

$

Not available

14

ENGINE,CHP-SHD 305CC BRIGGS ELEC (FOR SERVICE SEE ENGINE OWNERS MANUAL OR YOUR NEAREST BRIGGS & STRATTON ENGINE DEALER)

$

$

Not available

14

ENGINE, 900 SERIES B+S HORIZONTAL (FOR SERVICE SEE ENGINE OWNERS MANUAL OR YOUR NEAREST BRIGGS & STRATTON ENGINE DEALER)

$

$

Not available

14

ENGINE, 305CC B+S HORIZONTAL (FOR SERVICE SEE ENGINE OWNERS MANUAL OR YOUR NEAREST BRIGGS & STRATTON ENGINE DEALER)

$

$

Not available

15

Bear Cat 17888

CABLE, 33" POS R/R WITH BOOT (SC3305E ONLY)

$66.99

$

Usually ships in 3-7 days

0

16

Bear Cat 17889

CABLE, 9" NEG R/R (SC3305E ONLY)

$67.99

$

Usually ships in 3-7 days

0

17

Bear Cat 17958

PULLEY, CAST 4" OD,1"BORE,B GRV

$83.99

$

Usually ships in 3-7 days

0

17

Bear Cat 17959

PULLEY, CAST 4"OD,3/4"BORE,B GR (SC3206 ONLY)

$81.99

$

Usually ships in 3-7 days

0

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

18

Bear Cat 36230-00

TERMINAL, 14/16 GA ELECTRICAL (SC3305E ONLY)

$1.99

$

Usually ships in 3-7 days

0

19

Bear Cat 70141

WELDMENT, BATTERY BOX (SC3305E ONLY)

$

$

Not available

20

Bear Cat 70144

ANGLE, BATTERY HOLD DOWN (SC3305E ONLY)

$15.99

$

Usually ships in 3-7 days

0

21

Bear Cat 74249-12

PLATE, ENGINE MOUNTING

$

$

Not available

22

Bear Cat 74374-12

GUIDE, BELT

$

$

Not available
