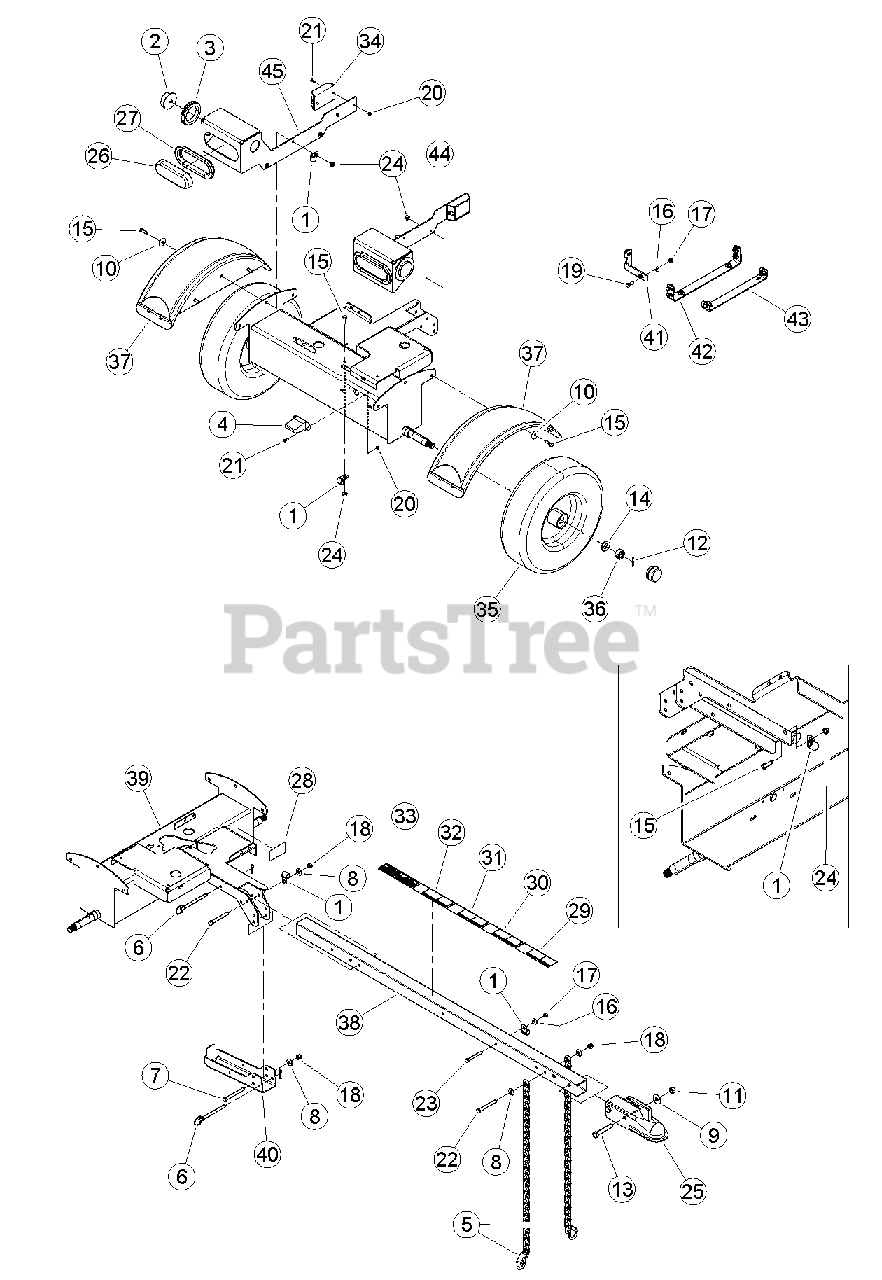

SC 3306 - Bear Cat 3" Chipper/Shredder, 306cc Briggs & Stratton (SN: E05977 & Above) Optional Trailer Parts Diagram

3" Chipper/Shredder, 306cc Briggs & Stratton

Optional Trailer Parts Diagram

  • Title
1

0101-0001-00

NUT, 3/4 NF HEX SLOTTED ZP

$

$

Not available

2

14048-00

CLAMP, 9/16 COATED

$

$

Not available

3

Bear Cat 14366-00

GROMMET, CLEARANCE LIGHT

$

$

Not available

4

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

5

Bear Cat 14381-00

CHAIN, SAFETY 5000 LB W/ LATCH

$

$

Not available

6

Bear Cat 14786-00

DECAL, ECHO BEARCAT 14.12 X 4.00

$78.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14823-00

PIN, 3/8 HITCH

$

$

Not available

8

Bear Cat 15003

BOLT, 5/16-18 X 3/4 GR5 HEX HD

$

$

Not available

9

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

10

Bear Cat 15040

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15049

NUT, 1/2-13 GR5 CENTERLOCK GRB

$

$

Not available

12

15068

PIN, 5/32 X 1-1/4 COTTER PIN ZP

$

$

Not available

13

Bear Cat 15086

BOLT, 1/2 X 3 GR5 HEX HD ZP

$

$

Not available

14

15098

WASHER, 3/4" SAE FLAT

$

$

Not available

15

Bear Cat 15219

BOLT, 5/16-18 X 1 GR5 HHCS

$

$

Not available

16

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

17

Bear Cat 15356

NUT, 5/16-18 NE NYLOCK

$

$

Not available

18

Bear Cat 15388

NUT, 3/8-16 NE NYLOCK

$

$

Not available

19

Bear Cat 15396

BOLT, 5/16-18 X 7/8 HHCS GR5

$

$

Not available

20

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

21

Bear Cat 15460

SCREW, #10-24 X 3/4" PAN HD PH ZP MCH

$

$

Not available

22

Bear Cat 15501

BOLT, 3/8 X 3-1/4 HEX HD GR5 ZP

$

$

Not available

23

15560

BOLT, 5/16-18 X 2-3/4 GR5 HCPS

$

$

Not available

24

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

25

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

26

Bear Cat 17988

COUPLER, TRAILER HITCH

$90.99

$

Usually ships in 3-7 days

0

27

Bear Cat 31736-00

TAIL LIGHT, OVAL LED

$51.99

$

Usually ships in 3-7 days

0

28

31737-00

GROMMET, OVAL TAIL LIGHT

$

$

Not available

29

Bear Cat 32158-00

DECAL, 4.80-8 LOAD RATING

$12.99

$

Usually ships in 3-7 days

0

30

32361-00

DECAL, NATM COMPLIANCE

$

$

Not available

31

33170-00

LIGHT, CLEARANCE/MARKER RND RED LED

$

$

Not available

32

Bear Cat 36093-00

ASSEMBLY, TIRE 4.8-8

$177.99

$

Usually ships in 3-7 days

0

33

Bear Cat 74911-00

KIT, LED AMBER LIGHT

Note: (INCLUDES PN 33875-00 & 33876-00)

$55.99

$

Usually ships in 3-7 days

0

34

Bear Cat 76624-00

FENDER, BLACK PLASTIC DRILLED

$92.99

$

Usually ships in 3-7 days

0

35

Bear Cat 77367-12

STAND, JACK

$78.99

$

Usually ships in 3-7 days

0

36

Bear Cat 77437-12

BRACKET, ENGINE BASE

$49.99

$

Usually ships in 3-7 days

0

37

Bear Cat 77485-12

BRACKET, RIGHT TAIL LIGHT

$169.99

$

Usually ships in 3-7 days

0

38

Bear Cat 77486-12

BRACKET, LEFT TAIL LIGHT

$169.99

$

Usually ships in 3-7 days

0

39

77499-00

ASSEMBLY, HITCH POLE

Note: (INCLUDES ITEMS 40-44)

$

$

Not available

40

Bear Cat 32327-00

DECAL, SAFETY CHAINS

$7.99

$

Usually ships in 3-7 days

0

41

Bear Cat 32328-00

DECAL, TRAILER ELECTRICAL

$7.99

$

Usually ships in 3-7 days

0

42

32330-00

DECAL, CHECK WHEELS

$

$

Not available

43

32332-00

DECAL, SAFE COUPLING

$

$

Not available

44

Bear Cat 32345-00

DECAL, WARNING TOWING SPEED

$7.99

$

Usually ships in 3-7 days

0

45

77659-12

WELDMENT, SC3" TRAILER

$

$

Not available

Bear Cat 32346-00

HARNESS, 3" CS TRAILER

Note: (NOT SHOWN)

$228.99

$

Usually ships in 3-7 days

0

32362-00

DECAL, SAFE TOWING SPEED SPANISH/PORTUGESE

Note: (NOT SHOWN)

$

$

Not available

33875-00

TERMINAL, RING #10-18 GA

Note: (NOT SHOWN)

$

$

Not available

33876-00

CONNECTOR, BUTT 18-22 GA

Note: (NOT SHOWN)

$

$

Not available

77504-00

KIT, SPANISH/PORTUGESE TRAILER/COUPLER DECAL

Note: (NOT SHOWN)

$

$

Not available
