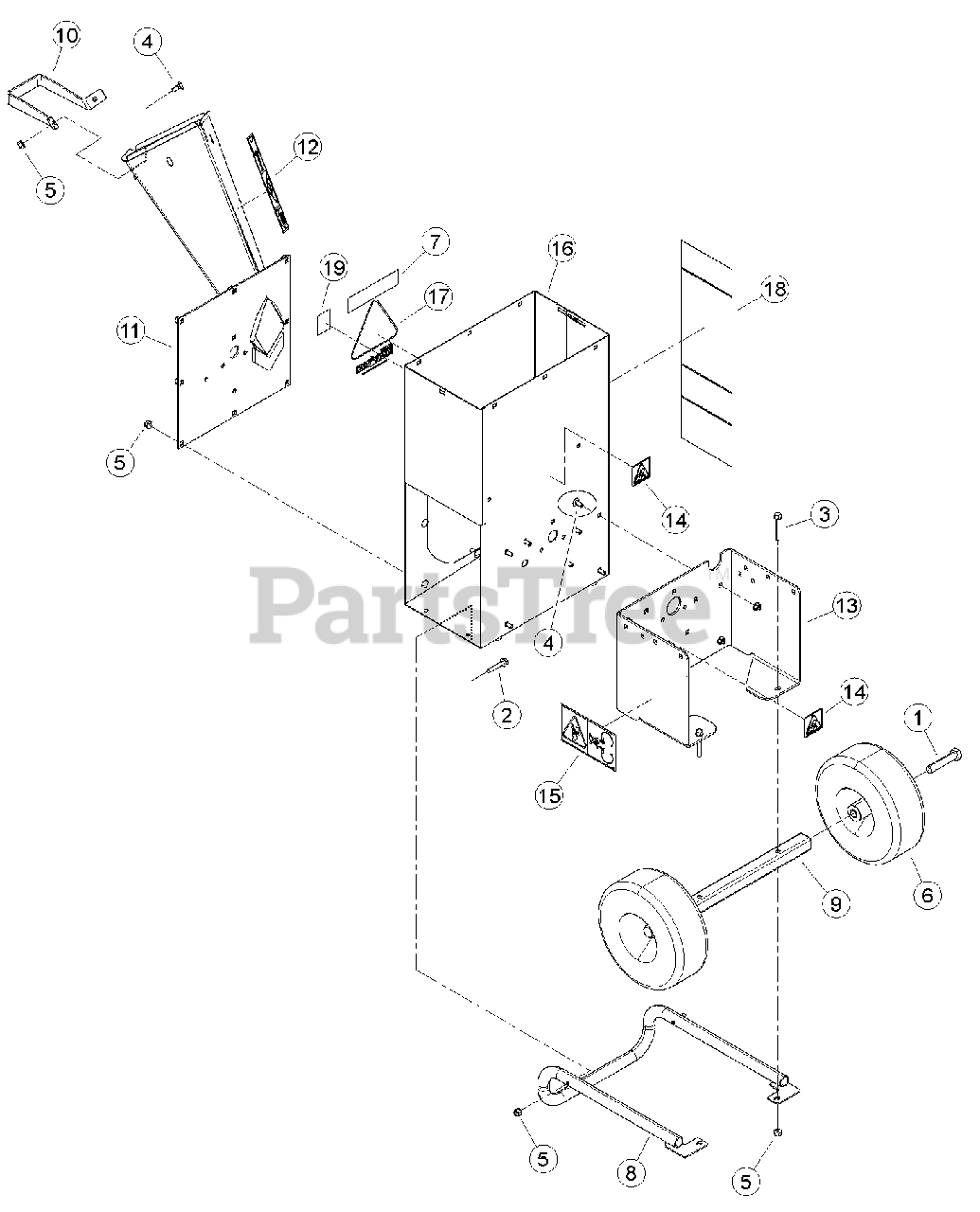

SC 3306 - Bear Cat 3" Chipper/Shredder, 306cc Briggs & Stratton (SN: E05977 & Above) Body (Non-CE Compliant) Parts Diagram

3" Chipper/Shredder, 306cc Briggs & Stratton

Body (Non-CE Compliant) Parts Diagram

  • Title

1

15019

BOLT, 5/8 X 3 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15135-00

BOLT, 5/16 X 2-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

5

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

6

ASSEMBLY, 410/350-4 PNEUMATIC WHEEL (WAS 16003, OBSOLETE. FOR SERVICE ORDER PN 33591-00)

$

$

Not available

6

Bear Cat 33591-00

ASSEMBLY, 410/350-4 FLAT-FREE WHEEL

$72.99

$

Usually ships in 3-7 days

0

7

35114-00

DECAL, MODEL SC3306

$

$

Not available

8

Bear Cat 77251-12

WELDMENT, SUPPORT LEG LONG

$

$

Not available

9

Bear Cat 77254-12

WELDMENT, AXLE 3 IN CHIPPER

$

$

Not available

10

Bear Cat 77285-35

HANDLE, CHIPPER CHUTE 3 IN

$60.99

$

Usually ships in 3-7 days

0

11

Bear Cat 77299-00

ASSEMBLY, 3 IN FRONT PLATE COMP

Note: (INCLUDES ITEM 12)

$336.99

$

Usually ships in 3-7 days

0

12

Bear Cat 31989-00

DECAL, 3" CHIPPER CHUTE

$20.99

$

Usually ships in 3-7 days

0

13

Bear Cat 77339-00

ASSEMBLY, BASE 3 IN CHIPPER SERVICE

Note: (INCLUDES ITEMS 14 & 15)

$235.99

$

Usually ships in 3-7 days

0

14

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

15

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

16

Bear Cat 77341-00

ASSEMBLY, 3" C/S WIDE BODY SERVICE

Note: (INCLUDES ITEMS 14 & 17-19)

$721.99

$

Usually ships in 3-7 days

0

17

Bear Cat 31393-00

DECAL, SHRED IT

$13.99

$

Usually ships in 3-7 days

0

18

Bear Cat 31990-00

DECAL, 3" CHIPPER BODY SIDE

$27.99

$

Usually ships in 3-7 days

0

19

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0
