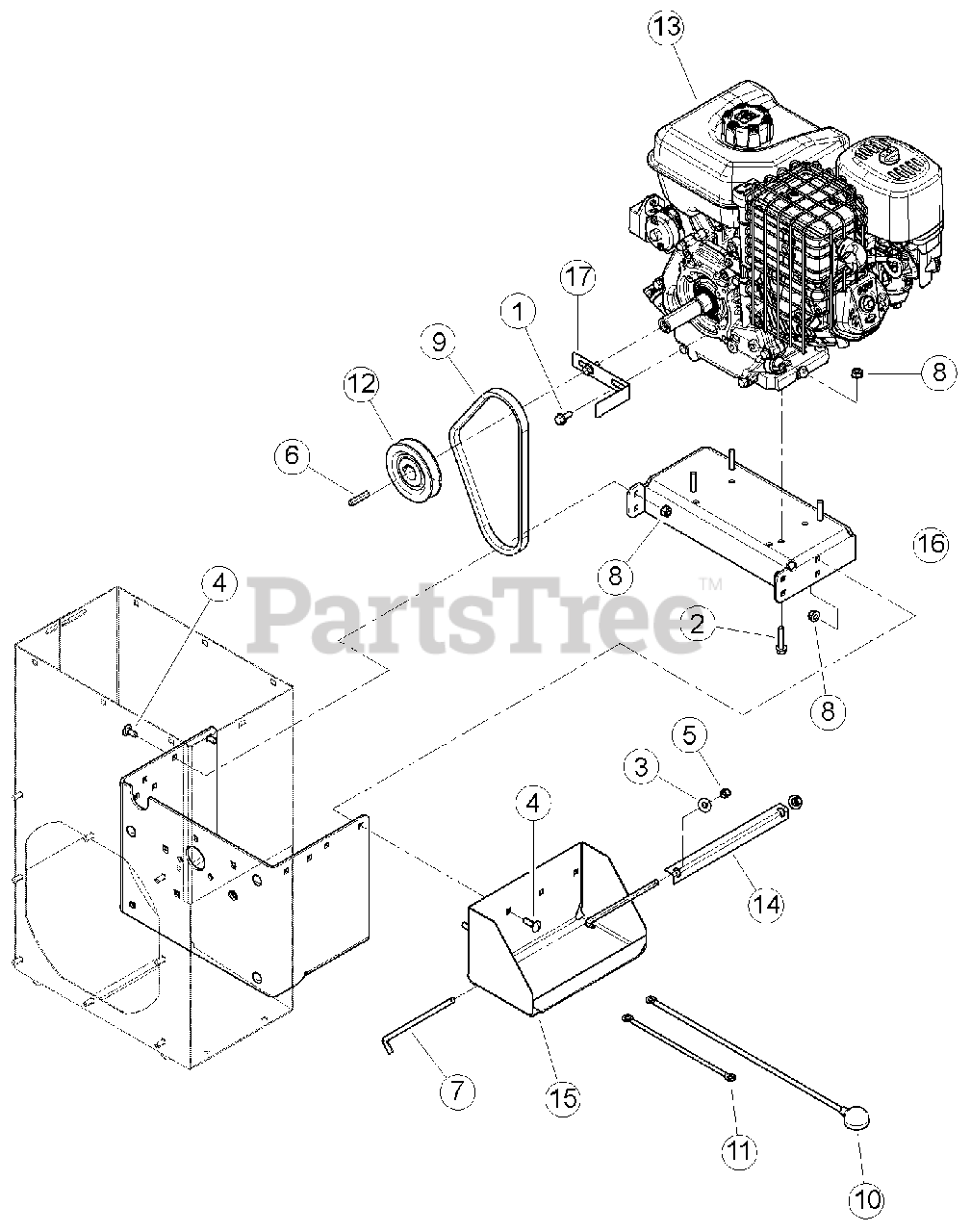

SC 3305 - Bear Cat 3" Chipper/Shredder, 305cc Briggs & Stratton (SN: D00339 & Above) Engine - Single Belt Parts Diagram

3" Chipper/Shredder, 305cc Briggs & Stratton

Engine - Single Belt Parts Diagram

  • Title
1

15118-00

BOLT, 5/16 X 3/4 SERRATED FLANGE NF

$

$

Not available

2

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

3

Bear Cat 15250

WASHER, 5/16 FLAT ZP (SC3305E ONLY)

$

$

Not available

4

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP (SC3305E ONLY)

$

$

Not available

5

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP (SC3305E ONLY)

$

$

Not available

6

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

7

Bear Cat 15419

BOLT, 5/16 X 8-3/4 L-TYPE BATTERY (SC3305E ONLY)

$32.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

9

Bear Cat 16043

BELT, 29" C/S

$63.99

$

Usually ships in 3-7 days

0

10

Bear Cat 17888

CABLE, 33" POS - R/R WITH BOOT (SC3305E ONLY)

$66.99

$

Usually ships in 3-7 days

0

11

Bear Cat 17889

CABLE, 9" NEG - R/R (SC3305E ONLY)

$67.99

$

Usually ships in 3-7 days

0

12

Bear Cat 17958

PULLEY, CAST 4" OD 1" BORE B GRV

$83.99

$

Usually ships in 3-7 days

0

13

ENGINE, 306CC B&S HORIZONTAL ELECTRIC

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

13

ENGINE, 306CC B&S HORIZONTAL

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

13

ENGINE, 900 SERIES B&S HORIZONTAL

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

14

Bear Cat 70144

ANGLE, BATTERY HOLD DOWN (SC3305E ONLY)

$15.99

$

Usually ships in 3-7 days

0

15

Bear Cat 70510-12

WELDMENT, BATTERY BOX (SC3305E ONLY)

$

$

Not available

16

Bear Cat 74249-12

PLATE, ENGINE MOUNTING

$

$

Not available

17

Bear Cat 74374-12

GUIDE, BELT

$

$

Not available

Bear Cat 36230-00

TERMINAL, 14/16 GA ELECTRICAL - SC3305E ONLY

Note: (NOT SHOWN)

$1.99

$

Usually ships in 3-7 days

0
