SC 3305 - Bear Cat 3" Chipper/Shredder, 305cc Briggs & Stratton (SN: A08787 - C03277) Rotor And Bearing (B&S ENGINE MODELS) Parts Diagram

3" Chipper/Shredder, 305cc Briggs & Stratton

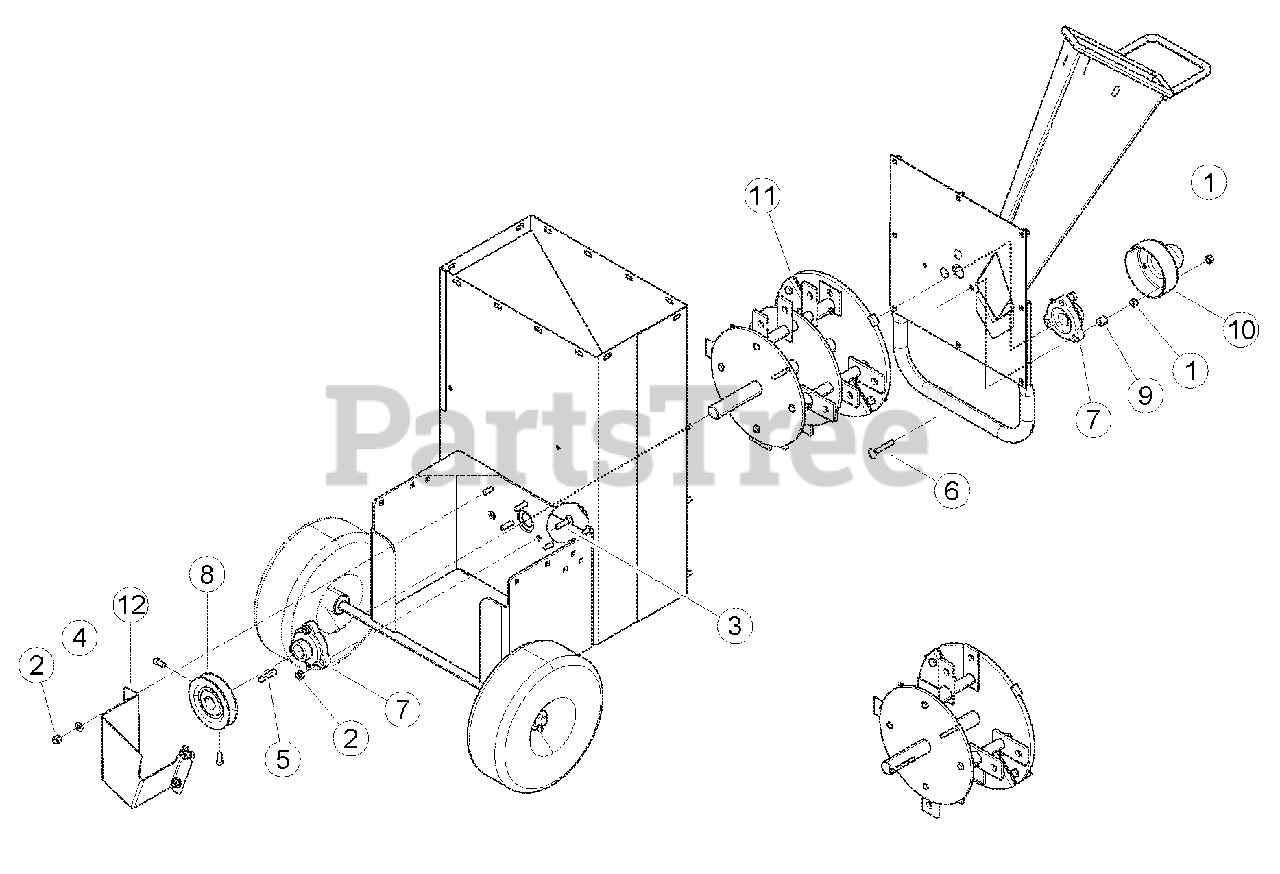

Rotor And Bearing (B&S ENGINE MODELS) Parts Diagram

  • Title

1

15178

NUT, 5/16 CENTERLOCK NC ZP

$

$

Not available

2

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

3

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

4

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

5

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

6

Bear Cat 15477

BOLT, 5/16 X 2 CRG GR5 NC ZP

$

$

Not available

7

Bear Cat 16234

BEARING, 1" FLUSHMOUNT CAST W/COLLAR

$

$

Not available

8

Bear Cat 17958

PULLEY, CAST 4" OD, 1"BORE, B GRV

$83.99

$

Usually ships in 3-7 days

0

Bear Cat 15131

SET SCREW, 5/16-18 X 5/8 SQ HD

$

$

Not available

9

Bear Cat 70285

SPACER, .54OD X .50" LG

$6.49

$

Usually ships in 3-7 days

0

10

Bear Cat 70760

CAP, ROTOR SHAFT END CAP

$13.99

$

Usually ships in 3-7 days

0

11

Bear Cat 70970

ASSEMBLY, WIDE ROTOR W/RECT KNIVES
(Superseded to 74209-00)

$698.99

$

Usually ships in 3-7 days

0

11

Bear Cat 71380

ASSY, NAR. ROTOR-RECT KNIVES (SC3206 ONLY)
(Superseded to 77591-00)

$505.99

$

Usually ships in 3-7 days

0

12

Bear Cat 74358-12

SHIELD, LOWER

$

$

Not available
