SC 3305 - Bear Cat 3" Chipper/Shredder, 305cc Briggs & Stratton (SN: A08787 - C03277) Body Parts Diagram

3" Chipper/Shredder, 305cc Briggs & Stratton

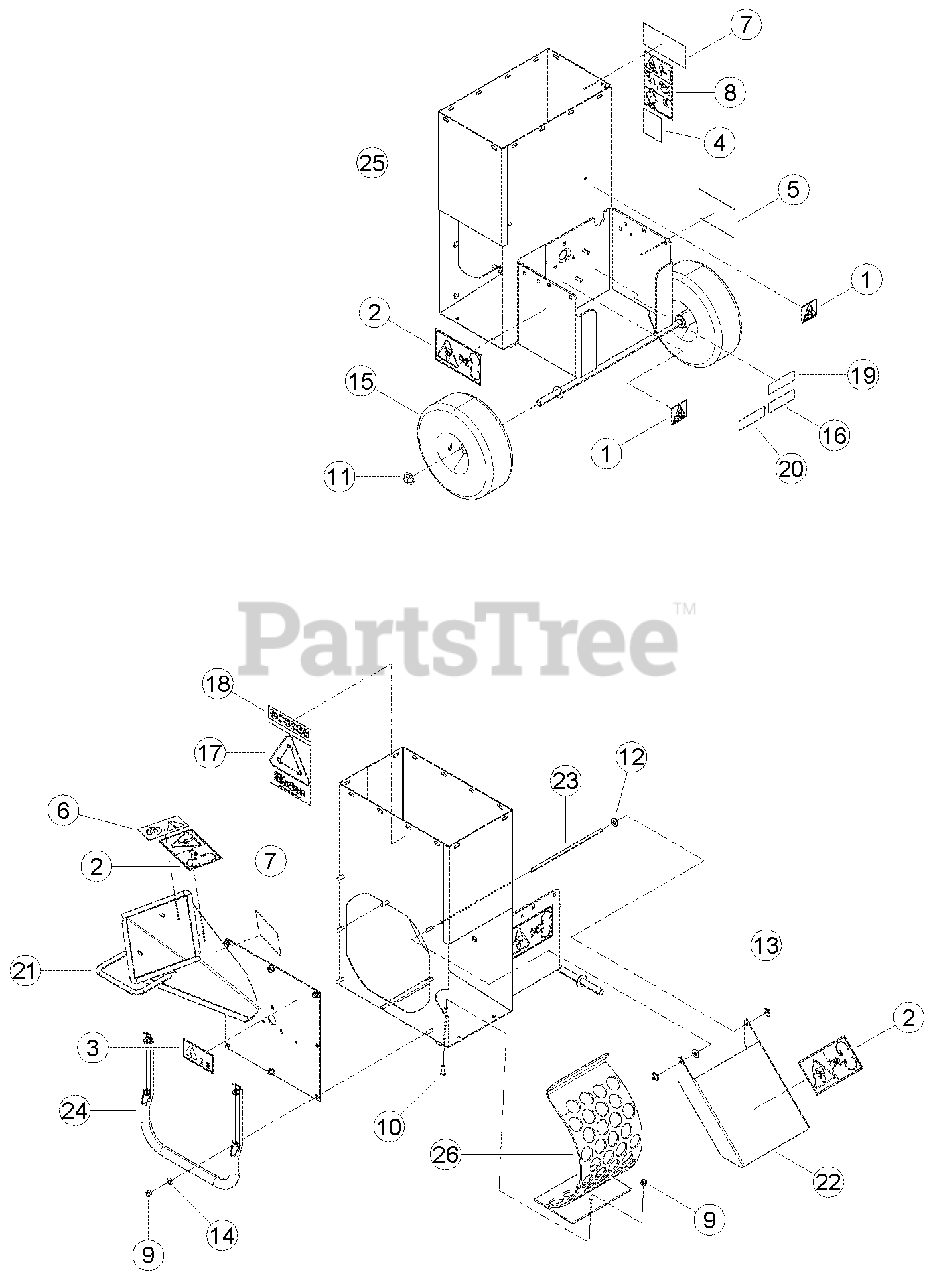

Body Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

3

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

4

Bear Cat 14342-00

DECAL, 111 DB (SC3206XE, SC3265XE & SC3270XE)

$9.49

$

Usually ships in 3-7 days

0

4

Bear Cat 14343-00

DECAL, 112 DB (SC3305XE & SC3342XE)

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14703-00

DECAL, ROTOR ENGAGEMENT ISO

$10.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14938-00

DECAL, CHIPPER SIZE

$3.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

8

Bear Cat 14965-00

DECAL, PROTECTION

$7.49

$

Usually ships in 3-7 days

0

9

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15396

BOLT, 5/16 X 7/8 HHCS NC GR5 ZP

$

$

Not available

11

Bear Cat 15406

PUSHNUT, 5/8 ZP

$2.49

$

In Stock, Qty 5

0

12

Bear Cat 15409

WASHER, 5/16 ID. 7/8 OD. NYLON FLAT

$

$

Not available

13

Bear Cat 15411

PUSHNUT, 5/16 ZP

$1.49

$

Usually ships in 3-7 days

0

14

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

15

Bear Cat 16003

WHEEL ASSY, 410/350-4
(Superseded to 33591-00)

$72.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

17

Bear Cat 31393-00

DECAL, SHRED IT

$13.99

$

Usually ships in 3-7 days

0

18

Bear Cat 31457-00

DECAL, MODEL SC3265

$5.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36022-00

DECAL, MODEL SC3206

$3.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36239-00

DECAL, MODEL SC3270

$14.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18939-00

DECAL, MODEL SC3305

$

$

Not available

18

Bear Cat 36023-00

DECAL, MODEL SC3305E

$12.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36026-00

DECAL, MODEL SC3342

$7.99

$

Usually ships in 3-7 days

0

19

31482-00

DECAL, SC3265 INFORMATION (SC3265XE)

$

$

Not available

19

16888

DECAL, 5.0 HP INFO (SC3206XE)

$

$

Not available

19

Bear Cat 16889

DECAL, 8.0 HP INFO (SC3270XE & SC3305XE)

$9.49

$

Usually ships in 3-7 days

0

19

18656-00

DECAL, 11 HP INFO (SC33420XE)

$

$

Not available

20

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

21

70023

WELDMENT, CHIPPER CHUTE

$

$

Not available

22

Bear Cat 70067

DISCHARGE DOOR

$

$

Not available

22

Bear Cat 70028

COVER, 5 HP DISCHARGE (SC3206)
(Superseded to 70194)

$95.99

$

Usually ships in 3-7 days

0

23

Bear Cat 70088

SHAFT, DOOR PIVOT

$11.99

$

Usually ships in 3-7 days

0

23

Bear Cat 70087

SHAFT, DOOR PIVOT (SC3206)

$18.99

$

Usually ships in 3-7 days

0

24

Bear Cat 75612-35

TUBE, LEG CHIPPER/SHREDDER

$75.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75613-35

WELDMENT, 8 HP WIDE FRAME

$824.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75614-35

WELDMENT, SHREDDER FRAME 5 HP (SC3206)

$789.99

$

Usually ships in 3-7 days

0

26

Bear Cat 76200-12

SCREEN, WELDMENT WIDE CRS TAPERED

$

$

Not available

26

Bear Cat 76208-12

SCREEN, WELDMENT NARROW CRS TAPERED (SC3206)

$

$

Not available
