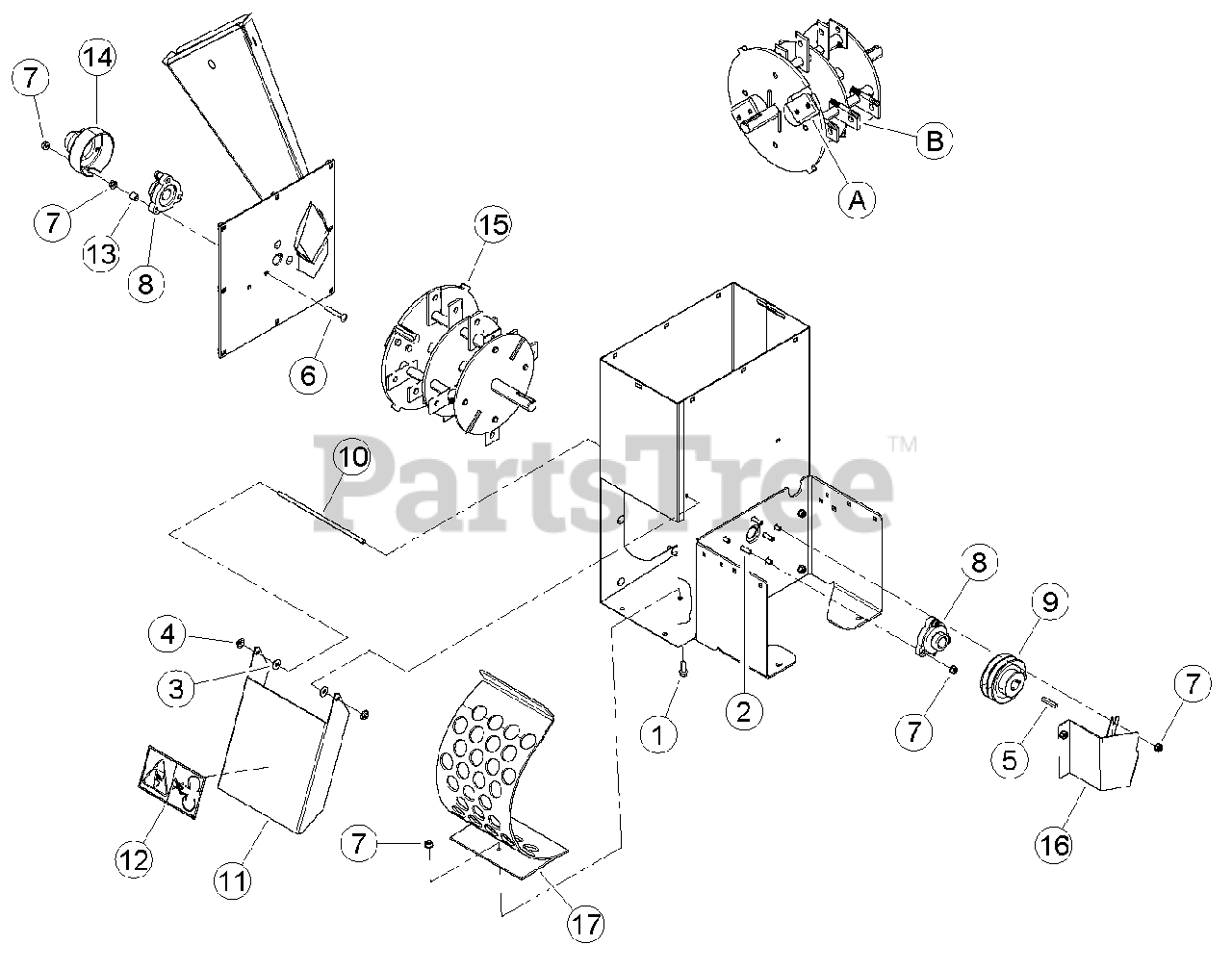

SC 3265 - Bear Cat 3" Chipper/Shredder, 265cc Subaru (SN: D00339 & Above) Rotor & Bearings Non-CE Compliant Parts Diagram

3" Chipper/Shredder, 265cc Subaru

Rotor & Bearings Non-CE Compliant Parts Diagram

  • Title
1

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

2

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

3

Bear Cat 15409

WASHER, 5/16 ID 7/8 OD NYLON FLAT

$

$

Not available

4

Bear Cat 15411

PUSHNUT, 5/16" ZP

$1.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

6

Bear Cat 15477

BOLT, 5/16 X 2CRG GR5 NC ZP

$

$

Not available

7

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

8

Bear Cat 16234

BEARING, 1" FLUSHMOUNT CAST W/COLLAR

$

$

Not available

9

Bear Cat 17995

PULLEY, 4 X 1 2A GROOVE

$118.99

$

Usually ships in 3-7 days

0

10

Bear Cat 70088

SHAFT, DOOR PIVOT

$11.99

$

Usually ships in 3-7 days

0

11

Bear Cat 70195

DOOR, 8 HP DISCHARGE W/ DECAL

Note: (INCLUDES ITEM 12)

$67.99

$

Usually ships in 3-7 days

0

12

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

13

Bear Cat 70285

SPACER, .54 OD X .50" LG

$6.49

$

Usually ships in 3-7 days

0

14

Bear Cat 70760

CAP, ROTOR SHAFT END CAP

$13.99

$

Usually ships in 3-7 days

0

15

Bear Cat 74209-00

ASSEMBLY, BALANCED RENTAL ROTOR

$698.99

$

Usually ships in 3-7 days

0

A

Bear Cat 70738

KIT, TOOL STEEL BLADE

$129.99

$

Usually ships in 3-7 days

0

B

Bear Cat 70973

KIT, 3" WIDE SHREDDER KNIVES

$330.99

$

Usually ships in 3-7 days

0

16

Bear Cat 74358-12

SHIELD, LOWER

$

$

Not available

17

Bear Cat 77388-12

WELDMENT, WIDE COARSE TAPERED

$

$

Not available
