SC 300 K (12AVB2KL710) - Cub Cadet Walk-Behind Mower (2023) Transmission Parts Diagram

Walk-Behind Mower

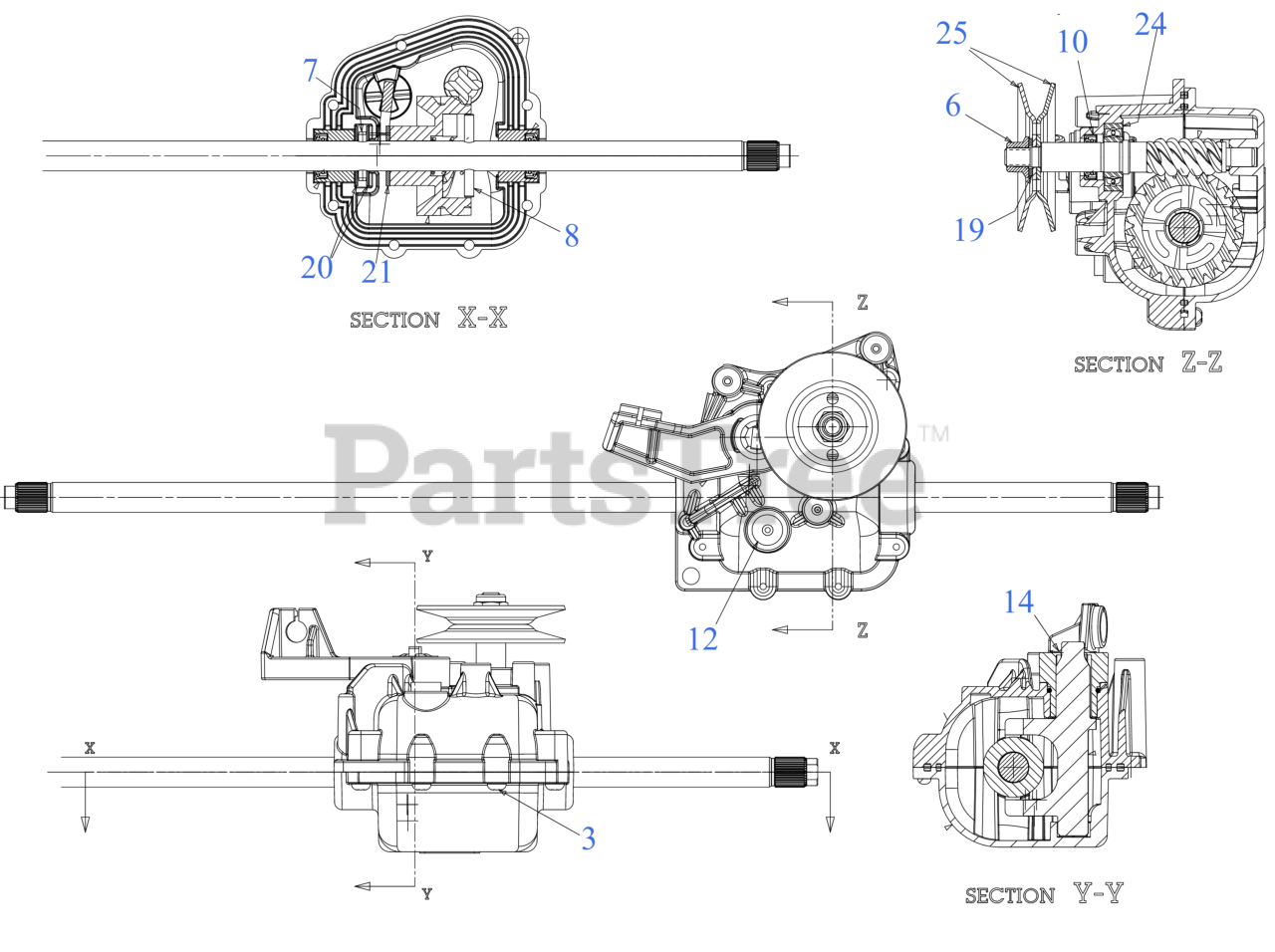

Transmission Parts Diagram

  • Title
3

Cub Cadet 710-04329

SCREW .159 x .610

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 715-0129

SPRING PIN1/8 x .812

$4.99

$

In Stock, only 1 left!

0

8

$3.49

$

Usually ships in 3-6 days

0

10

$4.99

$

In Stock, only 4 left!

0

12

Cub Cadet 721-04139

RUBBER PLUG

$2.99

$

Usually ships in 3-6 days

0

14

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0140

FLAT WASHER

$7.49

$

In Stock, Qty 6

0

20

Cub Cadet 736-04224

FLAT WASHER .508X1.000X.040

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 741-04116

BALL BEARING

$7.99

$

In Stock, only 1 left!

0

25

Cub Cadet 756-06163

PULLEY HALF SHEAVE

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet 618P07464C

TRANSMISSION ASSEMBLY

$251.99

$

Usually ships in 3-6 days

0
