SC 254 BV (090077023) - Scotts Blower, 20 Volt Figure C Parts Diagram

Blower, 20 Volt

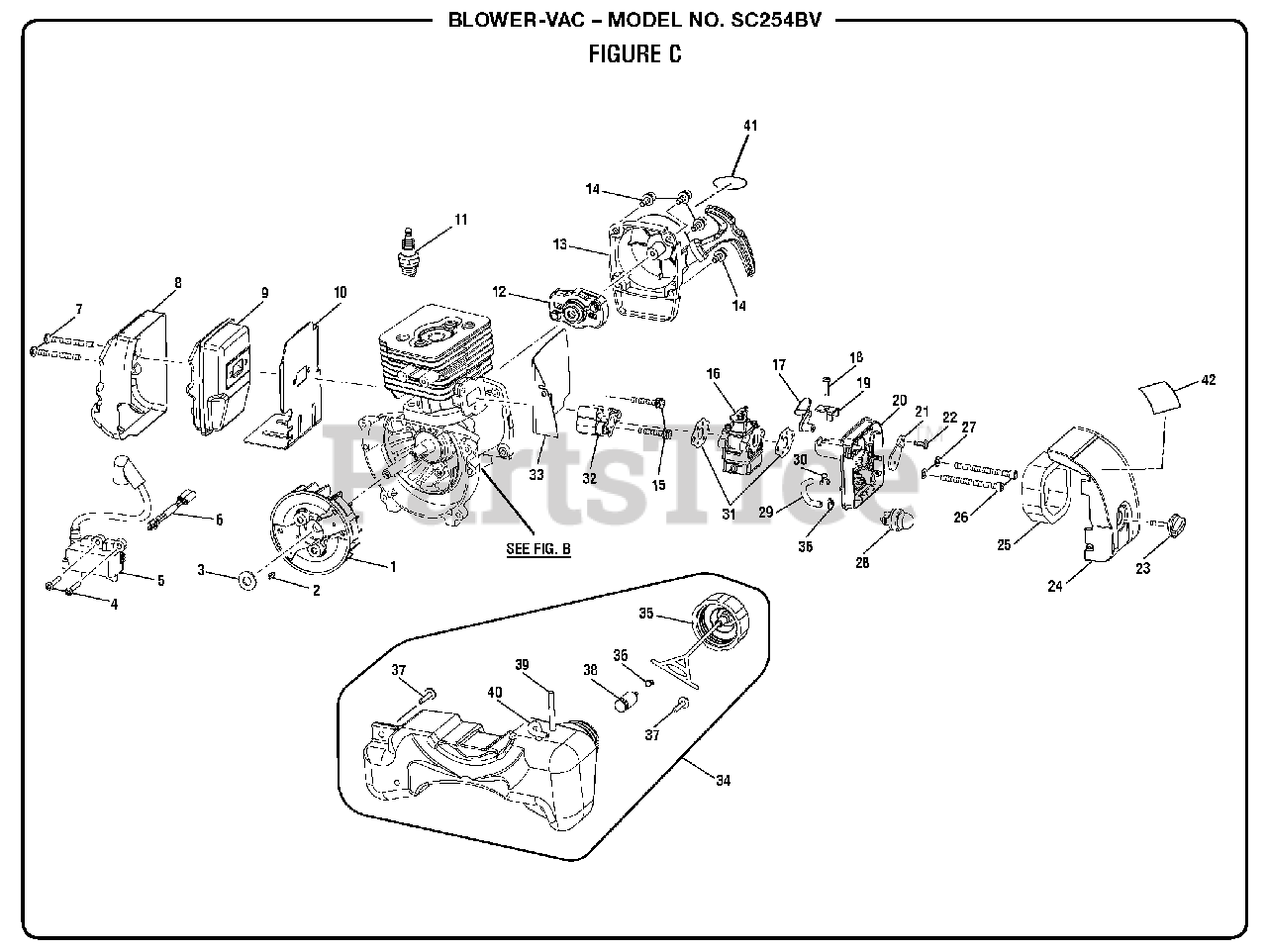

Figure C Parts Diagram

  • Title

1

Homelite 640574002

Rotor

$18.99

$

Usually ships in 3-7 days

0

2

Homelite 690688001

Woodruff Key
(Superseded to 983784006)

$

$

Not available

3

Homelite 678126005

Washer (ID.98 x OD30 x 3t)

$1.99

$

In Stock, only 4 left!

0

4

Homelite 660349001

Screw w/Washers (M4 x 22 mm, T25 Torx Soc. Hd)

$1.99

$

In Stock, Qty 5

0

5

Homelite 290178008

Ignition Coil Assembly

$

$

Not available

6

Homelite 290702001

Ignition Lead Assembly

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660347001

Cap Screw (M5 x 50 mm, T25 Torx Soc. Hd.)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 638027001

Heat Shield

$4.49

$

Usually ships in 3-7 days

0

9

Homelite 300748034

Muffler Assembly

$

$

Not available

10

Homelite 638183001

Muffler Gasket

$8.99

$

In Stock, only 3 left!

0

11

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.49

$

In Stock, Qty 20+

0

12

Homelite 308004006

Pulley Assembly

$

$

Currently unavailable

13

Homelite 308430017

Recoil Starter Assembly

Note: (Inc. Key No. 41)

$

$

Currently unavailable

14

Homelite 660351001

Cap Screw w/Washers (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6635101)

$1.99

$

In Stock, only 3 left!

0

15

Homelite 660344003

Screw w/Washers (M5 x 31 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308480001

Carburetor Assembly

$

$

Not available

17

Homelite 590458019

Choke Lever

$

$

Currently unavailable

18

Homelite 660734001

Screw (M4 x 16 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

19

Homelite 638133003

Retaining Clip

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 518130001

Air Box Base

$3.99

$

In Stock, only 1 left!

0

21

Homelite 590946001

Choke Plate
(Superseded to 5994601)

$1.99

$

In Stock, only 1 left!

0

22

Homelite 660345001

Screw (M4 x 12 mm, T20 Torx Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

23

Homelite 590461001

Knob
(Superseded to 5946101)

$1.99

$

In Stock, only 2 left!

0

24

Homelite 518253003

Air Box Cover

Note: (Inc. Key No. 42)

$

$

Currently unavailable

25

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

26

Homelite 660346001

Cap Screw (M5 x 60 mm, T25 Torx Soc. Hd.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 631049003

Washer (ID5 x OD12 x 0.80t)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 300780002

Primer Bulb Assembly
(Superseded to 01183)

$

$

Not available

29

Homelite 570373003

Hose (51 mm)

$

$

Not available

30

Homelite 690700001

Hose Clip
(Superseded to 6970001)

$1.99

$

In Stock, Qty 6

0

31

Homelite 900711003

Carburetor Gasket
(Superseded to 9071103)

$

$

Not available

32

Homelite 518329001

Heat Dam

$7.99

$

Usually ships in 3-7 days

0

33

Homelite 900711008

Heat Dam Gasket
(Superseded to 903279002)

$

$

Not available

34

Homelite 309042005

Fuel Tank and Cap Assembly

$

$

Not available

35

Homelite 310816015

Fuel Cap Assembly

$13.99

$

In Stock, only 1 left!

0

36

Homelite 690699001

Hose Clip
(Superseded to 6969901)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 660674001

Screw (10-14 x 7/8 in., T25 Torx Pan Hd.)
(Superseded to 82537)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 310976001

Fuel Filter

$

$

Not available

39

Homelite 562967029

Rubber Tubing (225 mm, Low Permeation)

$

$

Not available

40

Homelite 570373012

Rubber Tubing (114 mm)

$1.49

$

In Stock, only 3 left!

0

41

Homelite 940851053

Starting Instructions Label

$

$

Currently unavailable

42

Homelite 940705276

Starter Cover Label

$

$

Currently unavailable
