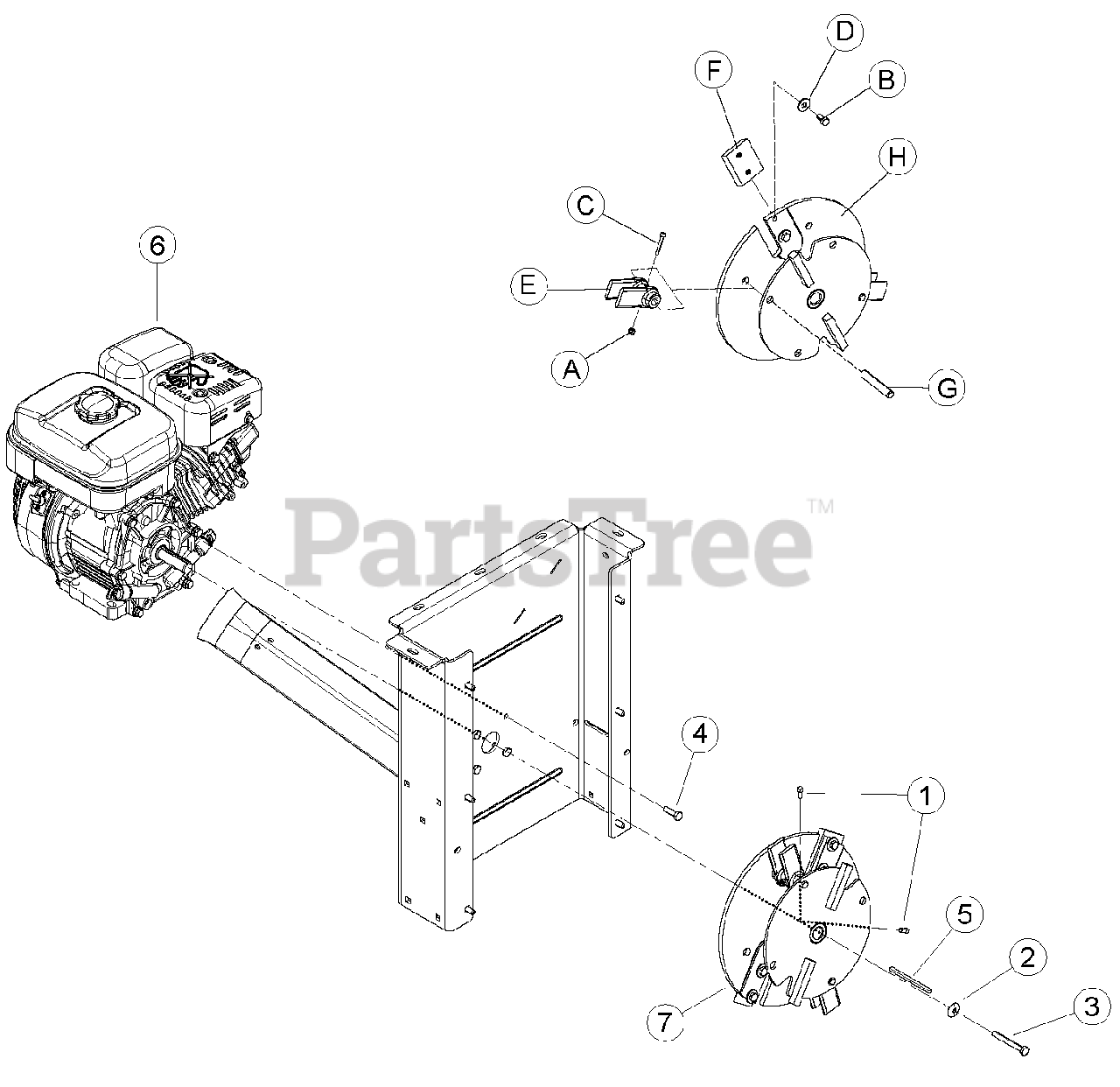

SC 2170 - Bear Cat 2" Chipper/Shredder, 170cc Subaru (SN: B00001 - D00568) Drive Parts Diagram

2" Chipper/Shredder, 170cc Subaru

Drive Parts Diagram

  • Title

1

15114

SCREW, 1/4 X 1/2 SQ HD CP SET

$

$

Not available

2

Bear Cat 15548

WASHER, 5/16 GR8 USS FLAT

$0.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15696-00

BOLT, 5/16 X 2-1/2 HEX NF GR5 ZP

$

$

Not available

4

Bear Cat 15755-00

BOLT, 5/16-24 X 1 HEX GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15866-00

KEY, 3/16 SQUARE X 3.38 LONG

$

$

Not available

6

ENGINE, SUBARU 170CC SP170 (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST UTHORIZED SUBARU ENGINE DEALER)

$

$

Not available

7

ASSEMBLY, S/C ROTOR (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT # 77615-00, ROTOR SSEMBLY WITH KNIVES)

$

$

Not available

A

NUT, #10/24 NYLOCK TYPE NM, ZP

$

$

Not available

B

BOLT, 5/16-18 X 5/8 GR8 HCS PATCH Z

$

$

Not available

C

SCREW, #10-24 X 1-3/8 SKT HD CAP PL

$

$

Not available

D

WASHER, 5/16 FLAT GR8 USS

$

$

Not available

E

FLAIL, CHIPPER/SHREDDER CAST (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT# 77022-00)

$

$

Not available

F

BLADE, TWO EDGE TOOL STEEL (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT# 70738)

$

$

Not available

G

SHAFT, SHREDDER

$

$

Not available

H

WELDMENT, S/C ROTOR

$

$

Not available
