SC-2013 - Echo Chipper Shredder (SN: 200SCB000001 - 200SCB999999) Idler Parts Diagram

Chipper Shredder

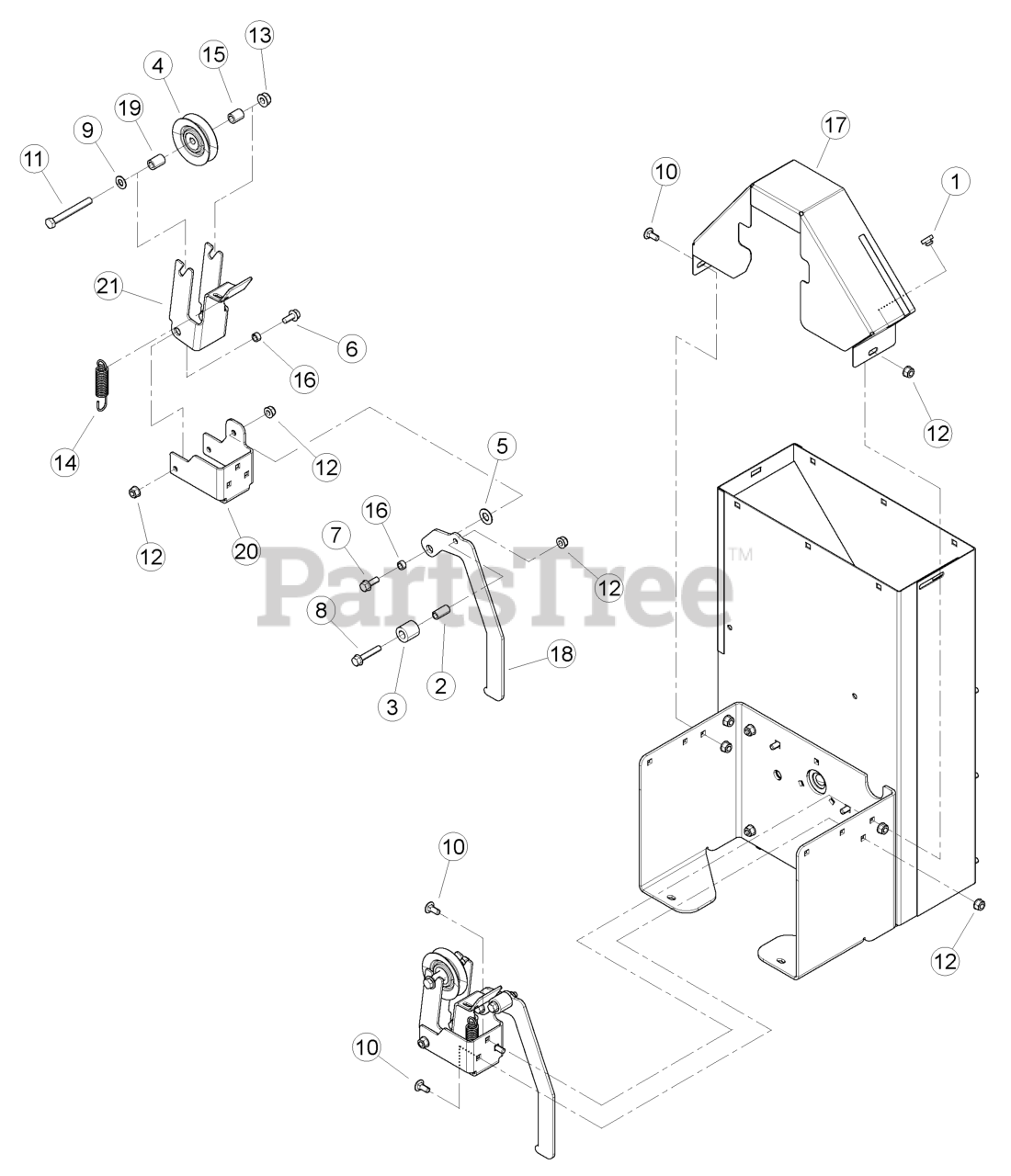

Idler Parts Diagram

  • Title

1

Echo YH468000490

BUMPER, RUBBER

$2.49

$

Usually ships in 2-4 days

0

2

Echo YH475000190

SPACER, 0.5 × 1.00

$6.49

$

Usually ships in 2-4 days

0

3

Echo YH453000130

ROLLER, 0.5 × 1.00 × 1.00 NYLON

$7.99

$

Usually ships in 2-4 days

0

4

Echo YH472000070

IDLER, INSIDE

$59.99

$

Usually ships in 2-4 days

0

5

Echo YH451000480

WASHER, 1/2 INCH NYLON

$1.49

$

Usually ships in 2-4 days

0

6

Echo YH436000010

BOLT, 5/16 × 3/4 FLANGE NC

$0.99

$

Usually ships in 2-4 days

0

7

Echo YH436000030

BOLT, 5/16 × 7/8 FLANGE NC

$1.49

$

Usually ships in 2-4 days

0

8

Echo YH436000070

BOLT, 5/16 × 1-3/4 FLANGE NC

$2.99

$

Usually ships in 2-4 days

0

9

Echo YH451000460

WASHER, 3/8 SAE FLAT ZP

$0.99

$

Usually ships in 2-4 days

0

10

Echo YH434000050

BOLT, 5/16 × 3/4 GR5 CRG NC ZP

$0.99

$

Usually ships in 2-4 days

0

11

Echo YH434000090

BOLT, 3/8 × 3-1/4 HEX HD GR5 ZP

$1.99

$

Usually ships in 2-4 days

0

12

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

13

Echo YH449000050

NUT, 3/8-16 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

14

Echo YH476000170

SPRING, 3/4" OD EXTENSION

$8.99

$

Usually ships in 2-4 days

0

15

Echo YH475000070

SPACER, 3/4" LONG IDLER TUBE

$5.99

$

Usually ships in 2-4 days

0

16

Echo YH475000180

SPACER, .50 × .25

$3.49

$

Usually ships in 2-4 days

0

17

Echo YH479001020

SHIELD, UPPER

$110.99

$

Usually ships in 2-4 days

0

18

Echo YH470000860

HANDLE, ENGAGEMENT

$21.99

$

Usually ships in 2-4 days

0

19

Echo YH475000250

SPACER, 5/8 OD × 11 GA × 0.88

$7.99

$

Usually ships in 2-4 days

0

20

Echo YH479001600

MOUNT, IDLER BRACKET

$40.99

$

Usually ships in 2-4 days

0

21

Echo YH466000400

BRACKET, IDLER 3 IN CHIPPER

$48.99

$

Usually ships in 2-4 days

0
