SC 18 - Husqvarna 18" Sod Cutter (2001-01) Blade Drive Assembly Parts Diagram

18" Sod Cutter

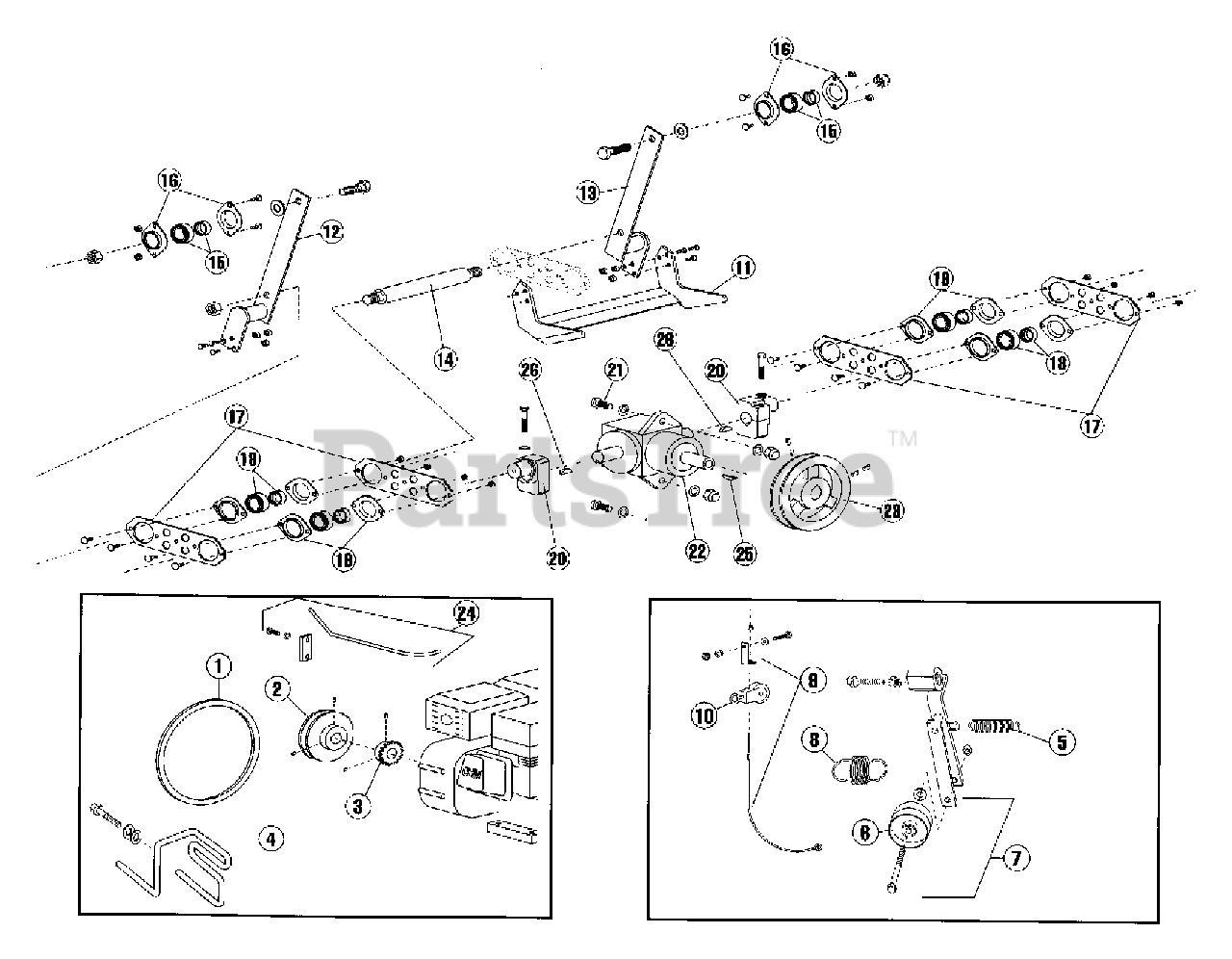

Blade Drive Assembly Parts Diagram

  • Title

1

Husqvarna 540003106

V-belt, A-26" special
(Superseded to 539030439)

$40.99

$

In Stock, only 2 left!

0

2

Husqvarna 540003108

V-pulley 4" special, with key
(Superseded to 539003108)

$145.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540003109

Sprocket with key, engine
(Superseded to 539003109)

$

$

Not available

4

Husqvarna 540003166

Belt keeper kit with hardware
(Superseded to 539003166)

$66.99

$

Usually ships in 3-10 days

0

5

Husqvarna 540007195

Spring , 3 3/4"
(Superseded to 539010195)

$47.99

$

In Stock, Qty 8

0

6

Husqvarna 540000343

Pulley, idler 2 3/4"
(Superseded to 539000343)

$44.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540003111

Belt idler assembly
(Superseded to 539003111)

$84.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540003112

Spring, 4", blade/clutch
(Superseded to 539030463)

$18.99

$

Usually ships in 3-10 days

0

9

Husqvarna 540003113

Cable, blade/clutch with hardware
(Superseded to 539003113)

$

$

Not available

10

Husqvarna 540003114

Pulley, swivel eye, clutch
(Superseded to 539030464)

$48.99

$

Usually ships in 3-10 days

0

11

Husqvarna 540003167

Blade with hardware
(Superseded to 539003167)

$

$

Not available

12

Husqvarna 540030219

Blade arms and shaft
(Superseded to 539030219)

$546.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540000315

Bearing, 3/4" with locking collar with fasteners
(Superseded to 539000315)

$37.99

$

In Stock, Qty 7

0

14

Husqvarna 540003122

Stamping kit,
(Superseded to 539003122)

Note: for 3/4" bearing

$34.99

$

In Stock, only 1 left!

0

15

Husqvarna 540003125

Plate, rod
(Superseded to 539003125)

$60.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540000317

Bearing, 1" with locking collar
(Superseded to 539000317)

$53.99

$

Usually ships in 3-10 days

0

17

Husqvarna 540003124

Stamping kit, with fasteners (1" bearing)
(Superseded to 539003124)

$78.99

$

In Stock, only 2 left!

0

18

Husqvarna 540003129

Crank, eccentric kit
(Superseded to 539003129)

$485.99

$

Usually ships in 3-10 days

0

19

Husqvarna 540003132

Hardware kit, gear box
(Superseded to 539003132)

$24.99

$

Usually ships in 3-10 days

0

20

Husqvarna 540003131

Gear box, right angle "T" drive
(Superseded to 539003131)

$

$

Not available

21

Husqvarna 540003130

Pulley 5 1/4" OD, with key, gear box
(Superseded to 539003130)

$

$

Not available

22

Husqvarna 540003152

Tube, throttle cable, assembly
(Superseded to 539003152)

$

$

Not available

23

Husqvarna 540003175

Key, #6 woodruff (5/32 x 5/8)
(Superseded to 539910008)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 540003176

Key, #9 woodruff (3/16 x 3/4)
(Superseded to 539910211)

$3.99

$

In Stock, only 4 left!

0
