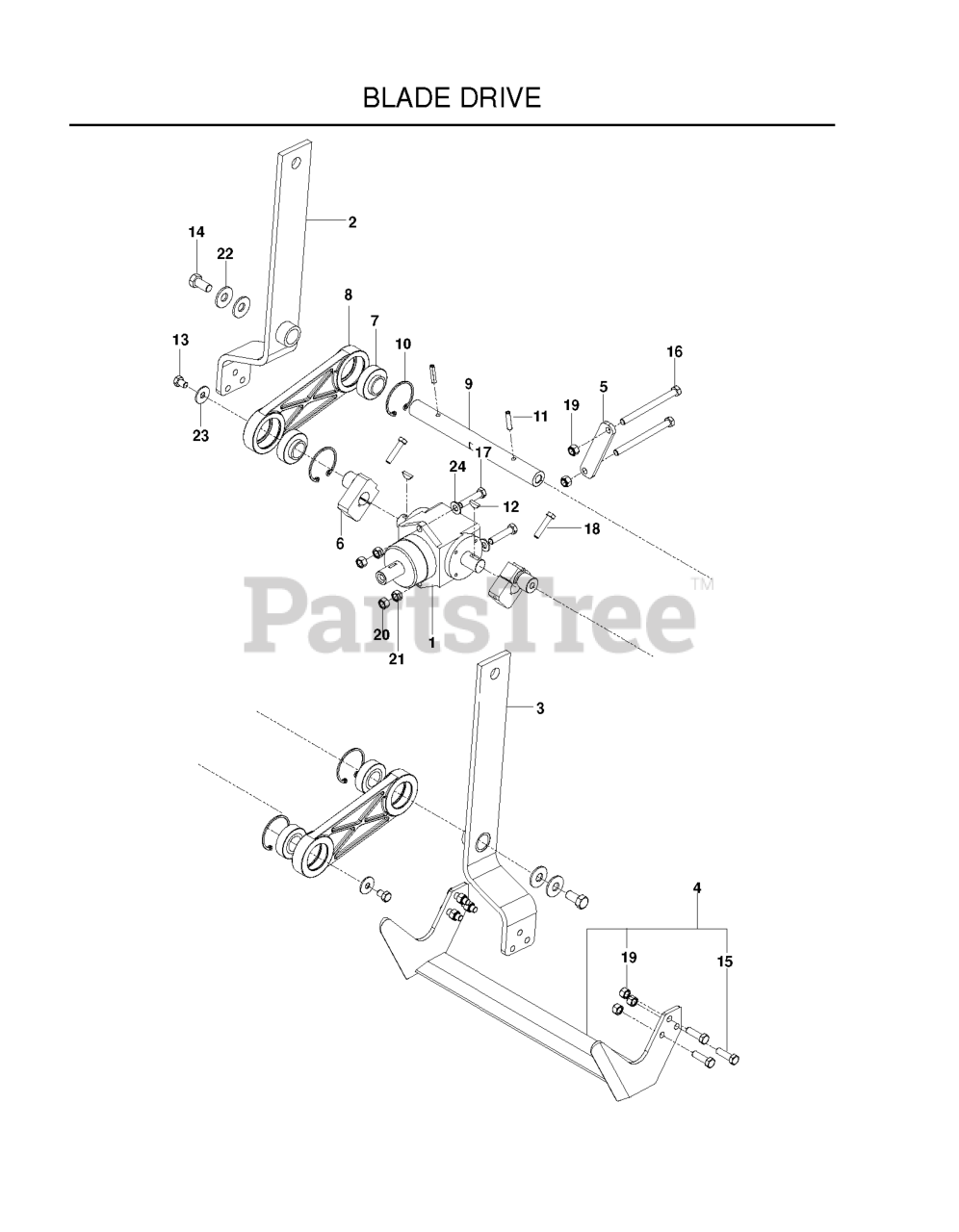

SC 18 (968999510) - Husqvarna 18" Sod Cutter (2010-09) BLADE DRIVE & DEPTH CONTROL Parts Diagram

18" Sod Cutter

BLADE DRIVE & DEPTH CONTROL Parts Diagram

  • Title
3

Husqvarna 539112874

BLADE ARM L.H., BLACK

$

$

Not available

22

Husqvarna 539112484

SPRING WASHER - .50

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539130628

HCS 3/8-16 X 1-1/4 GR 8 ZD

$4.99

$

In Stock, Qty 6

0

18

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

13

Husqvarna 539106776

BOLT .375 X .5

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990591

HCS 3/8C X 4 1/2

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539112465

LINK - CONNECTING

$

$

Not available

12

Husqvarna 539910211

KEY, #9 WOODRUFF

$3.99

$

In Stock, only 4 left!

0

1

Husqvarna 539030455

GEAR BOX
(Superseded to 539003131)

$

$

Not available

5

Husqvarna 539112850

STRAP T-BOX BLACK

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990289

NUT 3/8F CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

10

$338.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539112483

SPRING WASHER - .38

$8.99

$

Usually ships in 3-10 days

0

20

$4.99

$

In Stock, Qty 16

0

14

Husqvarna 539990646

HHCS 1/2-13 X 1

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539113449

KIT CUTTING BLADE 18" SOD CUT

$302.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112873

BLADE ARM R.H., BLACK

$133.99

$

In Stock, only 1 left!

0

6

Husqvarna 539112482

SNAP RING 52MM
(Superseded to 539127981)

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539977670

HCS 3/8-24

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539115279

BEARING-ECC LOCK W/COLLAR

$37.99

$

In Stock, Qty 20+

0

11

Husqvarna 539112879

SPIRAL PIN 1/4 DIA X 1.25

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539112471

SHAFT - BLADE ARM

$120.99

$

Usually ships in 3-10 days

0
