SC 100 HW (11A-B9M5710) - Cub Cadet Walk-Behind Mower (2017) Deck Assembly Parts Diagram

Walk-Behind Mower

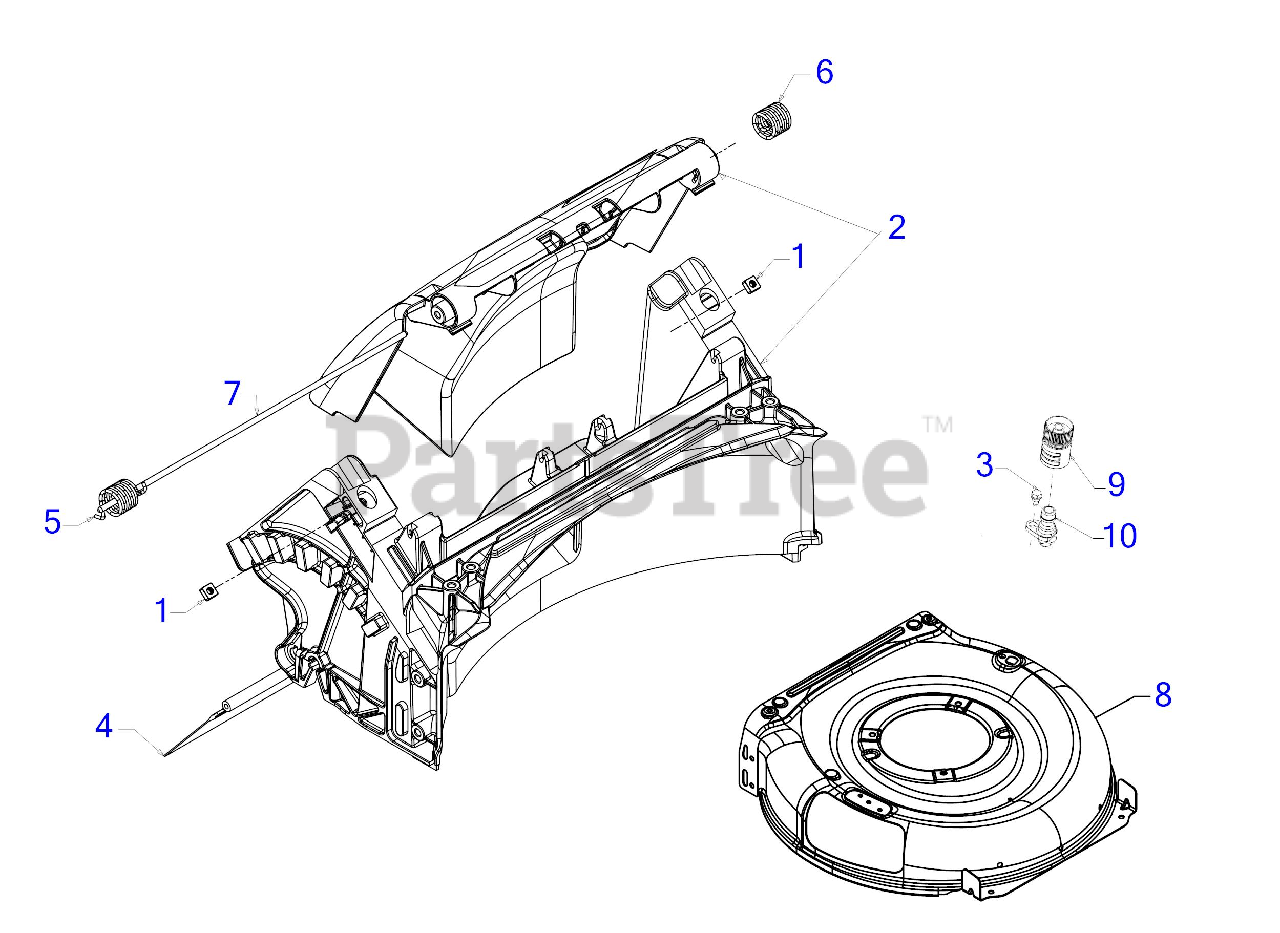

Deck Assembly Parts Diagram

  • Title
1

Cub Cadet 712-04222

SQUARE NUT 1/4-20

$5.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-04369A

REAR BAG DOOR ASSEMBLY
(Superseded to 631-08159)

$55.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

5

Cub Cadet 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

Cub Cadet 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 10

0

8

Cub Cadet 787-01874C-4021

21" DECK (3N1)

$143.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

10

Cub Cadet 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0
