SBV-SBV-52290 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

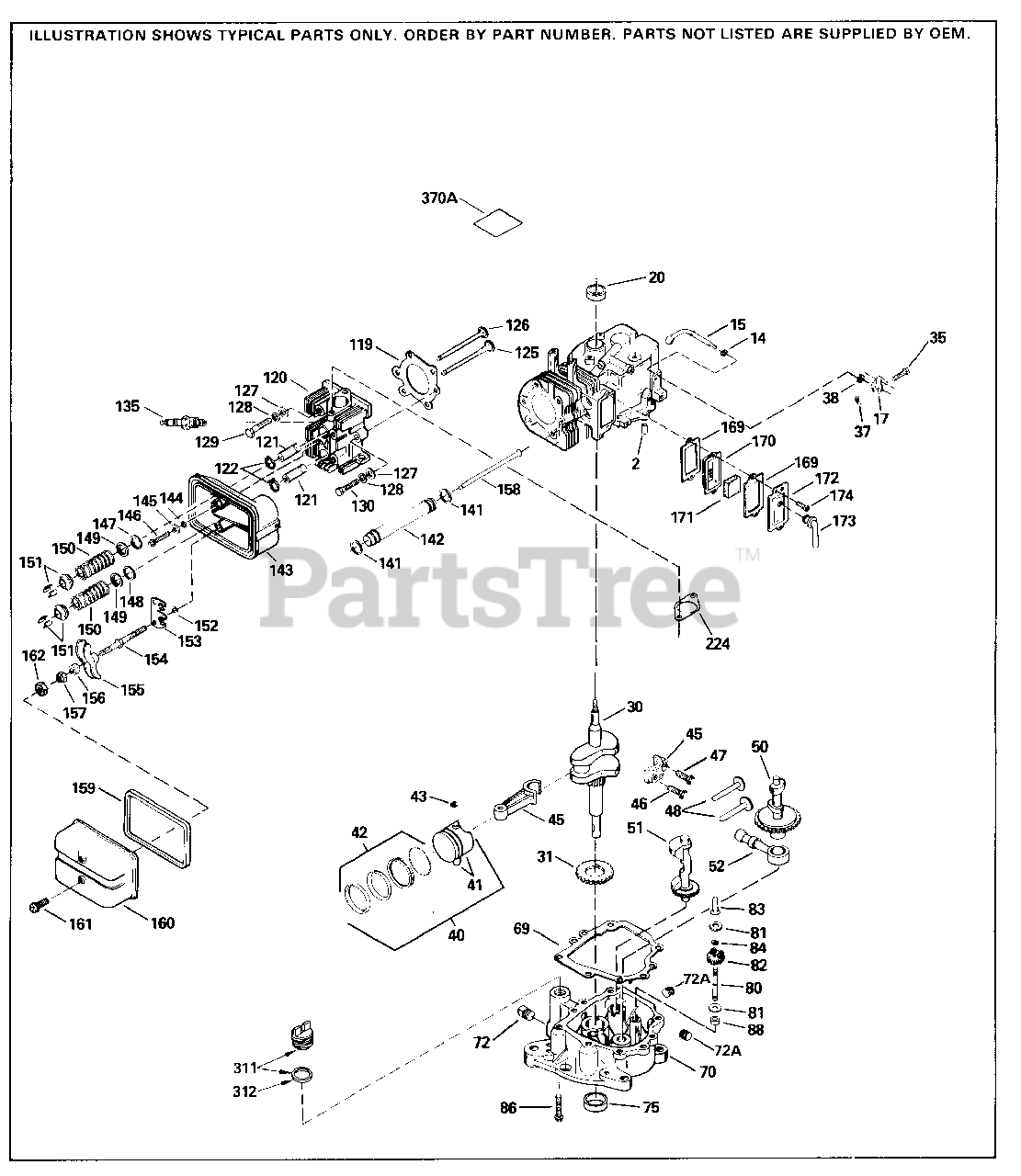

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 35323A

"Cylinder (Incl. 2 & 20) 3-5/16" Bore

$

$

Not available

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 35324

Governor Rod

$3.99

$

Usually ships in 3-12 days

0

17

Tecumseh 29916

Governor Lever Clamp

$1.99

$

In Stock, only 1 left!

0

20

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

30

Tecumseh 35336A

Crankshaft (counterbalance)
(Superseded to 35336B)

$

$

Not available

31

Tecumseh 35327

Counterbalance Gear

$18.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 2 left!

0

38

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 1 left!

0

40

Tecumseh 35776

Piston, Pin & Ring Set (Std.)" Bore)
(Superseded to 35776B)

$54.99

$

In Stock, only 1 left!

0

40

Tecumseh 35777

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35777A)

$

$

Not available

40

Tecumseh 35778

Piston, Pin & Ring Set (.020" OS)
(Superseded to 35778A)

$158.99

$

Usually ships in 3-12 days

0

41

Tecumseh 35773

Piston & Pin Ass'y. (Std.) (Incl. 43) 3-5/16")
(Superseded to 35776B)

$54.99

$

In Stock, only 1 left!

0

41

Tecumseh 35774

Piston & Pin Ass'y. (.010" OS) Incl. 43
(Superseded to 35777A)

$

$

Not available

41

Tecumseh 35775

Piston & Pin Ass'y. (.020" OS) Incl. 43
(Superseded to 35778A)

$158.99

$

Usually ships in 3-12 days

0

42

Tecumseh 35779

Ring Set (Std.) (3-5/16")

$44.99

$

In Stock, only 1 left!

0

42

Tecumseh 35780

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 35781

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 35772

Piston Pin Retaining Ring

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 35330A

Connecting Rod Ass'y. (Incl. 46 & 47)
(Superseded to 36898A)

$52.99

$

In Stock, only 1 left!

0

46

Tecumseh 650908

Connecting Rod Bolt
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 650882

Connecting Rod Bolt
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 35313

Valve Lifter
(Superseded to 35313A)

$

$

Not available

50

Tecumseh 35314A

Camshaft (MCR)
(Superseded to 35939)

$84.99

$

Usually ships in 3-12 days

0

51

Tecumseh 35315

Counterbalance Weight Assy.
(Superseded to 35315A)

$95.99

$

Usually ships in 3-12 days

0

52

Tecumseh 31356

Oil Pump Assy.

$12.99

$

Usually ships in 3-12 days

0

69

Tecumseh 35317

Mounting Flange Gasket

$4.99

$

In Stock, only 1 left!

0

70

Tecumseh 35711A

Mounting Flange (Incl. 72, 72A, 75 & 80)

$

$

Not available

72A

Tecumseh 28483

Oil Drain Plug (3/8-18)

$1.99

$

Usually ships in 3-12 days

0

72

Tecumseh 9556

Pipe Plug (1/8-27 sq. hd.)
(Superseded to 28534)

$1.99

$

In Stock, only 4 left!

0

72

Tecumseh 31927

Pipe Plug (3/8-18 sq. hd.)

$1.99

$

Usually ships in 3-12 days

0

75

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

80

Tecumseh 35712

Governor Shaft

$3.99

$

Usually ships in 3-12 days

0

81

Tecumseh 35479

WASHER
(Superseded to 651080)

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 35321

Governor Gear Assembly

$9.49

$

In Stock, only 1 left!

0

83

Tecumseh 35322

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, Qty 5

0

86

Tecumseh 650833

Powerlok Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

88

Tecumseh 31707A

Governor Gear Spacer

$1.99

$

In Stock, only 2 left!

0

119

Tecumseh 35306A

Cylinder Head Gasket

$11.99

$

In Stock, only 1 left!

0

120

Tecumseh 35307

Cylinder Head

$

$

Not available

121

Tecumseh 730218

Exhaust Valve Guide

$24.99

$

In Stock, only 1 left!

0

122

Tecumseh 792035

Retaining Ring

$4.49

$

In Stock, Qty 13

0

125

Tecumseh 35308

Exhaust Valve (Std.)

$70.99

$

Usually ships in 3-12 days

0

125

Tecumseh 35433

Exhaust Valve (1/32" OS)

$119.99

$

Usually ships in 3-12 days

0

126

Tecumseh 35309

Intake Valve (Std.)

$33.99

$

Usually ships in 3-12 days

0

126

Tecumseh 35432

Intake Valve (1/32" OS)

$96.99

$

Usually ships in 3-12 days

0

127

Tecumseh 650691

Flat Washer

$1.99

$

Usually ships in 3-12 days

0

128

Tecumseh 650690

Belleville Spring Washer
(Superseded to 730324)

$

$

Not available

129

Tecumseh 650746

Screw, 5/16-18 x 1-3/8"

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 650692

Screw, 5/16-18 x 1-3/4"

$

$

Not available

141

Tecumseh 33481

"O" Ring

$1.99

$

In Stock, only 3 left!

0

142

Tecumseh 35475

Push Rod Tube

$

$

Not available

143

Tecumseh 35310

Rocker Arm Housing

$32.99

$

Usually ships in 3-12 days

0

144

Tecumseh 33484

"O" Ring

$1.99

$

In Stock, only 2 left!

0

145

Tecumseh 650168

Flat Washer

$1.99

$

Usually ships in 3-12 days

0

146

Tecumseh 32610A

Screw, 1/4-20 x 29/32"

$1.99

$

In Stock, Qty 6

0

147

Tecumseh 33509

"O" Ring (Intake)

$3.99

$

In Stock, only 1 left!

0

148

Tecumseh 34410

"O" Ring (Exhaust)

$3.99

$

Usually ships in 3-12 days

0

149

Tecumseh 33510

Valve Spring Cap

$1.99

$

Usually ships in 3-12 days

0

150

Tecumseh 33507

Valve Spring

$3.99

$

In Stock, only 1 left!

0

151

Tecumseh 33508

Valve Spring Cap & Keeper

$9.49

$

In Stock, only 2 left!

0

152

Tecumseh 35295

"O" Ring

$1.99

$

Usually ships in 3-12 days

0

153

Tecumseh 35296

Push Rod Guide

$6.49

$

Usually ships in 3-12 days

0

154

Tecumseh 650878

Rocker Arm Stud

$5.49

$

Usually ships in 3-12 days

0

155

Tecumseh 35297

Rocker Arm
(Superseded to 730221A)

$37.99

$

Usually ships in 3-12 days

0

156

Tecumseh 35298

Rocker Arm Bearing

$1.99

$

Usually ships in 3-12 days

0

157

Tecumseh 28264

Lock Nut (Incl. 162)

$3.99

$

In Stock, only 2 left!

0

158

Tecumseh 35466

Push Rod

$14.99

$

In Stock, only 2 left!

0

159

Tecumseh 35299B

"O" Ring (Valve Cover)(Incl. 161)

$11.99

$

Usually ships in 3-12 days

0

160

Tecumseh 35300

Rocker Arm Housing
(Superseded to 35300A)

$

$

Not available

161

Tecumseh 650879

Screw, Torx T-20, 8-32 x 1/2 "

$1.99

$

Usually ships in 3-12 days

0

162

Tecumseh 650903

Hex Jam Nut

$1.99

$

Usually ships in 3-12 days

0

169

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 5

0

170

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Breather Element

$3.99

$

In Stock, Qty 9

0

172

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Breather Tube

$6.49

$

In Stock, only 1 left!

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 1 left!

0

224

Tecumseh 33515A

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

311

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 5

0

312

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 2 left!

0

370A

Tecumseh 34346

Lubrication Decal
(Superseded to 36261)

$

$

Not available
