SBV-SBV-511A - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

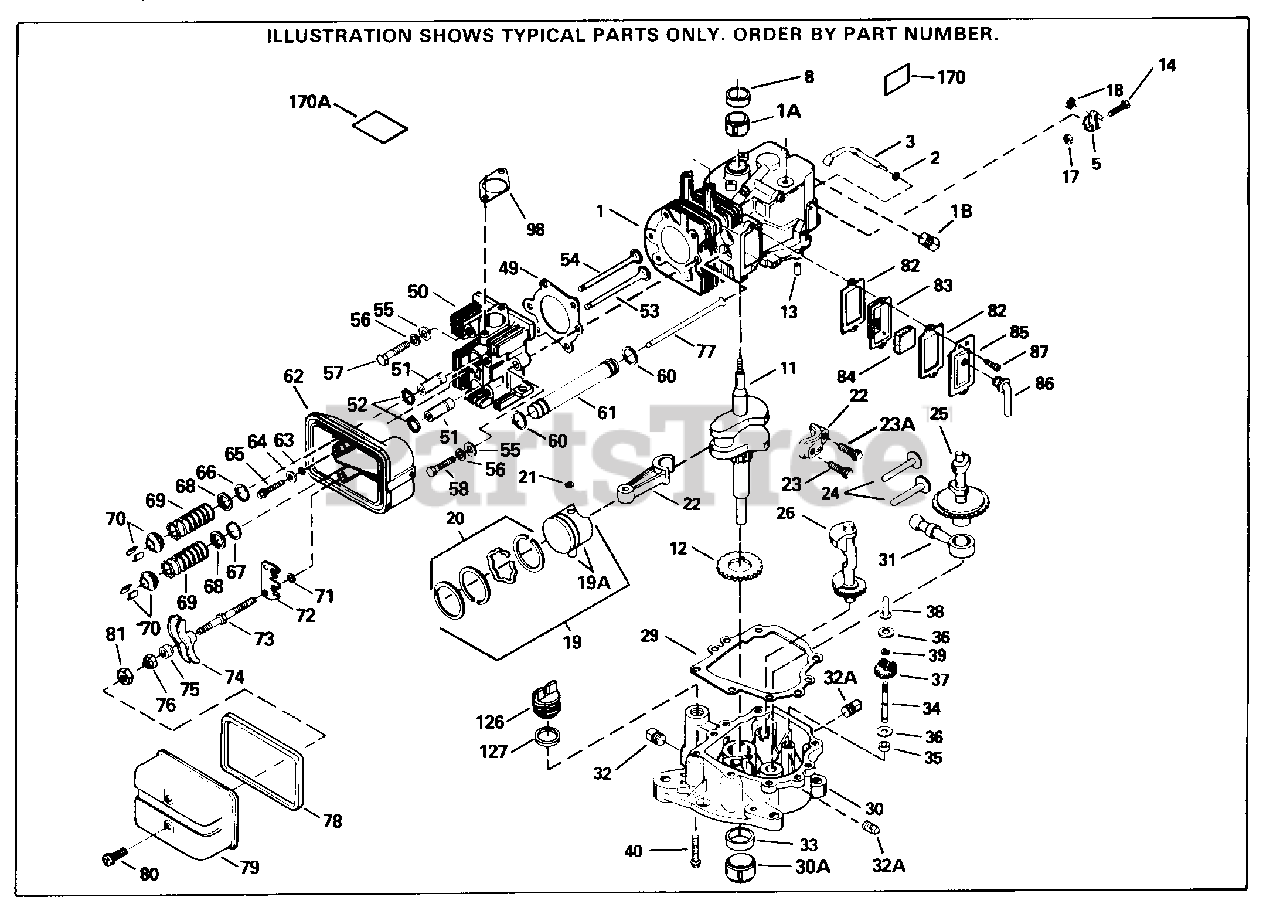

Engine Parts List Parts Diagram

  • Title

1A

Tecumseh 35400

Crankshaft Bushing

$9.99

$

Usually ships in 3-12 days

0

1

Tecumseh 35399A

"Cylinder (Incl. 1A,8,13)(3-5/16") CI liner
(Superseded to 35399B)

$

$

Not available

2

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 35324

Governor Rod

$3.99

$

Usually ships in 3-12 days

0

5

Tecumseh 29916

Governor Lever Clamp

$1.99

$

In Stock, only 2 left!

0

8

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

11

Tecumseh 35336A

Crankshaft (Counterbalance)
(Superseded to 35336B)

$

$

Not available

12

Tecumseh 35327

Counterbalance Gear

$18.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 4 left!

0

17

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

19A

Tecumseh 35329

Piston & Pin Ass'y. (Std.)(Incl. 21) 3-5/16"

$135.99

$

Usually ships in 3-12 days

0

19A

Tecumseh 35430

Piston & Pin Ass'y. (.010" OS) Incl. 21

$154.99

$

Usually ships in 3-12 days

0

19A

Tecumseh 35431

Piston & Pin Ass'y. (.020" OS) Incl. 21

$

$

Not available

19

Tecumseh 35339

Piston, Pin & Ring Set (Std.) 3-5/16" Bore
(Superseded to 35339A)

$

$

Not available

19

Tecumseh 35340

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35340A)

$187.99

$

Usually ships in 3-12 days

0

19

Tecumseh 35341

Piston, Pin & Ring Set (.020" OS)
(Superseded to 35341A)

$162.99

$

Usually ships in 3-12 days

0

20

Tecumseh 34866

Ring Set (Std.) (3-5/16" Bore)
(Superseded to 34866A)

$54.99

$

Usually ships in 3-12 days

0

20

Tecumseh 34867

Ring Set (.010" OS)
(Superseded to 34867A)

$41.99

$

Usually ships in 3-12 days

0

20

Tecumseh 34868

Ring Set (.020" OS)
(Superseded to 34868A)

$39.99

$

In Stock, only 1 left!

0

21

Tecumseh 31919

Ring, Piston pin retaining

$1.99

$

In Stock, only 2 left!

0

22

Tecumseh 35330A

Connecting Rod Ass'y. (Incl. 46 & 47) )
(Superseded to 36898A)

$52.99

$

In Stock, only 1 left!

0

23

Tecumseh 650908

Bolt, Connecting rod
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

23A

Tecumseh 650882

Bolt, Connecting rod
(Superseded to 651033A)

$

$

Not available

24

Tecumseh 35313

Valve Lifter
(Superseded to 35313A)

$

$

Not available

25

Tecumseh 35314

Camshaft (MCR)
(Superseded to 35939)

$84.99

$

Usually ships in 3-12 days

0

26

Tecumseh 35315

Weight Assy., Counterbalance
(Superseded to 35315A)

$95.99

$

Usually ships in 3-12 days

0

29

Tecumseh 35317

Gasket, Mounting flange

$4.99

$

In Stock, only 1 left!

0

30A

Tecumseh 35377

Crankshaft Bushing

$11.99

$

In Stock, only 3 left!

0

30

Tecumseh 35401A

Mounting Flange (Incl. 71,72,75 & 80) 34)

$

$

Not available

31

Tecumseh 31356

Pump Assy., Oil

$12.99

$

Usually ships in 3-12 days

0

32

Tecumseh 31927

Plug, Oil drain (3/8-18, Sq. hd.)

$1.99

$

Usually ships in 3-12 days

0

33

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

34

Tecumseh 35712

Governor Shaft

$3.99

$

Usually ships in 3-12 days

0

35

Tecumseh 31707A

Spacer, Governor Gear (Incl. 36)

$1.99

$

In Stock, only 2 left!

0

36

Tecumseh 35479

WASHER
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

37

Tecumseh 35321

Governor Gear Assembly

$9.49

$

In Stock, only 1 left!

0

38

Tecumseh 35322

Governor Spool

$1.99

$

In Stock, Qty 5

0

39

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

40

Tecumseh 650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

49

Tecumseh 35306A

Gasket, Cylinder head

$11.99

$

In Stock, only 1 left!

0

50

Tecumseh 35307

Cylinder Head

$

$

Not available

51

Tecumseh 730218

Valve Guide Kit (Incl. 2 of 52)

$24.99

$

In Stock, only 1 left!

0

52

Tecumseh 792035

Ring, Retaining

$4.49

$

In Stock, Qty 13

0

53

Tecumseh 35308

Exhaust Valve (Std.)

$70.99

$

Usually ships in 3-12 days

0

53

Tecumseh 35433

Exhaust Valve (1/32" OS)

$119.99

$

Usually ships in 3-12 days

0

54

Tecumseh 35309

Intake Valve (Std.)

$33.99

$

Usually ships in 3-12 days

0

54

Tecumseh 35432

Intake Valve (1/32" OS)

$96.99

$

Usually ships in 3-12 days

0

55

Tecumseh 650691

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

56

Tecumseh 650690

Washer, Belleville
(Superseded to 730324)

$9.99

$

Usually ships in 3-12 days

0

57

Tecumseh 650746

Screw, 5/16-18 x 1-3/8"

$1.99

$

Usually ships in 3-12 days

0

58

Tecumseh 650692

Screw, 5/16-18 x 1-3/4"

$

$

Not available

60

Tecumseh 33481

"O" Ring

$1.99

$

Usually ships in 3-12 days

0

61

Tecumseh 35475

Push Rod Tube

$

$

Not available

62

Tecumseh 35310

Rocker Arm Housing

$32.99

$

Usually ships in 3-12 days

0

63

Tecumseh 33484

"O" Ring

$1.99

$

In Stock, only 2 left!

0

64

Tecumseh 650168

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

65

Tecumseh 32610A

Screw, 1/4-20 x 29/32"

$1.99

$

In Stock, Qty 6

0

66

Tecumseh 33509

"O" Ring (Intake)

$3.99

$

In Stock, only 1 left!

0

67

Tecumseh 34410

"O" Ring (Exhaust)

$3.99

$

Usually ships in 3-12 days

0

68

Tecumseh 33510

Cap, Valve spring

$1.99

$

Usually ships in 3-12 days

0

69

Tecumseh 33507

Spring, Valve

$3.99

$

In Stock, only 1 left!

0

70

Tecumseh 33508

Cap, Valve spring keeper

$9.49

$

In Stock, only 2 left!

0

71

Tecumseh 35295

"O" Ring

$1.99

$

Usually ships in 3-12 days

0

72

Tecumseh 35296

Push Rod Guide

$6.49

$

Usually ships in 3-12 days

0

73

Tecumseh 650878

Stud, Rocker arm housing

$5.49

$

Usually ships in 3-12 days

0

74

Tecumseh 35297

Rocker Arm
(Superseded to 730221A)

$37.99

$

Usually ships in 3-12 days

0

75

Tecumseh 35298

Rocker Arm Bearing

$1.99

$

Usually ships in 3-12 days

0

76

Tecumseh 28264

Nut Assy. (Incl. 81)

$3.99

$

In Stock, only 2 left!

0

77

Tecumseh 35466

Push Rod

$14.99

$

In Stock, only 2 left!

0

78

Tecumseh 35299B

"O" Ring Ass'y. (Incl. 2 of 80)

$11.99

$

Usually ships in 3-12 days

0

79

Tecumseh 35300

Rocker Arm Housing
(Superseded to 35300A)

$

$

Not available

80

Tecumseh 650879

Screw, 8-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

81

Tecumseh 650903

Nut, Hex Jam

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 10

0

83

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

84

Tecumseh 28424

Breather Element

$3.99

$

In Stock, only 3 left!

0

85

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

86

Tecumseh 35350

Breather Tube

$6.49

$

Usually ships in 3-12 days

0

87

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

Usually ships in 3-12 days

0

98

Tecumseh 33515A

Gasket, Intake pipe

$1.99

$

In Stock, only 3 left!

0

126

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 7

0

127

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 3 left!

0

170

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available
