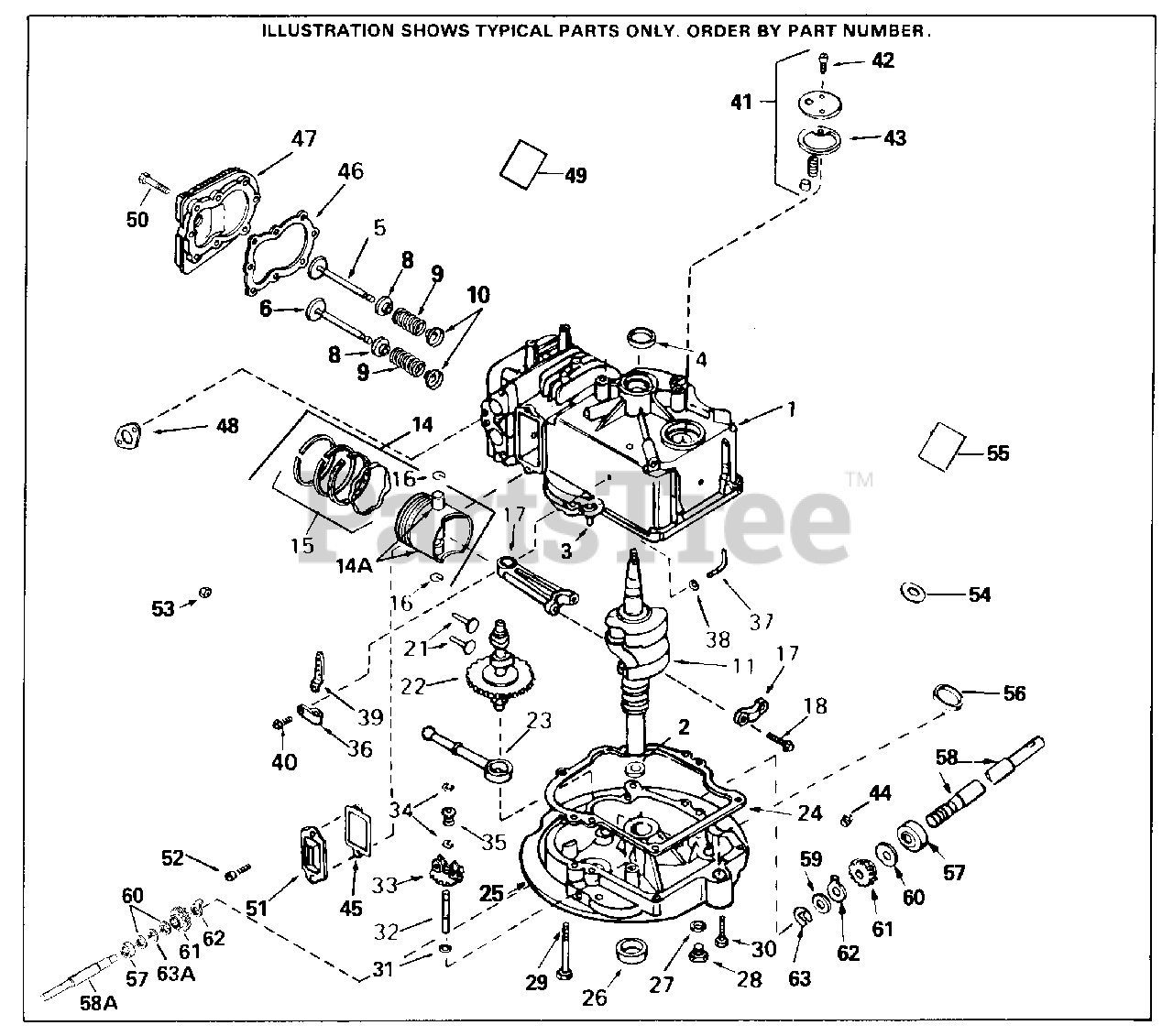

SBV-SBV-420 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 34959

"Cylinder (Incl. 3,4,41,42,43 & 54) 2- 5/8"

$

$

Currently unavailable

3

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 32600

Seal, Oil

$

$

Not available

5

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

6

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

6

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

8

Tecumseh 31671

Upper Valve Spring Cap Early prod. on ly

$1.49

$

In Stock, only 2 left!

0

9

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 34441

Crankshaft

$

$

Not available

14

Tecumseh 34851

Piston, Pin & Ring Set (Std.) 2-5/8"B ore
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14

Tecumseh 34852

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35545A)

$

$

Not available

14

Tecumseh 34853

Piston, Pin & Ring Set (.020" OS)
(Superseded to 35546)

$

$

Not available

14A

Tecumseh 32603B

Piston & Pin Ass'y. (Std.) (Incl. 16) (2-5/8")
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14A

Tecumseh 32604B

Piston & Pin Ass'y. (.010" OS) Incl. 16
(Superseded to 35545A)

$

$

Not available

14A

Tecumseh 32605B

Piston & Pin Ass'y. (.020" OS) Incl. 16
(Superseded to 35546)

$

$

Not available

15

Tecumseh 34854

Ring Set (Std.) (2-5/8" Bore)

$

$

Not available

15

Tecumseh 34855

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 34856

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. 18)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

21

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33553

Camshaft (MCR)
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 35261

Mounting Flange Gasket
(Superseded to 37609)

$2.99

$

In Stock, only 3 left!

0

25

Tecumseh 34831

Mounting Flange Assy. Incl. 26,27,28, 32,44,56
(Superseded to 34831A)

$85.99

$

Usually ships in 3-12 days

0

26

Tecumseh 26208

Oil Seal

$8.49

$

In Stock, only 1 left!

0

27

Tecumseh 28833

Drain Plug Gasket

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 30572

Plug, Oil drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

29

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

33

Tecumseh 30591

Gear Assy., Governor (Incl. 31)

$13.99

$

In Stock, only 1 left!

0

34

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

35

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 30589

Rod, Governor (Incl. 38)

$5.49

$

In Stock, only 1 left!

0

38

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

39

Tecumseh 31383A

Lever, Governor

$1.99

$

In Stock, only 3 left!

0

40

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

41

Tecumseh 34215

Breather Assy. (Incl. 42 & 43)

$

$

Not available

42

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

43

Tecumseh 32760A

Gasket, Breather

$3.99

$

Usually ships in 3-12 days

0

44

Tecumseh 9556

Plug, Pipe
(Superseded to 28534)

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 27234A

Valve Cover Gasket

$5.99

$

In Stock, only 1 left!

0

46

Tecumseh 32643A

Gasket, Cylinder head

$5.49

$

Usually ships in 3-12 days

0

48

Tecumseh 34690A

Gasket, Intake to cylinder

$4.49

$

In Stock, only 2 left!

0

49

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available

51

Tecumseh 32755

Cover, Valve spring box

$5.49

$

Usually ships in 3-12 days

0

52

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

53

Tecumseh 631935A

Nut, Carburetor bowl

$6.49

$

Usually ships in 3-12 days

0

54

Tecumseh 650841

Washer, SE brake

$

$

Not available
