SBV-SBV-402 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

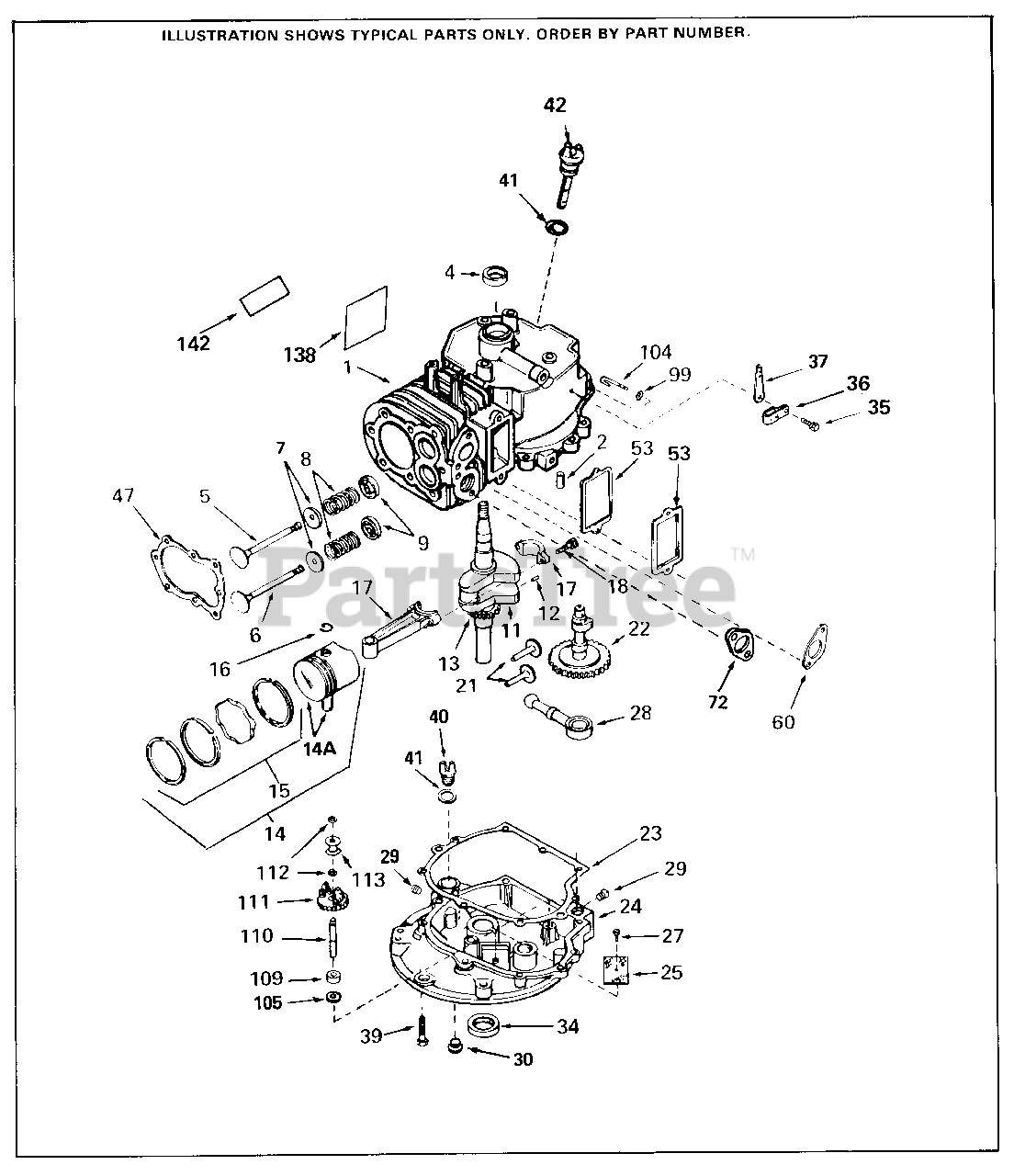

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 34913A

"Cylinder (Incl. 2 & 4) (2-5/8" Bore)

$268.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

4

Tecumseh 32630

Seal, Oil

$8.49

$

In Stock, only 2 left!

0

5

Tecumseh 32783

Intake Valve (Std.) (Incl. 9)

$16.99

$

In Stock, only 2 left!

0

5

Tecumseh 32784

Intake Valve (1/32" OS) (Incl. 9)

$69.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

In Stock, only 1 left!

0

6

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

7

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

9

Tecumseh 32581

Cap, Lower valve spring

$6.49

$

In Stock, Qty 10

0

11

Tecumseh 34958

Crankshaft

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Crankshaft gear only)

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27884

Crankshaft Gear Early production only

$11.99

$

In Stock, only 1 left!

0

14

Tecumseh 34531

Piston, Pin & Ring Set (Std.) 2-5/8"B ore

$

$

Not available

14

Tecumseh 34532

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

14

Tecumseh 35433

Exhaust Valve (1/32" OS)

$119.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 33312B

Piston & Pin Ass'y. (Std.)(Incl. 16) 2-5/8"

$

$

Not available

14A

Tecumseh 33313B

Piston & Pin Ass'y. (.010" OS) Incl. 16

$55.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 33314B

Piston & Pin Ass'y. (.020" OS) Incl. 16

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 34854

Ring Set (Std.) (2-5/8" Bore)

$

$

Not available

15

Tecumseh 34855

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 34856

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 31295C

Rod, Connecting (Incl. 18)

$

$

Not available

18

Tecumseh 650662C

Bolt, Connecting rod (2 pcs.)

$3.99

$

Usually ships in 3-12 days

0

21

Tecumseh 34034

Lifter, Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

22

Tecumseh 33157

Camshaft

$75.99

$

In Stock, only 1 left!

0

23

Tecumseh 30684

Gasket, Mounting flange

$4.49

$

In Stock, Qty 6

0

24

Tecumseh 31552C

Mounting Flange Incl. 29,30,34,40,41, 105,110

$

$

Not available

28

Tecumseh 31356

Pump Assy., Oil

$12.99

$

Usually ships in 3-12 days

0

29

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)red)

$1.99

$

In Stock, only 2 left!

0

29

Tecumseh 28582

Oil Drain Plug (Sq. hd., 1/4-18)As re q)

$1.99

$

In Stock, only 1 left!

0

30

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)ed)

$1.99

$

In Stock, only 2 left!

0

30

Tecumseh 28582

Oil Drain Plug (Sq. hd., 1/4-18)As re q)

$1.99

$

In Stock, only 1 left!

0

34

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, only 3 left!

0

35

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

36

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 31357

Lever, Governor

$1.99

$

In Stock, only 1 left!

0

39

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

40

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 8

0

41

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 3 left!

0

42

Tecumseh 34165

Dipstick, Oil (Incl. 41)

$9.49

$

In Stock, only 2 left!

0

47

Tecumseh 28938C

Gasket, Cylinder head

$9.99

$

In Stock, Qty 6

0

53

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 16

0

60

Tecumseh 27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 20+

0

99

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

104

Tecumseh 30669

Rod, Governor (Incl. 99)

$7.49

$

In Stock, only 1 left!

0

105

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

109

Tecumseh 31707A

Spacer, Governor gear (Incl. 105)

$1.99

$

In Stock, only 2 left!

0

110

Tecumseh 30668

Shaft, Mechanical governor

$1.99

$

Usually ships in 3-12 days

0

111

Tecumseh 30591

Gear Assy., Governor (Incl. 105)

$13.99

$

In Stock, only 1 left!

0

112

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

113

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

138

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available
