SBV-SBV-363C - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

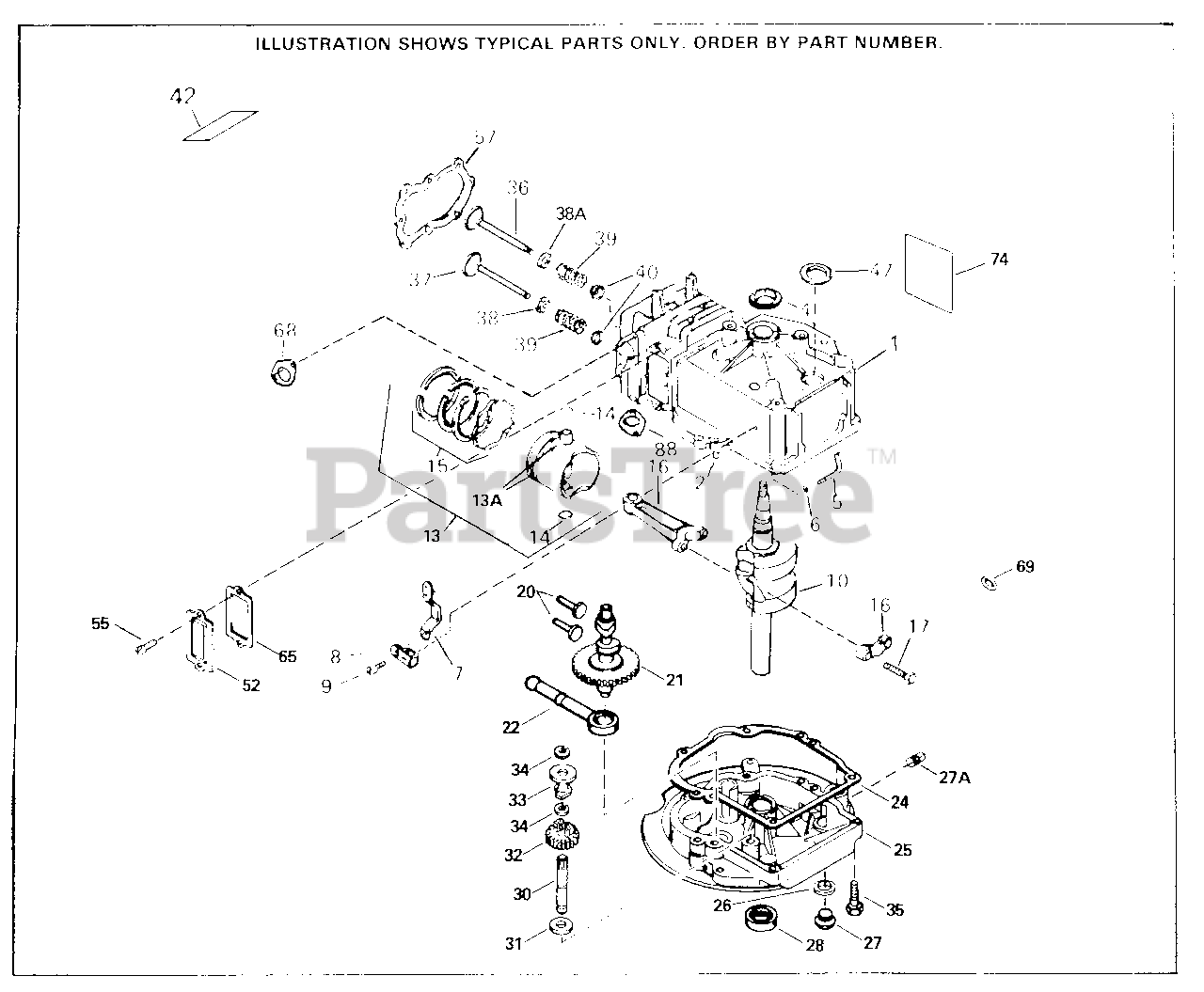

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 34429A

"Cylinder (Incl. 2 & 4) (2-5/8" Bore)

$

$

Currently unavailable

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 32600

Seal, Oil

$

$

Not available

5

Tecumseh 30589

Rod, Governor (Incl. 6)

$5.49

$

In Stock, only 1 left!

0

6

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

7

Tecumseh 32651

Lever, Governor

$

$

Not available

8

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 3 left!

0

9

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

10

Tecumseh 34440

Crankshaft
(Superseded to 37333)

$

$

Not available

13

Tecumseh 35545

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35545A)

$

$

Not available

13

Tecumseh 35546

Piston, Pin & Ring Set (.020" OS) (In cl. 41, 42 & 43)

$

$

Not available

13

Tecumseh 35544

Piston, Pin & Ring Set (Std.) 2-5/8"B ore
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

13A

Tecumseh 35541

Piston & Pin Assembly (Std.) (Incl. 4 3)-5/8")

$45.99

$

In Stock, only 1 left!

0

13A

Tecumseh 35542

Piston & Pin Assembly (.010" OS) (Inc l. 43)OS)

$

$

Not available

13A

Tecumseh 35543

Piston & Pin Assembly (.020" OS) (Inc l. 43)OS)

$

$

Not available

15

Tecumseh 35547

Ring Set (Std.) (2-5/8" Bore)
(Superseded to 35547A)

$

$

Not available

15

Tecumseh 35548

Ring Set (.010" OS)
(Superseded to 35548A)

$

$

Not available

15

Tecumseh 35549

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 30963B

Rod Assy., Connecting (Incl. 17)

$29.99

$

Usually ships in 3-12 days

0

17

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

20

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

21

Tecumseh 33553

Camshaft (MCR)
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

22

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 35261

Mounting Flange Gasket
(Superseded to 37609)

$2.99

$

In Stock, only 3 left!

0

25

Tecumseh 35651B

Flange Assy., Mounting Incl. 27, 28& 30
(Superseded to 37644)

$81.99

$

Usually ships in 3-12 days

0

26

Tecumseh 28833

Drain Plug Gasket ed)

$1.99

$

In Stock, only 1 left!

0

27

Tecumseh 30572

Plug, Oil drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

27A

Tecumseh 28534

Oil Drain Plug

$1.99

$

In Stock, only 4 left!

0

28

Tecumseh 26208

Oil Seal

$8.49

$

In Stock, only 1 left!

0

30

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

31

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 30591

Gear Assy., Governor (Incl. 31)

$13.99

$

In Stock, only 1 left!

0

33

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

34

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

35

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

36

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

36

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

37

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

37

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

38A

Tecumseh 35390

Seal Assy., Intake valve

$

$

Not available

38

Tecumseh 31671

Cap, Upper valve spring

$1.49

$

In Stock, only 2 left!

0

39

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

40

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, only 3 left!

0

42

Tecumseh 34028

Decal, Model & Serial number

$

$

Not available

47

Tecumseh 33735

Gasket, Breather

$1.99

$

Usually ships in 3-12 days

0

57

Tecumseh 33015A

Gasket, Cylinder head

$11.99

$

Usually ships in 3-12 days

0

65

Tecumseh 27234A

Valve Cover Gasket

$5.99

$

In Stock, only 1 left!

0

68

Tecumseh 32649A

Gasket, Intake pipe

$2.99

$

In Stock, Qty 18

0

68

Tecumseh 34690A

Gasket, Intake pipe

$4.49

$

In Stock, only 2 left!

0

69

Tecumseh 650841

Washer, S.E. brake

$

$

Not available

88

Tecumseh 30081A

Exhaust Gasket

$1.49

$

In Stock, only 2 left!

0
